Encore N150 User Manual

35
www.encore-usa.com

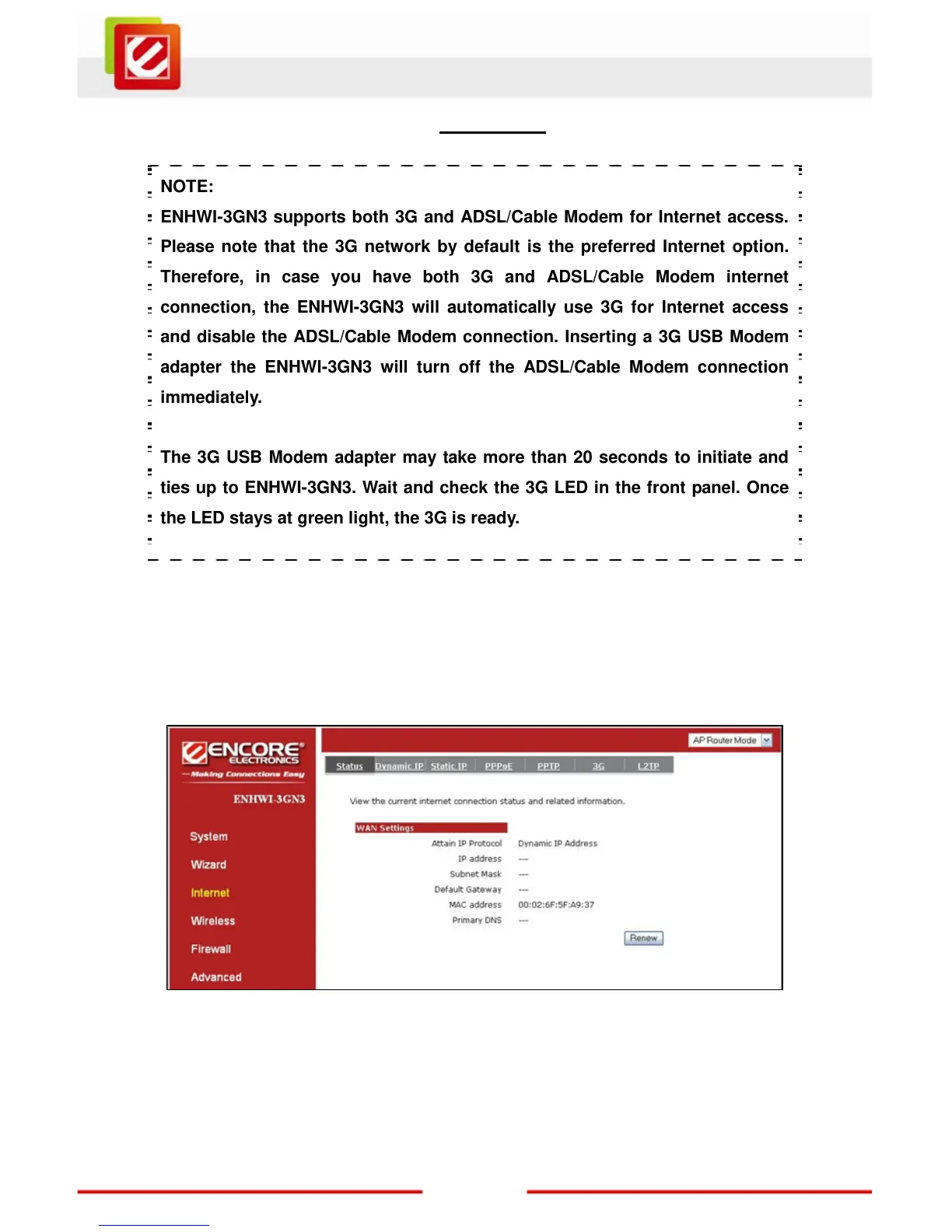

5.3 Internet
NOTE:
ENHWI-3GN3 supports both 3G and ADSL/Cable Modem for Internet access.
Please note that the 3G network by default is the preferred Internet option.
Therefore, in case you have both 3G and ADSL/Cable Modem internet
connection, the ENHWI-3GN3 will automatically use 3G for Internet access
and disable the ADSL/Cable Modem connection. Inserting a 3G USB Modem
adapter the ENHWI-3GN3 will turn off the ADSL/Cable Modem connection
immediately.
The 3G USB Modem adapter may take more than 20 seconds to initiate and
ties up to ENHWI-3GN3. Wait and check the 3G LED in the front panel. Once
the LED stays at green light, the 3G is ready.
¾ Status Tab
This page shows the current Internet connection type and status

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
