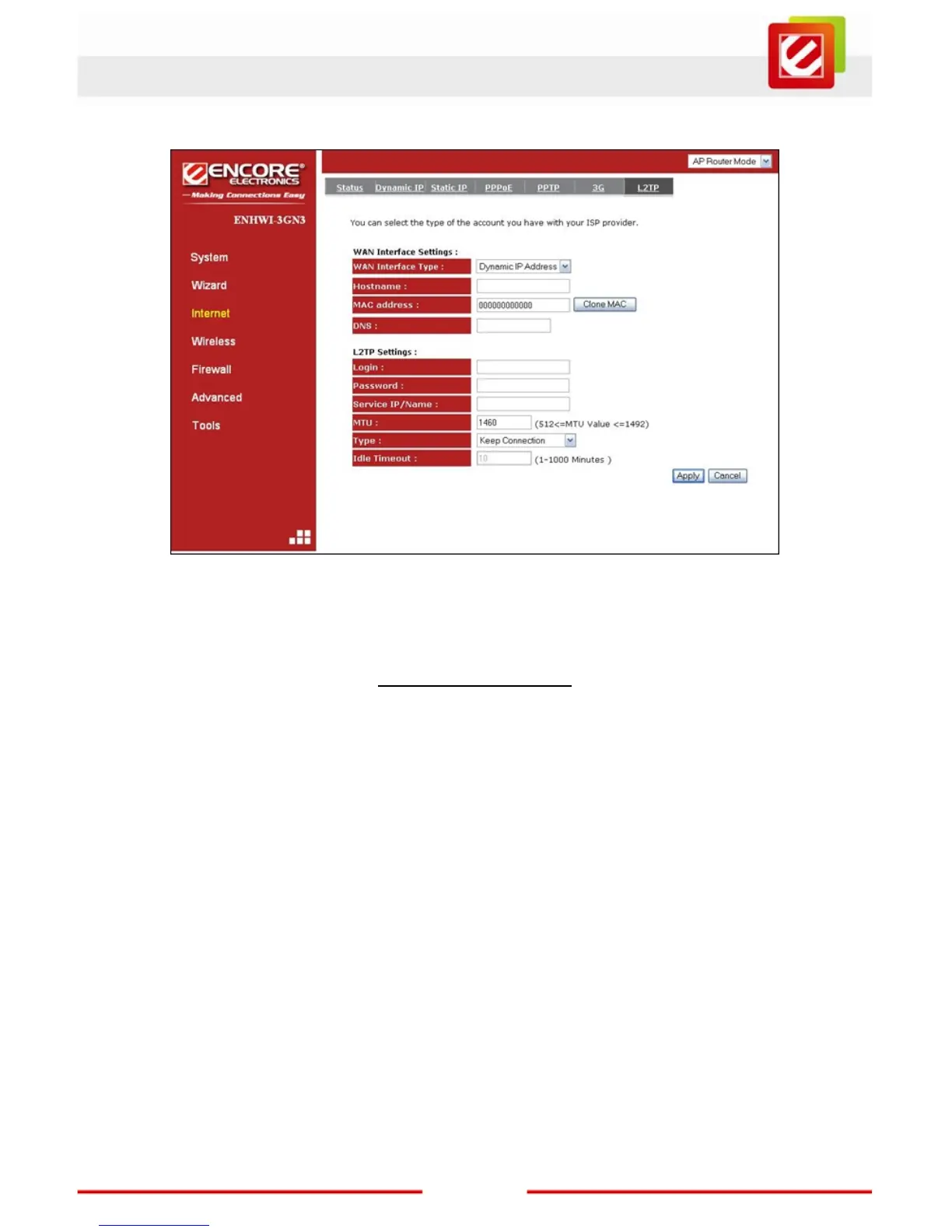

¾ Layer 2 Tunneling Protocol (L2TP) Tab
NOTE: Most of the data to be filled here will be supplied by your Internet Service Provider.
Call your ISP if you’re in doubt
WAN Interface Settings:
WAN Interface Type:
 Dynamic IP Address – Use the DHCP client function to retrieve WAN port IP
address, which will used to establish theL2TP tunnel. The router’s L2TP tunnel
address will be assigned after tunnel is established, which will be different from the
WAN IP address it gets earlier.
 Hostname : This is optional. If your ISP requires you to put a hostname, you may
enter it here.
 MAC address : Optional. This address will overwrite WAN port default MAC
address. If your ISP provides this MAC address, enter it here. You can also click
“Clone MAC” button to clone your PC’s MAC address to overwrite WAN port default
MAC address.
 DNS : Optional. If your ISP doesn’t provide you with a DNS server address
automatically through DHCP, enter a DNS server IP address here, if “Service
IP/Name” field is domain name in “L2TP Settings”.

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
