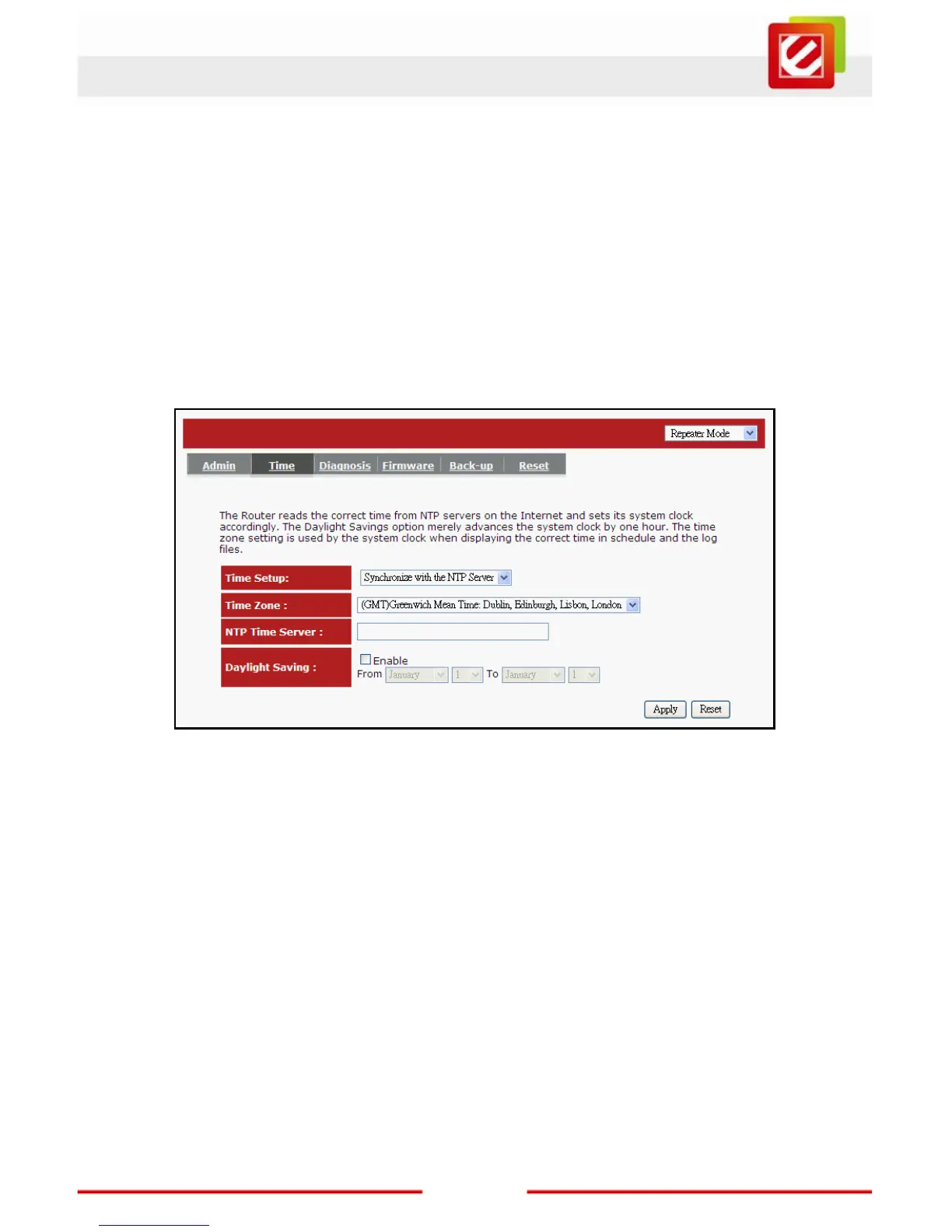

¾ Time Tab
The Time Zone allows your router to use external source to time synchronizations. This
affects other functions such as Event Log entries and Schedule settings that use time to
do its tasks.
How to Set up Time:
Synchronize with the NTP server:
Time Zone: Select the time zone of the country you are located. The router
will set its time based on your selection.
NTP Time Server: Enter the NTP Time Server address or URL here. This also accepts
local the IP address if the NTP Time Server is on the same LAN.
Daylight Savings: The router can also setup to automatically adjust the Daylight Savings
Time changes each time DST changes. To use this feature, click to put a checkmark on the
Enable box then enter the dates the DST would starts and ends.
Click <Apply> at the bottom of the screen to save the above configurations

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
