Encore N150 User Manual

48
www.encore-usa.com

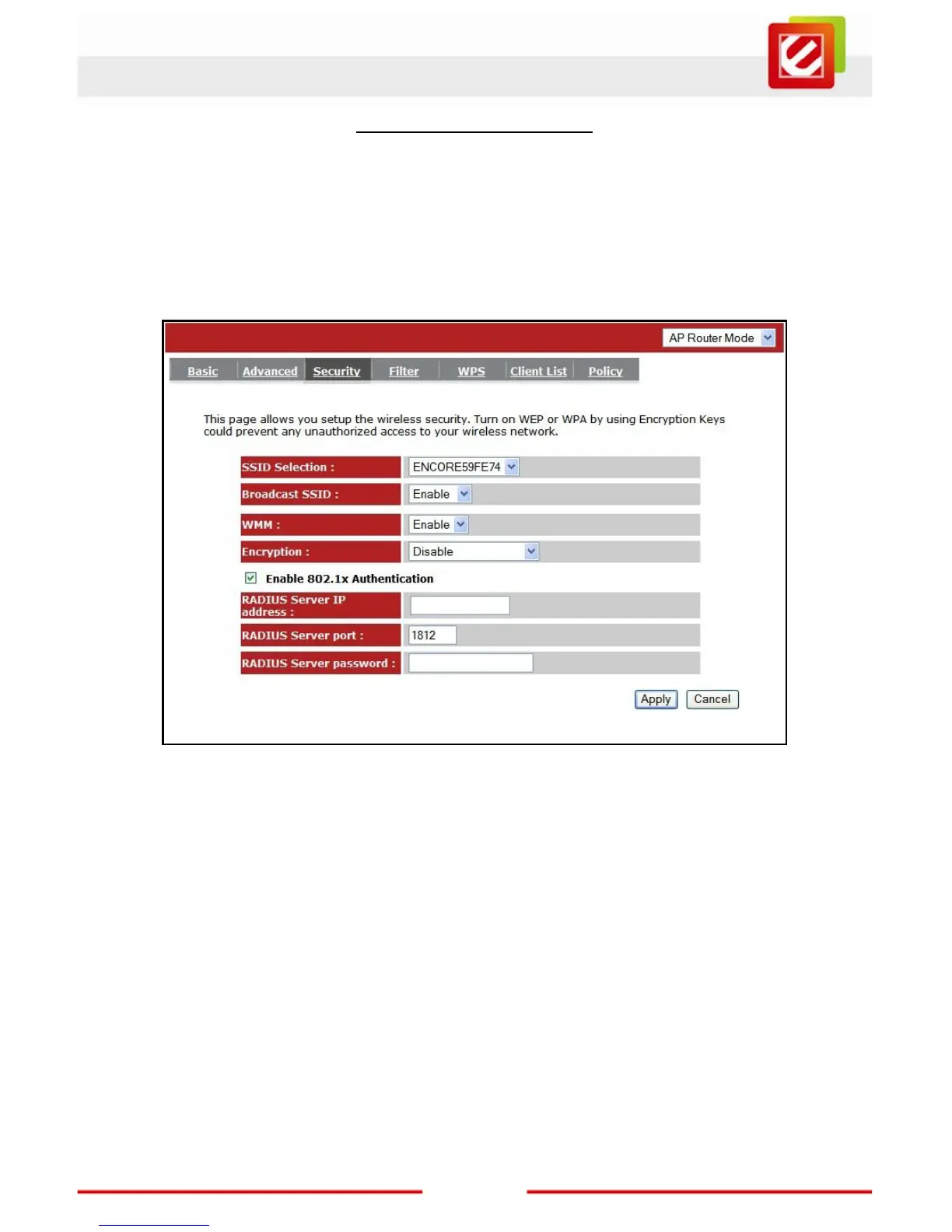

Enable 802.1x Authentication
IEEE 802.1x is an authentication protocol using RADIUS server. When this is Enabled,
every LAN user must use an account to login to this Access Point before accessing the
wireless LAN. The authentication is processed by a RADIUS server. This mode only
authenticates users by IEEE 802.1x, but it does not encrypt the data during communication.

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
