Encore N150 User Manual

5
www.encore-usa.com

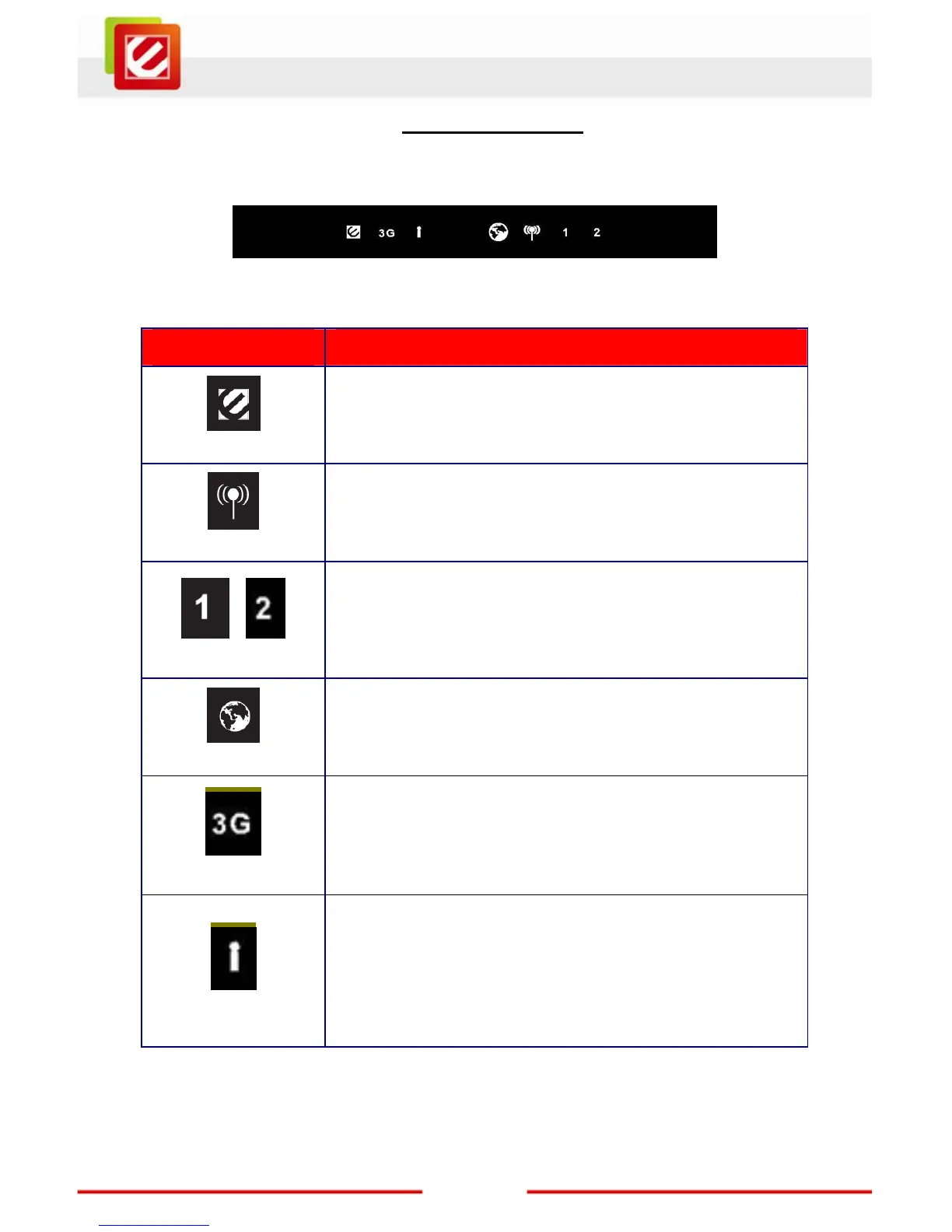

1.4 Product Layout
Front Panel View
Front Panel LED Assignments and Description Chart:
LED Lights
Description
POWER
Lights up in Red when powered ON. Blinks on TEST/RESET
WLAN
Lights up in Green when Wireless LAN is enabled. Blinks on
traffic
LAN Ports
Blinks in Green on data traffic on LAN Ports 1 and 2. Stays in
Green when idle
WAN
Lights up in Green when WAN port is in use
3G Connection
Lights up in Green when 3G USB Modem is detected and
use for internet connection
Internet Connection
Lights up and stays in Green when internet connection is
detected thru either in 3G or WAN ports (WAN and 3G don’t
work at the same time, 3G deactivates WAN connection
when both are detected, then this LED lights up for 3G if that
happens)

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
