Encore N150 User Manual

45
www.encore-usa.com

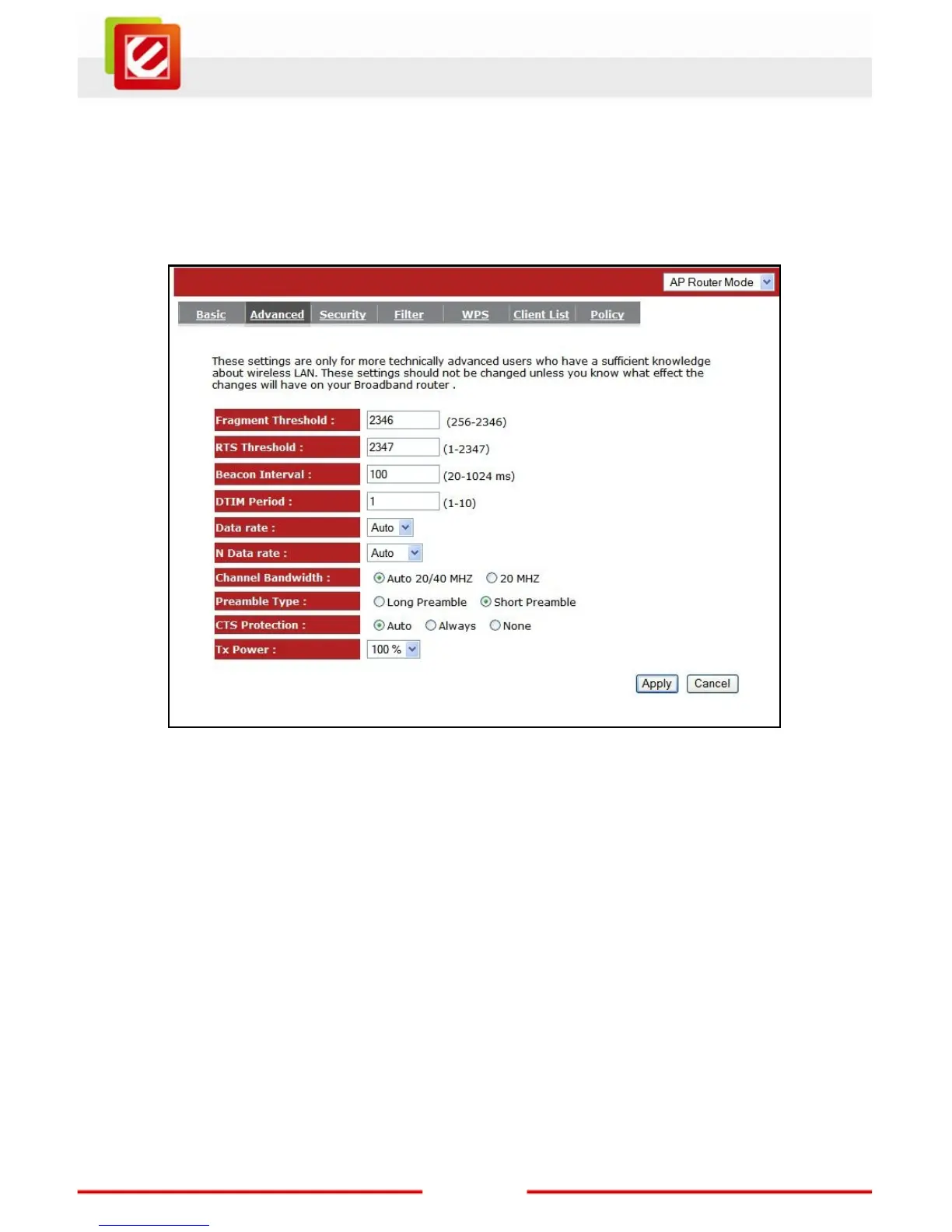

¾ Advanced Tab
On this tab you can set the advanced wireless settings. If you’re in doubt what to enter or
use here, leave these settings as it is. This is for advance users only. Wrong parameters
can make the router un-operational.
Fragment Threshold:
Default value is 2346.Specifies the maximum size of a packet during the fragmentation of
data to be transmitted. If you set this value too low, it will result in a bad performance.
RTS Threshold:
Default value is 2347. When the packet size is smaller than the RTS threshold,
the wireless router will not use the RTS/CTS mechanism to send this packet.
Beacon Interval:
Default value is 100. This is the interval of time that this wireless router
broadcasts a beacon. A Beacon is used to synchronize the wireless network.

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
