Encore N150 User Manual

74
www.encore-usa.com

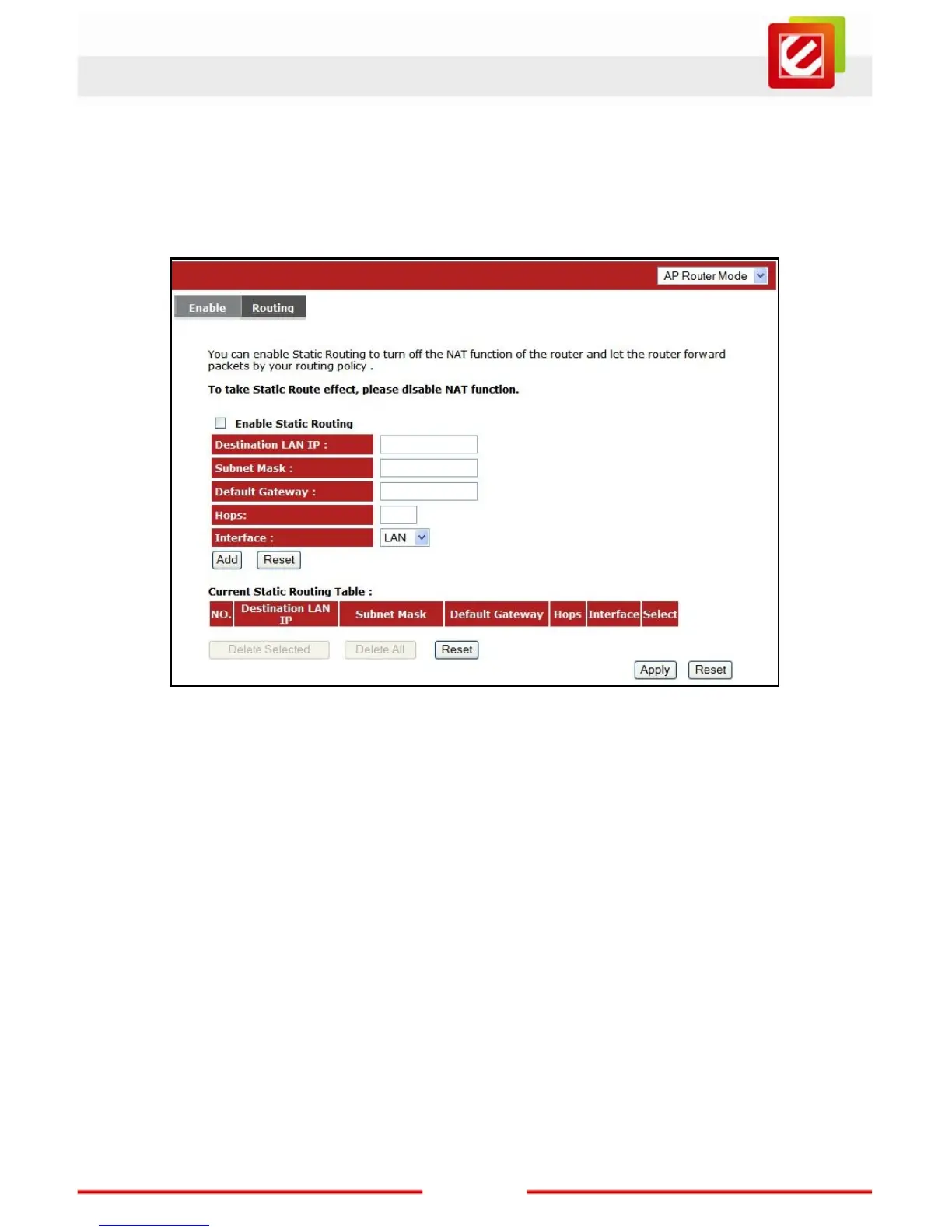

¾ Routing Tab
You can set to Enable Static Routing to let the router forward packets using your routing
policy.
Destination LAN IP: Specify the destination LAN IP address of static routing rule.
Subnet Mask: Specify the Subnet Mask of static routing rule.
Default Gateway: Specify the default gateway of static routing rule.
Hops: Specify the Max Hops number of static routing rule.
Interface: Specify the Interface of static routing rule.

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
