63
www.encore-usa.com

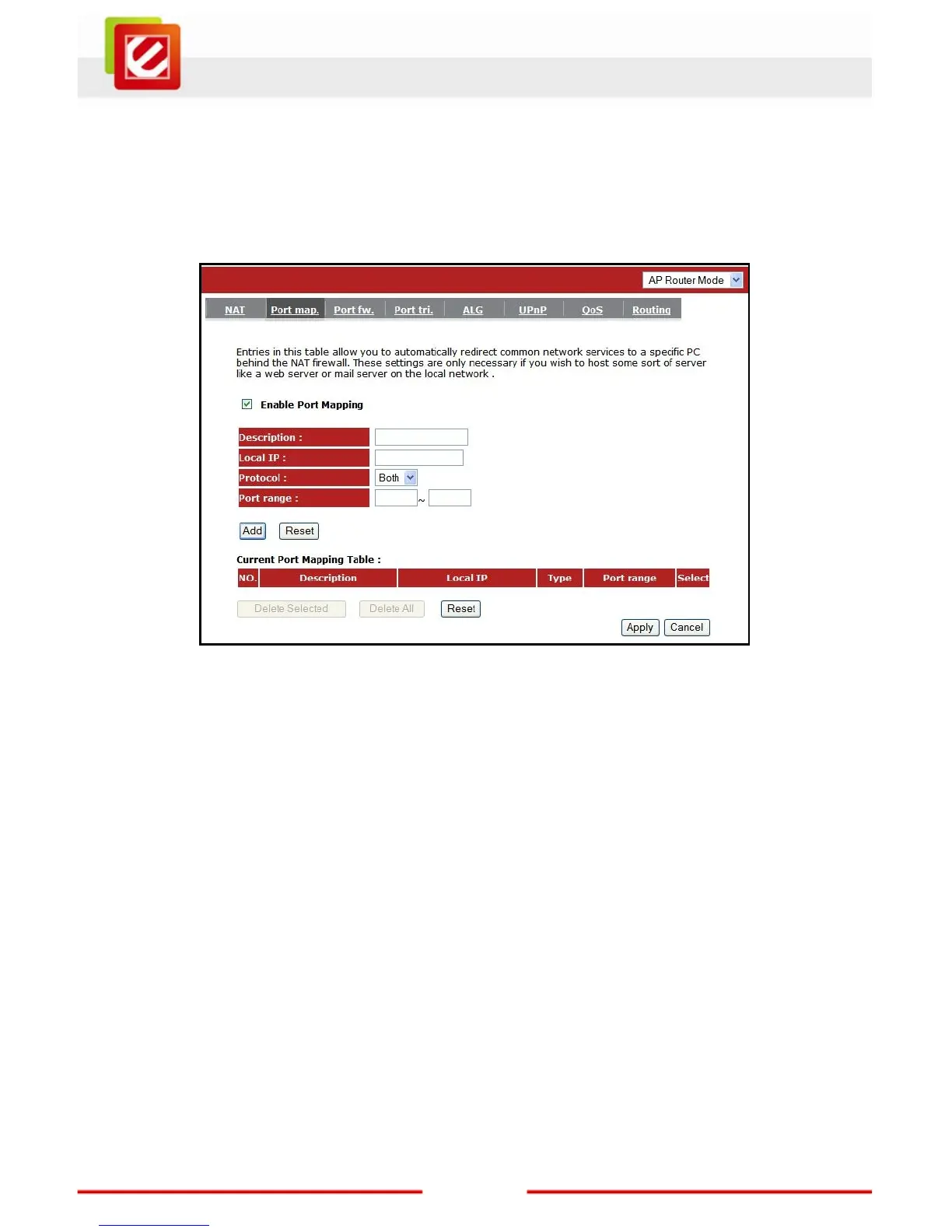

¾ Port Mapping Tab
Port Mapping allows you to re-direct a particular range of service port numbers (from the
Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the
router NAT firewall.
Enable Port Mapping: Enable or disable port mapping function.
Description: description of this setting.
Local IP: This is the local IP of the server behind the NAT firewall.
Protocol: This is the protocol type to be forwarded. You can choose to forward “TCP” or
UDP” packets only, or select “BOTH to forward both “TCP” and “UDP
packets.
Port Range: The range of ports to be forward to the private IP.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Encore N150 and is the answer not in the manual?

Encore N150 Specifications

General IconGeneral
Ethernet LANYes
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivityIEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
InterfaceRJ-45, USB
Indoor range100m
Outdoor range300m
Frequency range2.400 - 2.484 GHz
Power supply typeDC
Dimensions (WxDxH)97 x 128 x 25 mm
Power requirements12V
USB ports quantity0
WLAN data transfer rates supported157.5 Mbit/s
Non-operating relative humidity (non-condensing)15 - 95 %
Channels quantity13 channels
Media access protocolCSMA/CA, ACK
Supported network protocolsTCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity1
Antenna gain level (max)2 dBi
Ethernet LAN (RJ-45) ports4
CertificationFCC, CE, RoHS
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 45 °C
