61
www.encore-usa.com

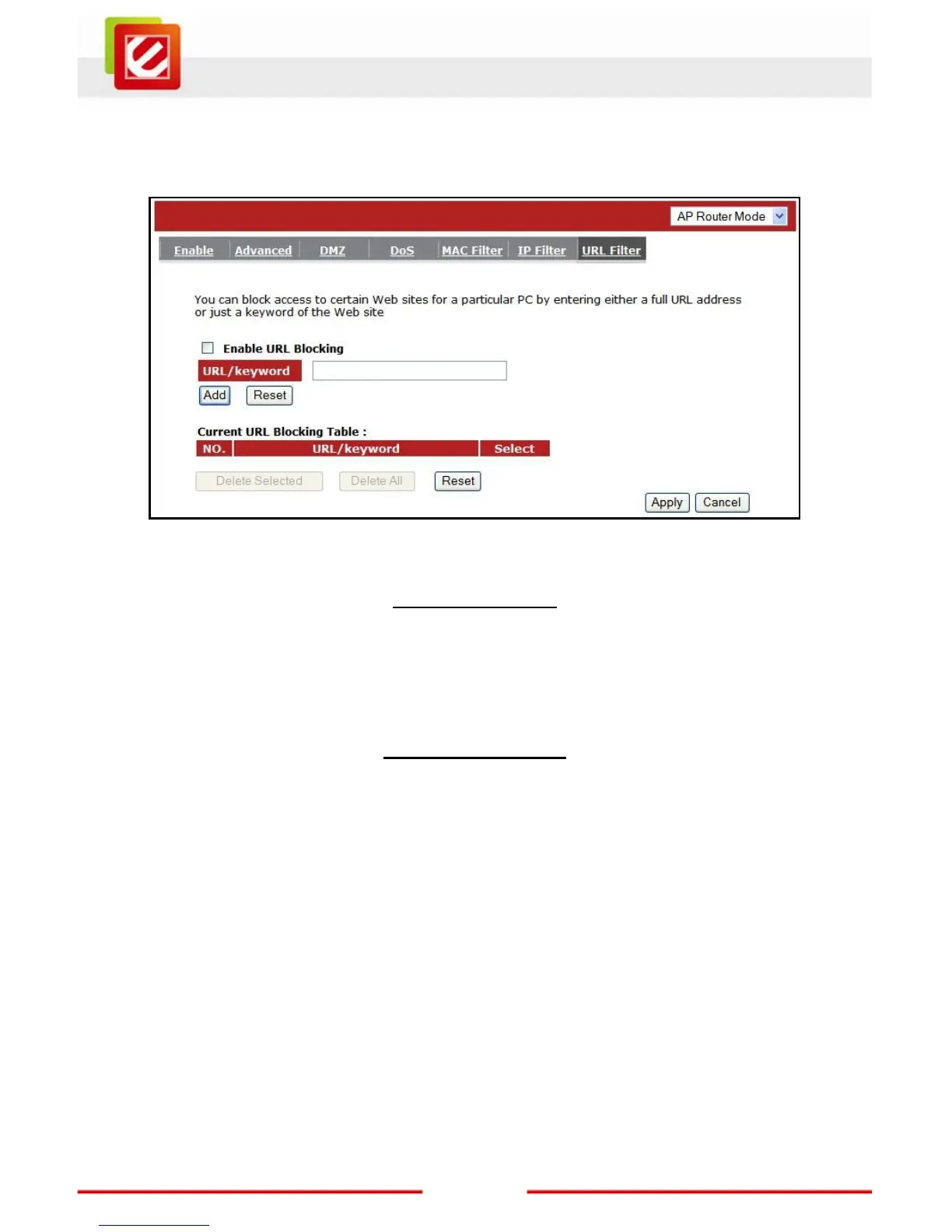

¾ URL Filter Tab
You can block access to some Web sites from particular PCs by entering a full URL
address or just keywords of the Web site.
Enable URL Blocking: Enable or disable URL Blocking
Add a URL Keyword
Fill-in the “URL/Keyword” field with your url / keyword, and then click <Add>. You can enter
the full URL address or the keyword of the web site you want to block. If you happen to
make a mistake and want to retype again, just click "Reset" and the field will be cleared.
Remove URL Keyword
If you want to remove some URL keywords from the "Current URL Blocking Table", select
the URL keyword you want to remove in the table and then click <Delete Selected>. If
you want remove all URL keywords from the table, click <Delete All> button. If you want to
clear the selection and re-select again, just click <Reset>.
Click <Apply> to save the above configurations

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Encore N150 and is the answer not in the manual?

Encore N150 Specifications

General IconGeneral
Ethernet LANYes
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivityIEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
InterfaceRJ-45, USB
Indoor range100m
Outdoor range300m
Frequency range2.400 - 2.484 GHz
Power supply typeDC
Dimensions (WxDxH)97 x 128 x 25 mm
Power requirements12V
USB ports quantity0
WLAN data transfer rates supported157.5 Mbit/s
Non-operating relative humidity (non-condensing)15 - 95 %
Channels quantity13 channels
Media access protocolCSMA/CA, ACK
Supported network protocolsTCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity1
Antenna gain level (max)2 dBi
Ethernet LAN (RJ-45) ports4
CertificationFCC, CE, RoHS
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 45 °C
Weight and Dimensions IconWeight and Dimensions
Weight- g
