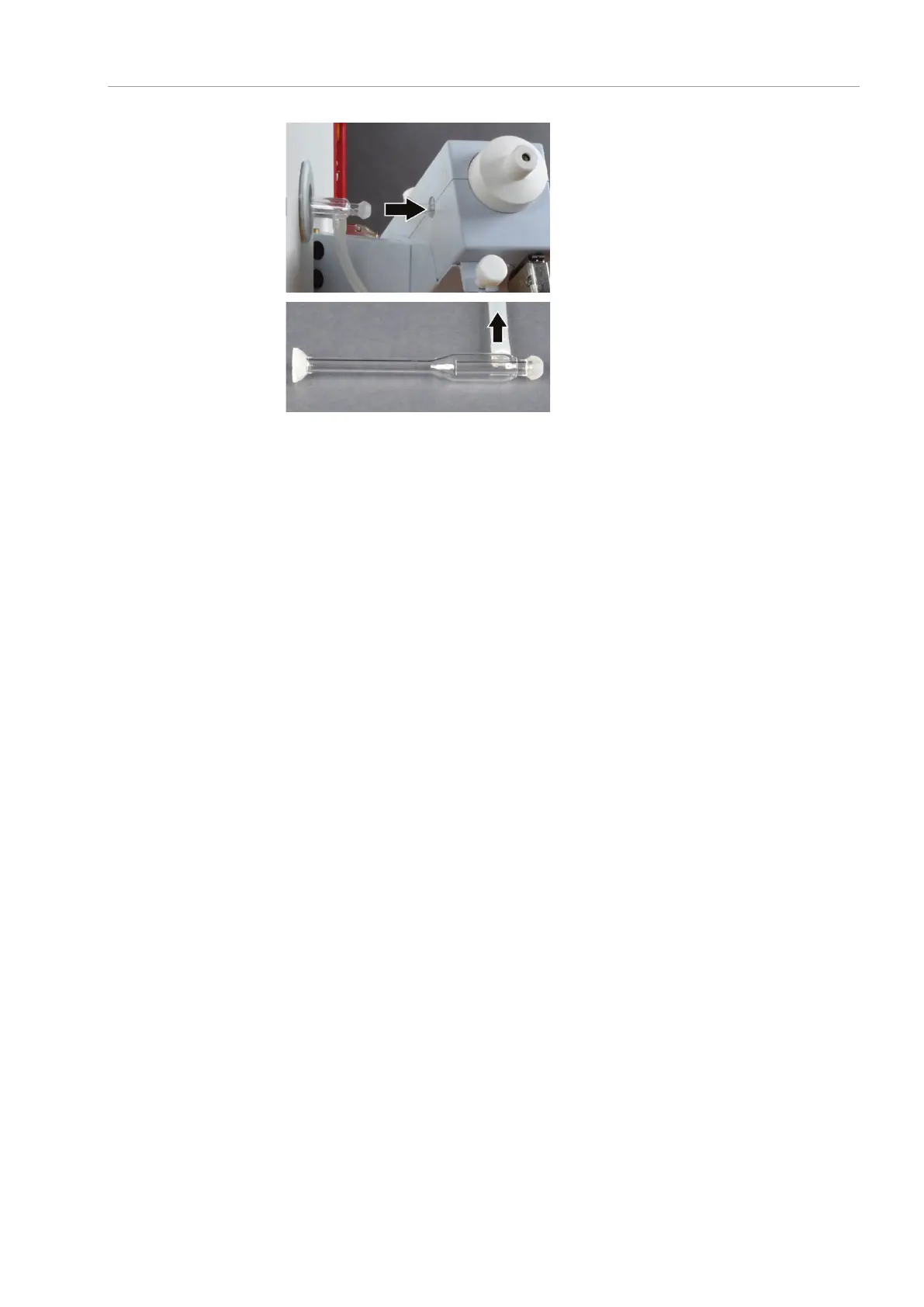

6. Remove the transfer tube via the

opening in the side wall of the torch

compartment.

7. With the transfer tube for Aerosol

Dilution: Remove the tubing from the

transfer tube.

1. Place the transfer tube in an ultrasonic bath containing a neutral surfactant for 5

to 15 minutes. Alternatively, soak the transfer tube overnight in in strong acid or

detergent.

2. When the transfer tube is clean, remove it from the bath and rinse it thoroughly

with ultrapure water.

3. Let the transfer tube dry before reinstalling it in the sample introduction system

(see section "Installation of the transfer tube" p. 47).
