Installation and commissioning PlasmaQuant MS product family

7. Close and lock the clamp arm: push the locking knob down and

turn it 90-degrees until it clicks in place.

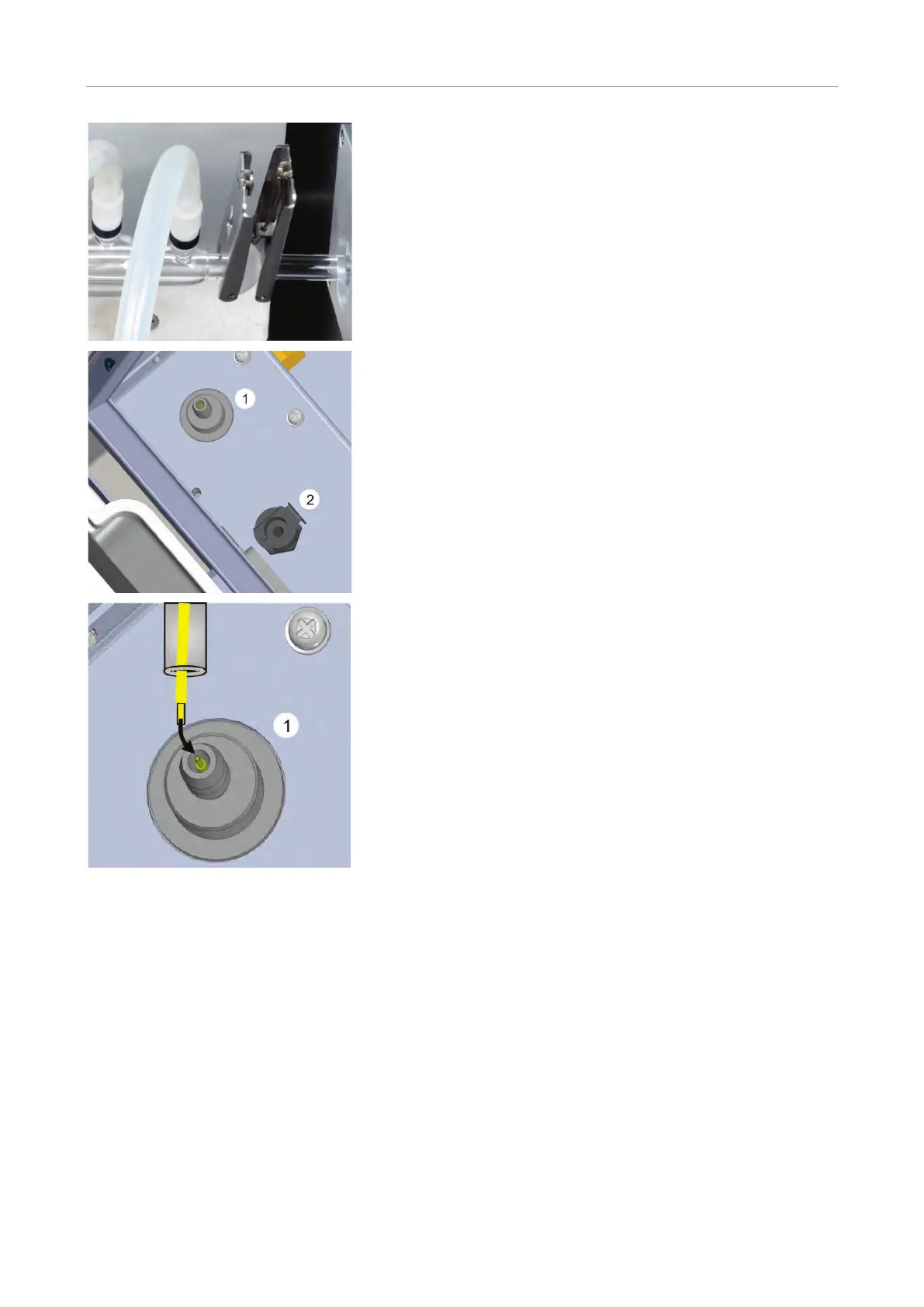

Connect the torch to the glass transfer tube with the glassware

clamp.

9. Connect the plasma gas line (1) and the auxiliary gas line (2) to

the fittings in the plasma compartment. The gas lines should not

intersect when installed correctly.

Plasma gas line:

 Carefully push the ignition wire connector onto the pin

inside the plasma gas supply fitting. Make sure the

connector is oriented straight up on the pin, so it does not

bind on the tubing.



Gently push the plasma gas tubing down over the outside of the

barbed fitting, taking care not to bind or jam the ignition wire.

Auxiliary gas line:



Connect the auxiliary gas line to the quick-connect snap fitting.
