3.3.5 Wall and pipe mounting (optional)
Endress+Hauser offers a mounting bracket for installing on pipes or walls (for pipes from 1
1/4
" up
to 2" diameter).

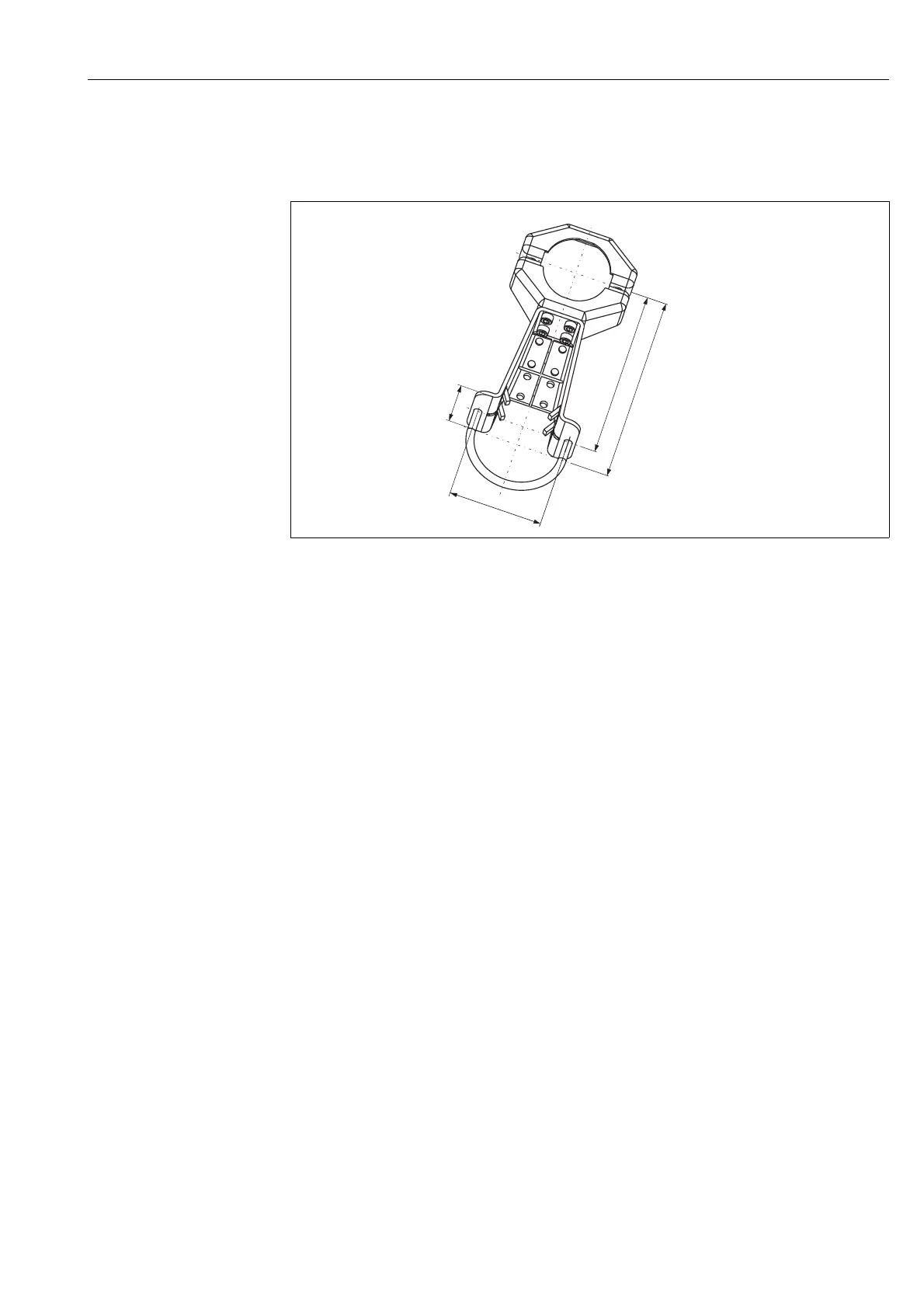

P01-xMx5xxxx-06-xx-xx-xx-001
Please note the following when mounting:
• Devices with capillary tubes: mount capillaries with a bending radius 100 mm (3.94 in).
• In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque
of at least 5 Nm (3.69 lbs ft).
52
140
122
70
