Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 27

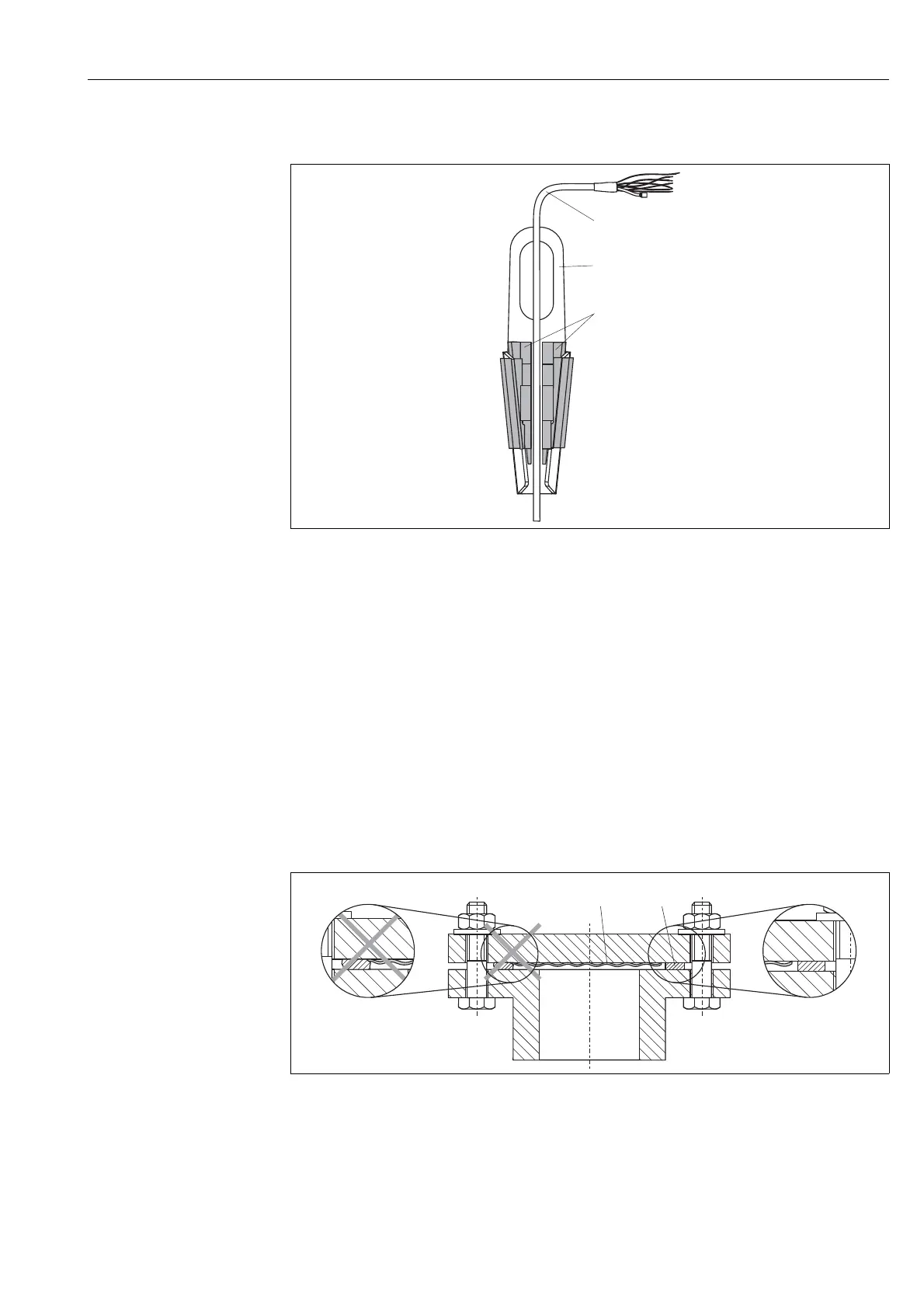

3.5.4 Mounting the FMB53 with a mounting clamp
P01-FMX21xxx-17-xx-xx-xx-004
Fig. 16: Mounting with a mounting clamp
1 Extension cable
2 Mounting clamp
3 Clamping jaws
Mounting the mounting clamp:
1. Mount the mounting clamp (item 2). When selecting the place to fix the unit, take the weight
of the extension cable (item 1) and the device into account.
2. Raise the clamping jaws (item 3). Position the extension cable (item 1) between the clamping
jaws as illustrated in Figure 16.
3. Hold the extension cable in position (item 1) and push the clamping jaws (item 3) back down.
Tap the clamping jaws gently from above to fix them in place.
3.5.5 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002
Fig. 17: Mounting the versions with a flange
1 Process isolating diaphragm
2Seal
#
Warning!
The seal is not allowed to press against the process isolating diaphragm as this could affect the
measurement result.
