Deltabar PMD75B HART Installation
Endress+Hauser 21
• If a valve manifold is used, its dimensions should also be taken into consideration
• Bracket for wall and pipe mounting including retaining bracket for pipe mounting and
two nuts
• The material of the screws used to secure the device depends on the order code
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.
5.2.8 Wall and pipe mounting with a manifold (optional)
• Mount the measuring device on a shut-off device, e.g. manifold or shutoff valve
• Use the bracket provided; this makes device disassembly easier
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.
5.2.9 Assembling and mounting the separate housing

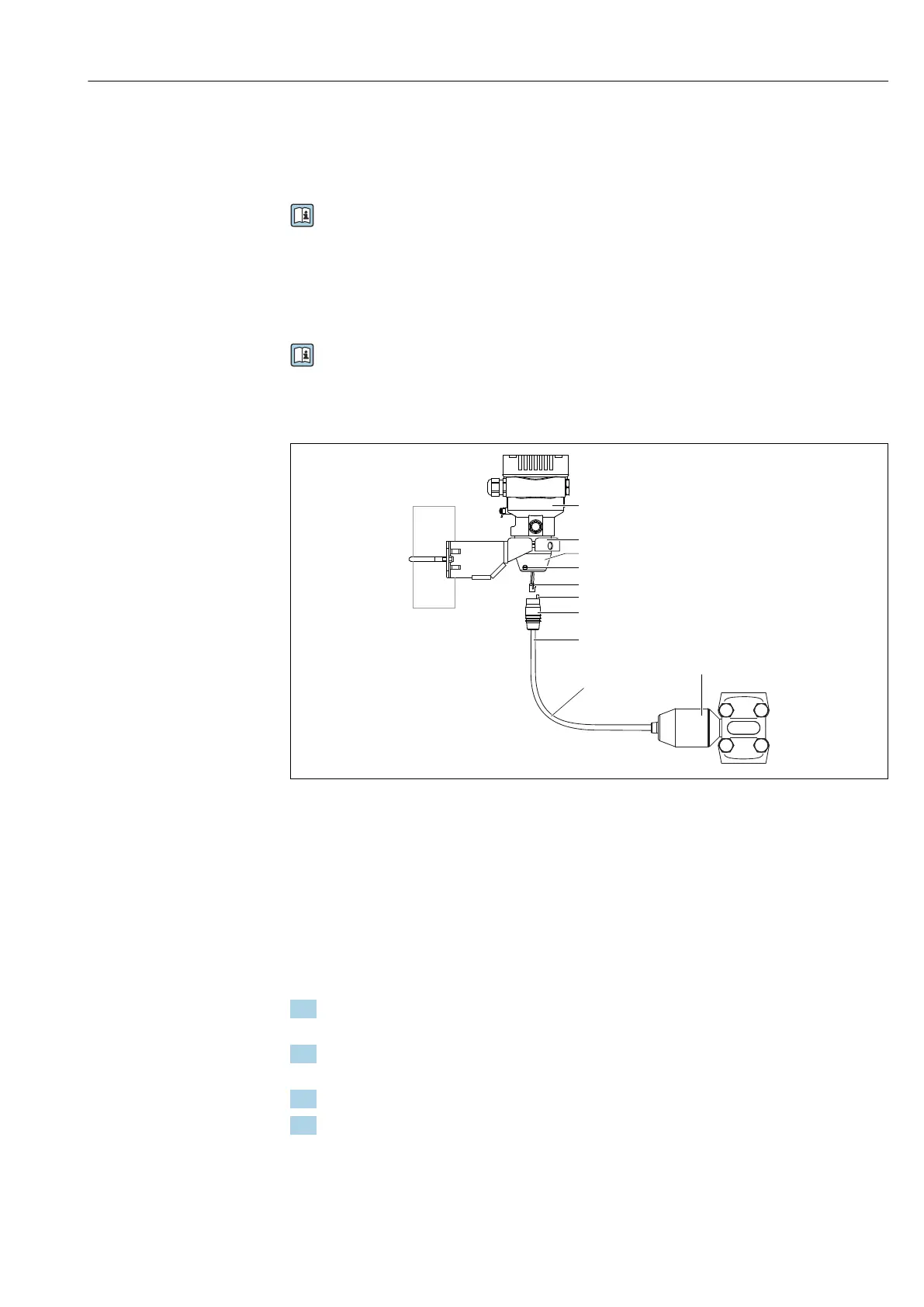

A0038725
Unit of measurement mm (in)
1 Housing mounted with housing adapter, included
2 Mounting bracket provided, suitable for pipe and wall mounting (for pipe diameters from 1 ¼" up to 2")
3 Locking screw
4 Plug
5 Pressure compensation
6 Cable with connection jack
7 In the separate housing version, the sensor is delivered with the process connection and cable already
mounted.
Assembly and mounting
1. Insert the connector (item 4) into the corresponding connection jack of the cable
(item 6).
2. Insert the cable with the socket (item 6) into the housing adapter (item 1) to the end
stop.
3. Tighten the locking screw (item 3).
4. Mount the housing on a wall or pipe with the mounting bracket (item 2). When
mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm (3.69 lbf ft). Mount the cable with a bending radius (r) ≥
120 mm (4.72 in).
