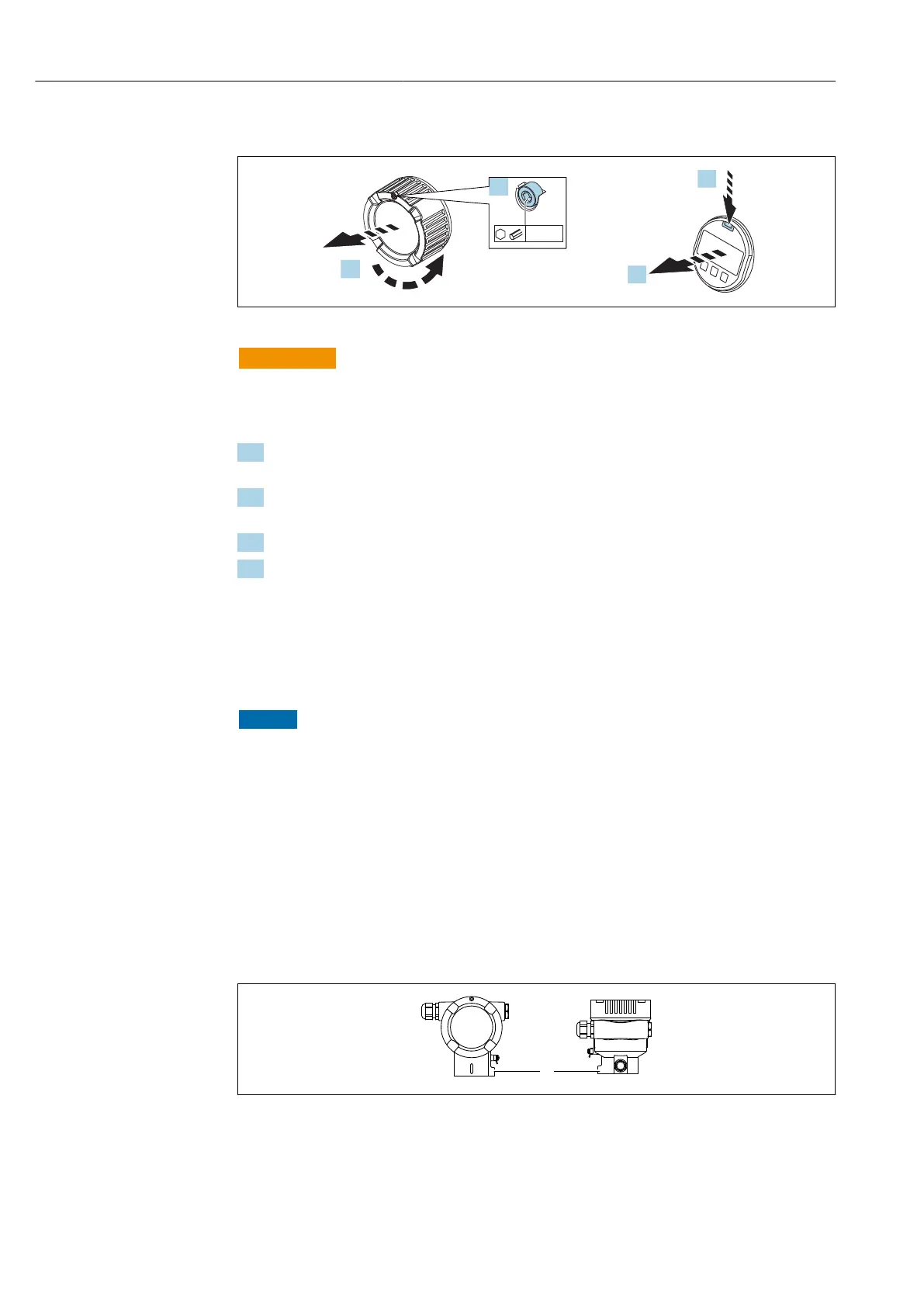

Installation Deltabar PMD75B HART
22 Endress+Hauser
5.2.10 Turning the display module
2.
1.
4 mm
3.
4.
A0038224
L
WARNING
Supply voltage switched on!
Risk of electric shock and/or explosion!
Switch off the supply voltage before opening the measuring device.
1. If fitted: release the screw of the cover lock for the electronics compartment cover
using the Allen key.
2. Unscrew the electronics compartment cover from the transmitter housing and check
the cover seal.
3. Press the release mechanism and remove the display module.
4. Turn the display module to the desired position: maximum 4 × 90 ° in each direction.
Fit the display module on the electronics compartment in the desired position until it
clicks into place. Screw the electronics compartment cover back onto the transmitter
housing. If fitted: tighten the screw of the cover lock using the Allen key
0.7 Nm (0.52 lbf ft) ±0.2 Nm (0.15 lbf ft).
5.2.11 Closing the housing cover
NOTICE
Thread and housing cover damaged from dirt and fouling!
Remove fouling (e.g. sand) on the thread of the cover and housing.
If you continue to encounter resistance when closing the cover, check the thread again
for fouling.
5.2.12 Turning the housing
The housing can be rotated up to 380° by loosening the Allen screw.
Your benefits
Easy mounting due to optimum alignment of housing
Good, accessible device operation
Optimum readability of the onsite display (optional)
1
A0043807
