Commissioning Deltabar PMD75B HART
48 Endress+Hauser
Level measurement

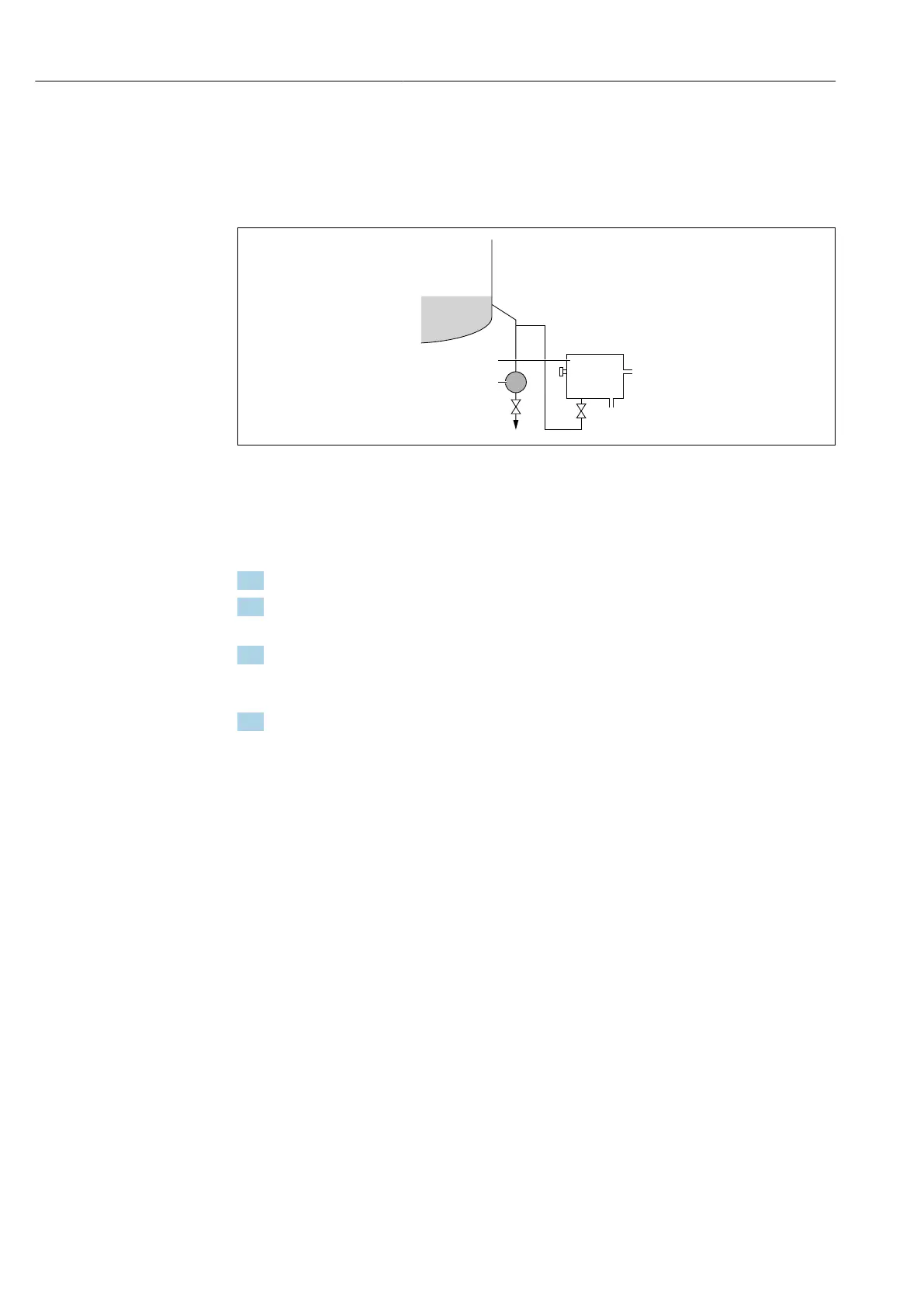

Open vessel
Before the device is adjusted, the pressure piping must be cleaned, where necessary, and
filled with fluid.
+
A
–
P2
+
P1
6
p
atm
II
I
B
A0030038
I Measuring device
II Separator
6 Vent valve on measuring device
A Shutoff valve
B Drain valve
1. Fill vessel to a level above the lower tap.
2. Fill measuring system with fluid.
 Open A (shutoff valve).
3. Vent the measuring device.
 Open 6 briefly, then close it again (fill the measuring device completely with fluid
and remove air).
4. Set measuring point to operation.
 Now:
B and 6 are closed.
A is open.
