Closed vessel
Before the device is adjusted, the pressure piping must be cleaned, where necessary, and
filled with fluid.
B
A
II
I II
I II
–
P2
+
P1
6
7
3
2 4
I
1 5
+
–
A0030039

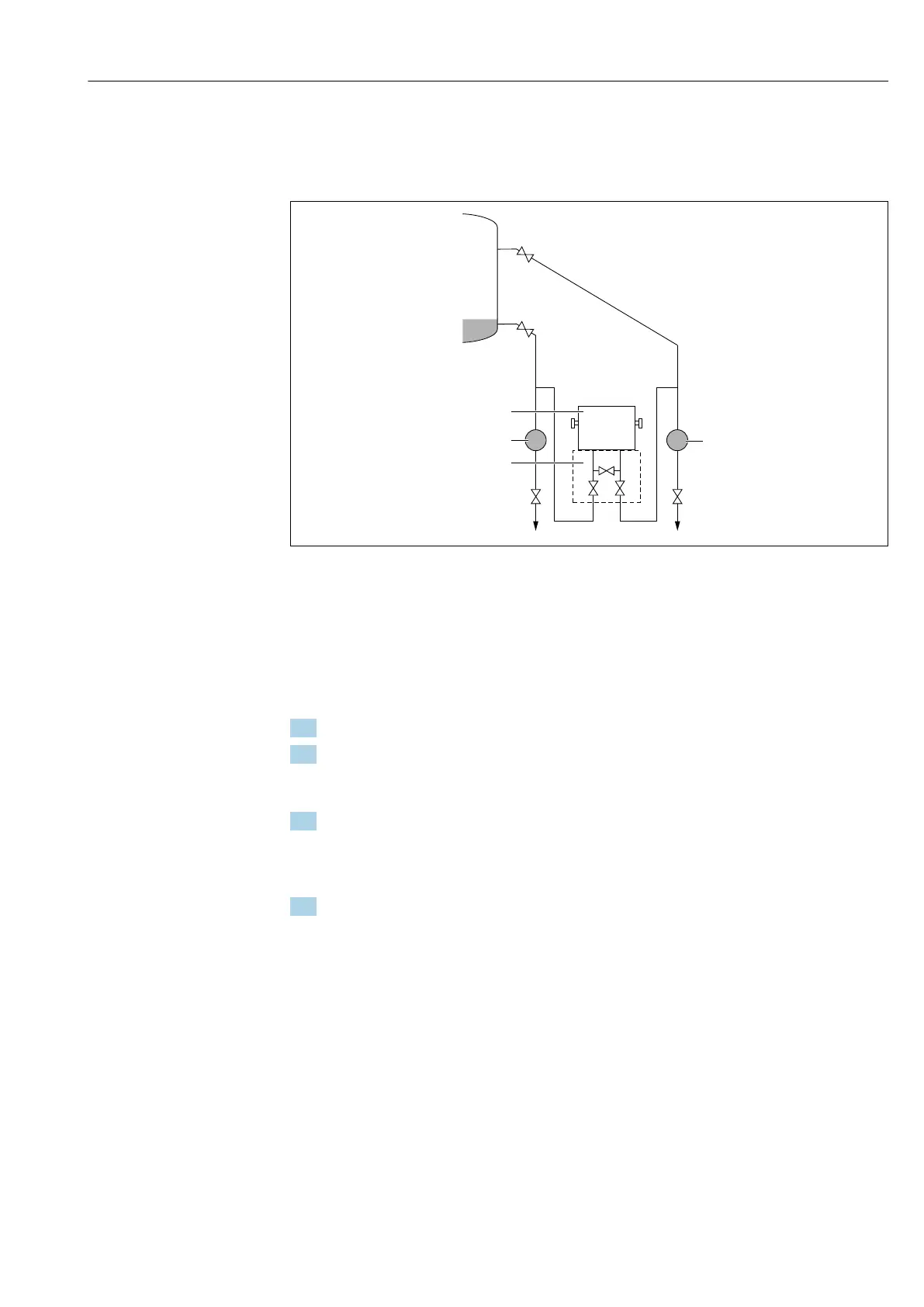

I Measuring device
II Three-valve manifold
III Separator
1, 5 Drain valves
2, 4 Inlet valves
3 Equalizing valve
6, 7 Vent valves on the measuring device
A, B Shut-off valves
1. Fill vessel to a level above the lower tap.
2. Fill measuring system with fluid.
 Close 3 (separate high-pressure side and low-pressure side).
Open A and B (shutoff valves).
3. Vent high-pressure side (empty low-pressure side if necessary).
 Open 2 and 4 (introduce fluid on high-pressure side).
Open 6 and 7 briefly, then close them again (fill the high-pressure side
completely with fluid and remove air)
4. Set measuring point to operation.
 Now:
3, 6 and 7 are closed.
2, 4, A and B are open.
