Installation Ecograph T, RSG35
12 Endress+Hauser
A0019301

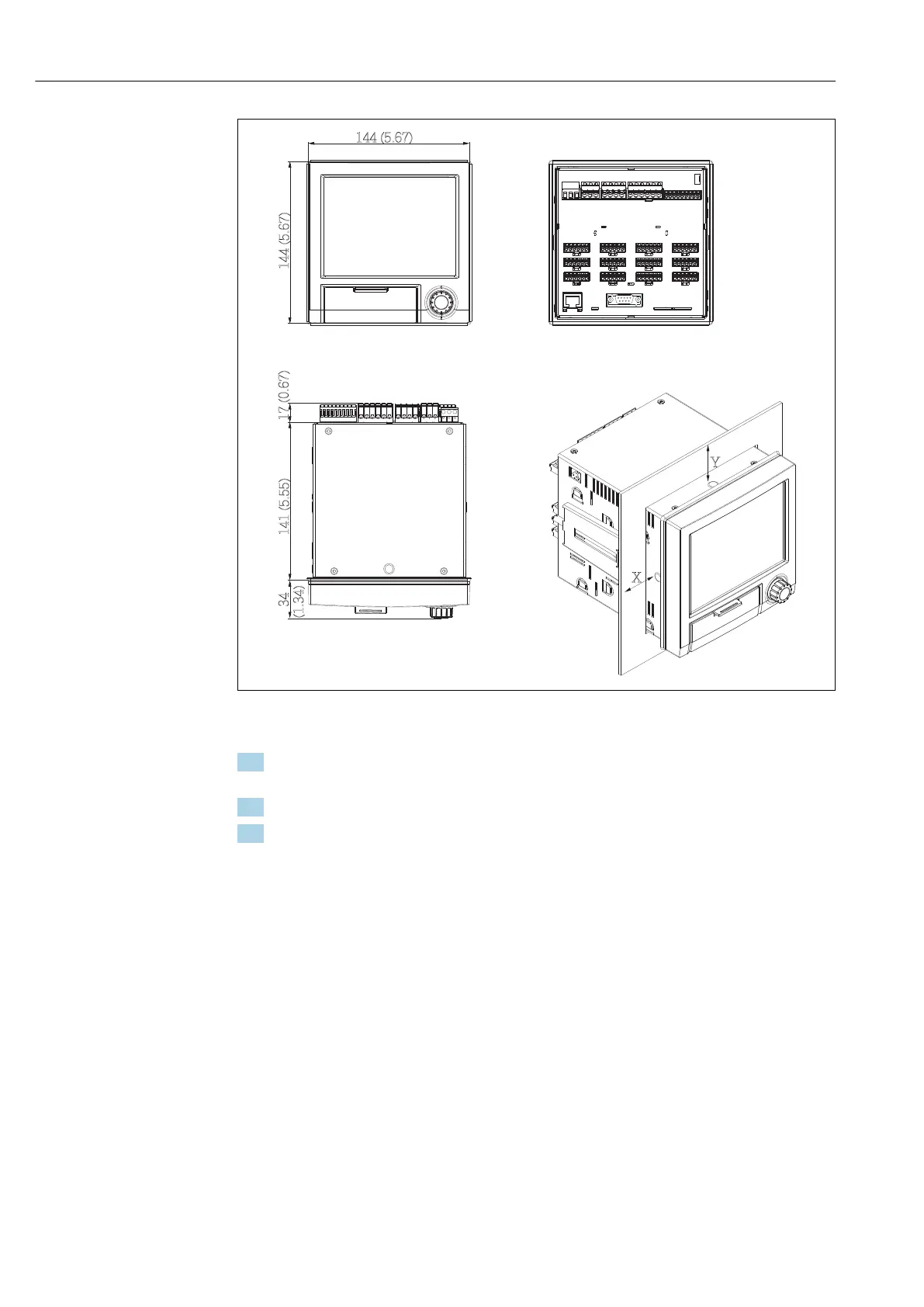

 2 Panel mounting and dimensions in mm (Inch)
1. Push the device through the panel cutout from the front. To avoid heat buildup,
maintain a distance of > 15 mm (>0.59 in) from walls and other devices.
2. Hold the device level and hang the fastening clips in the openings (1 x left, 1 x right).
3. Evenly tighten the screws on the fasting clip using a screwdriver to guarantee a
secure seal to the control panel (torque 100 Ncm).
5.3 Post-mounting check
Is the sealing ring undamaged?
Does the seal run all around the housing collar?
Are the threaded rods properly tightened?
Is the device fixed firmly in the center of the control panel cutout?
