Technical data Ecograph T, RSG35
72 Endress+Hauser
144 (5.67)
144 (5.67)
141 (5.55)
17 (0.67)
34
(1.34)
X
Y
A0019301

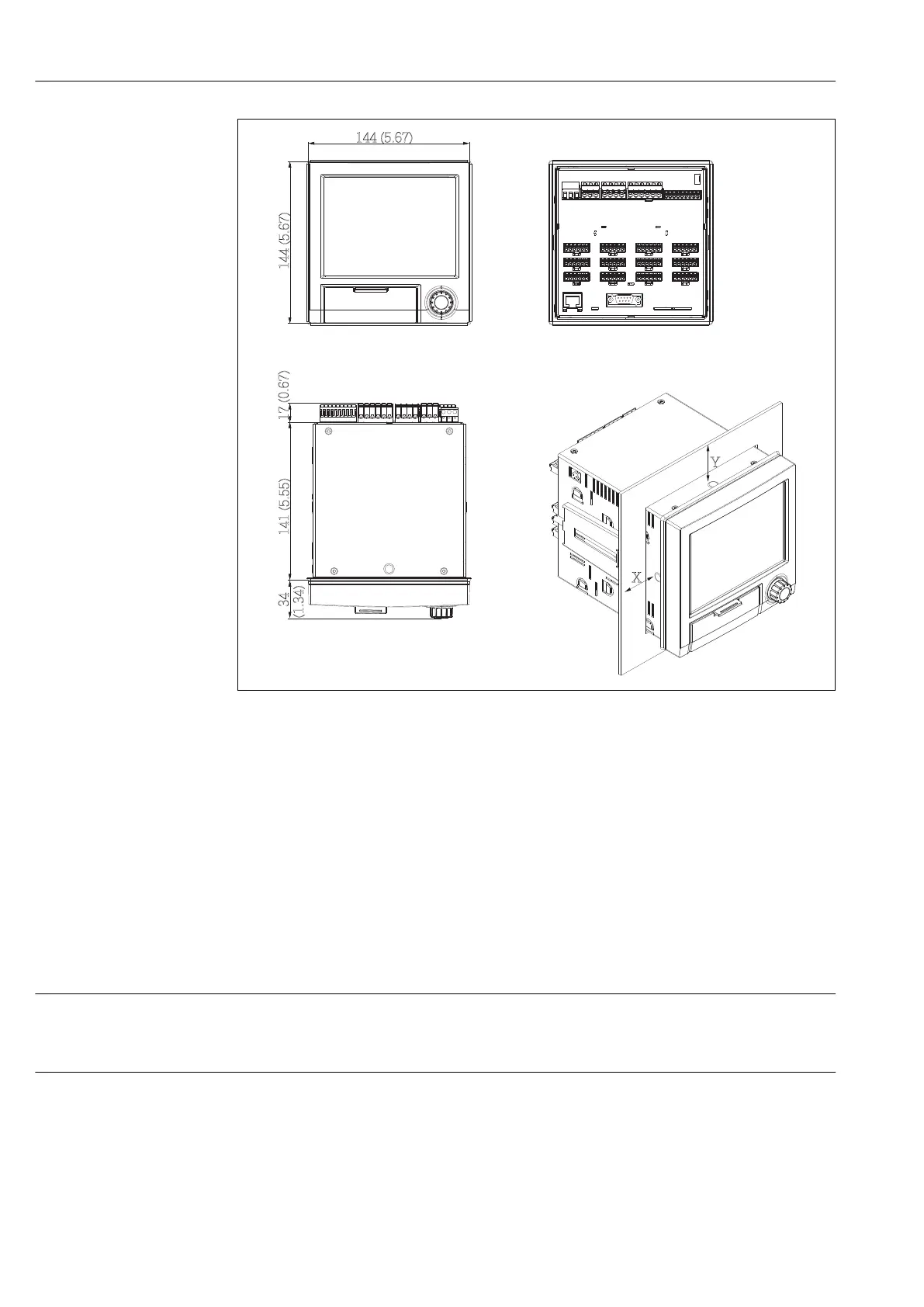

13 Panel mounting and dimensions in mm (in)
Please observe the installation depth of approx. 158 mm (6.22 in) for the device incl.
terminals and fastening clips.
• Panel cutout: 138 to 139 mm (5.43 to 5.47 in) x 138 to 139 mm (5.43 to 5.47 in)
• Panel strength: 2 to 40 mm (0.08 to 1.58 in)
• Angle of vision: from the midpoint axis of the display, 75° to the left and right, 65° above
and below.
• A minimum distance of 15 mm (0.59 in) mm (inch) between the devices must be
observed if aligning the devices in the Y-direction (vertically above one another). A
minimum distance of 10 mm (0.39 in) mm (inch) between the devices must be observed
if aligning the devices in the X-direction (horizontally beside one another).
• Securing to DIN 43 834
Field housing assembly and
design (optional)
As an option, the device can be ordered ready-mounted in a field housing with IP65.
Dimensions (B x H x D) approx.: 320 mm (12.6 in) x 320 mm (12.6 in) x 254 mm (10 in)
Desktop housing assembly
and design (optional)
As an option, the device can be ordered ready-mounted in a desktop housing.
Dimensions (B x H x D) approx.: 293 mm (11.5 in) x 188 mm (7.4 in) x 211 mm (8.3 in)
(dimensions with bracket, feet and installed device)
