29
Analog/Contact Input Module
Intrinsically safe ia/ib circuit 1:
Voltage supply U
0
= 4 to 30 V
Current consumption @ 30 V, max. 100 mA
Intrinsically safe ia/ib circuit 2:
Voltage supply U
0
= 4 to 30 V
Current consumption @ 30 V, max. 100 mA
Intrinsically safe ia/ib circuit:
Maximum load 500 W
Switch 1
Switch 2
Ca,max = 40nF
Parallel connection of the two input circuits (term. 81/82
and 83/84) to supply the contact outputs with power from a
single intrinsically safe circuit is also permissible.
Ci,max = 15nF
Li,max = 53 µH
Ci,max = 15nF
Li,max = 53 µH
U0,max = 22.0 V
I0,max = 50 mA
Pa,max = 640 mW

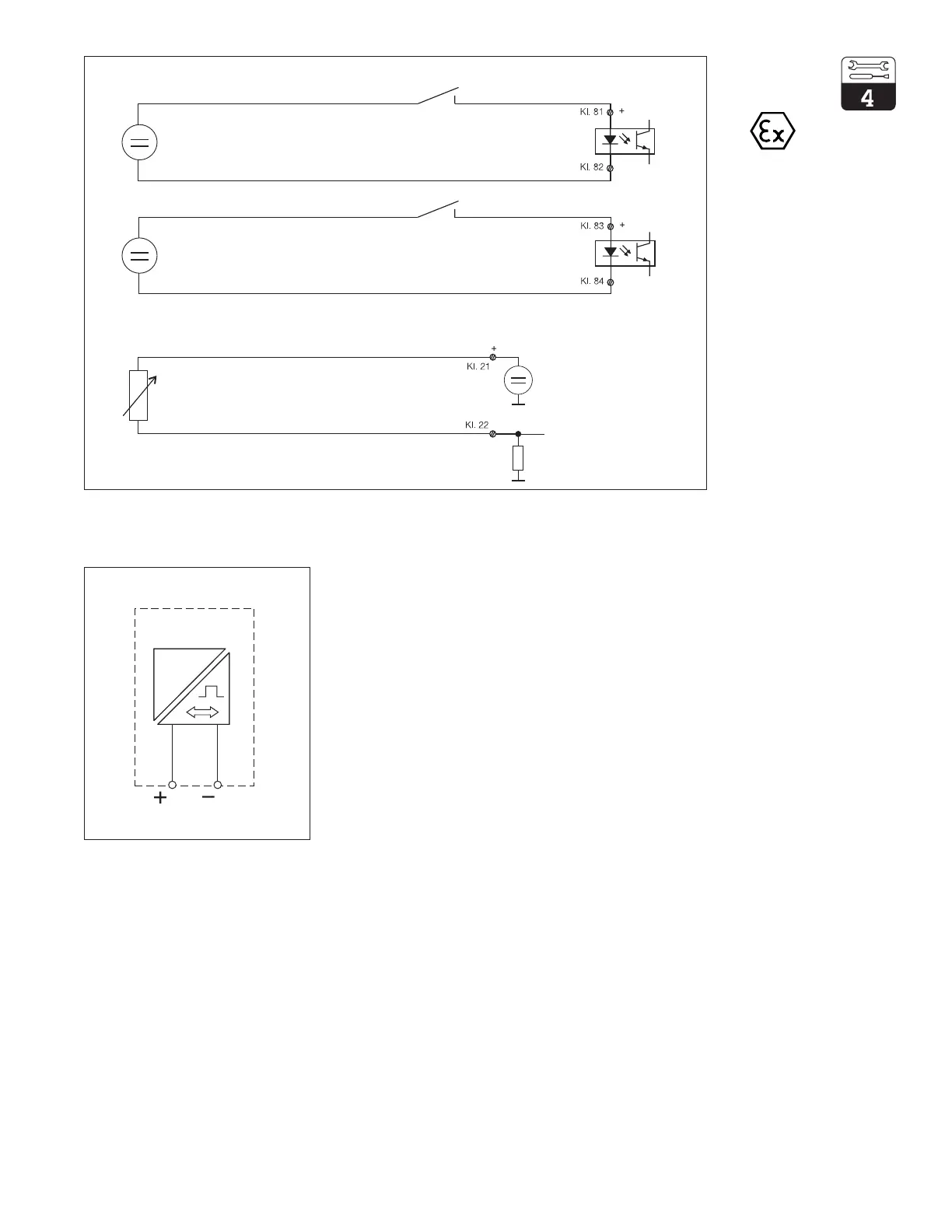

Figure 4.19
External wiring of input
circuits on FCXI
module
Profibus module (Ex)
98
99
Figure 4.20
Connection of module
FCYP
Expansion Module FCYP
Digital interface Profibus PA:
98 PA
99 PA+
