3 Design and function
3.5. ePS/C2C
Together with the tiltrotator, engcon's ePS rotation sensor creates an ePS-compatible
excavator guidance system – a concept that provides the selected system with more
functions. It provides full control of the bucket and the ability to see its exact rotational
position. C2C acts as a connection point between two different systems.

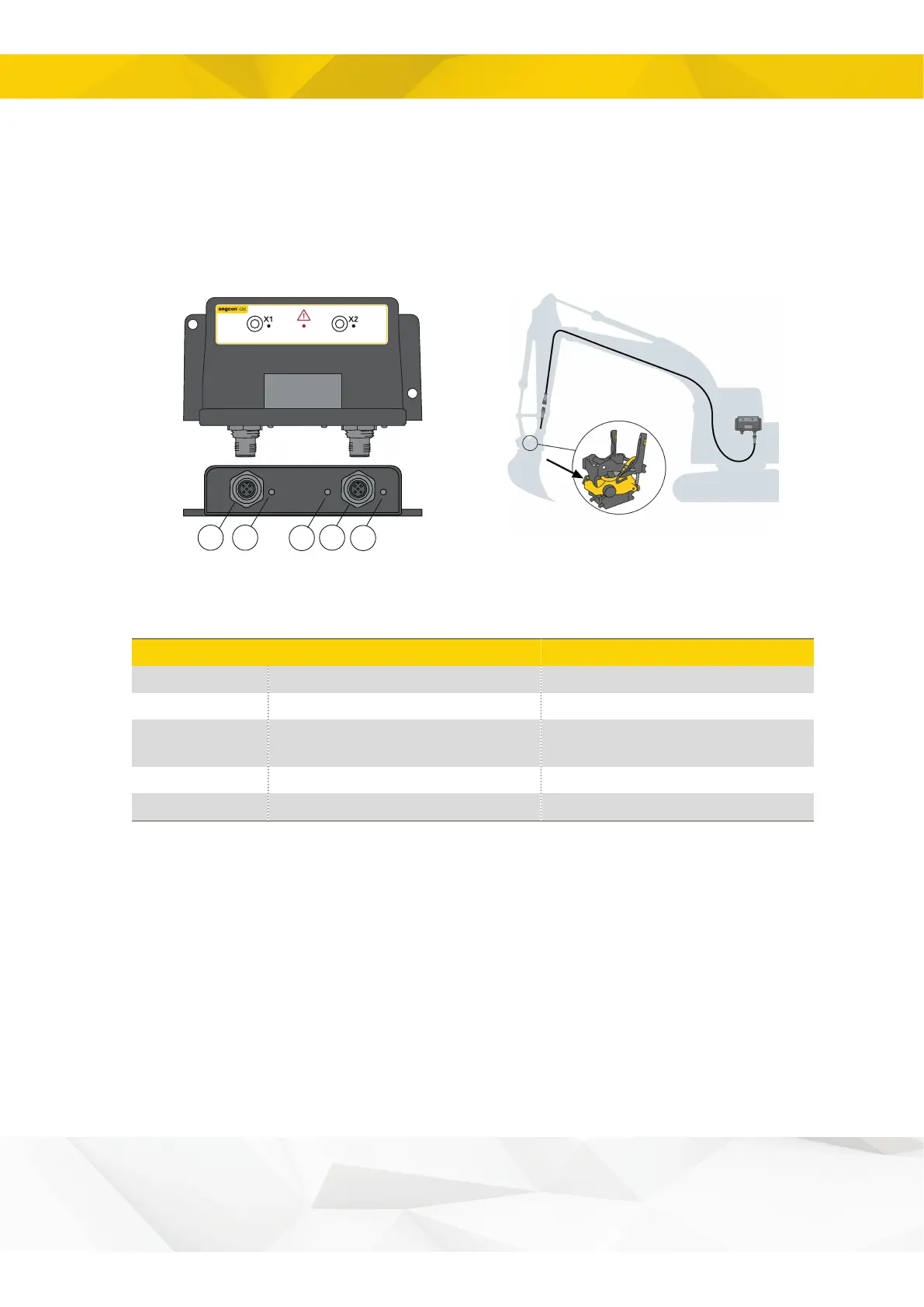

3.5.1. Overview
X1 1
2
X2
3
Figure 4.
Figure 5.
Position
Description
Remarks
X1
CAN Excavator guidance system
X2
CAN Rotation sensor
1
Traffic indication, Excavator guidance
system
Green LED
2
Status C2C (Alarm indication)
Red LED
3
Traffic indication, Rotation sensor
Green LED
Table 3.
For indications, see sections 7.3.1. Indications.
