4 Installation
4.1. Oil
On delivery, your product is filled with Fuchs Hydraway White 46, a white oil-based
hydraulic oil.
An oil drain pan must be available during installation.

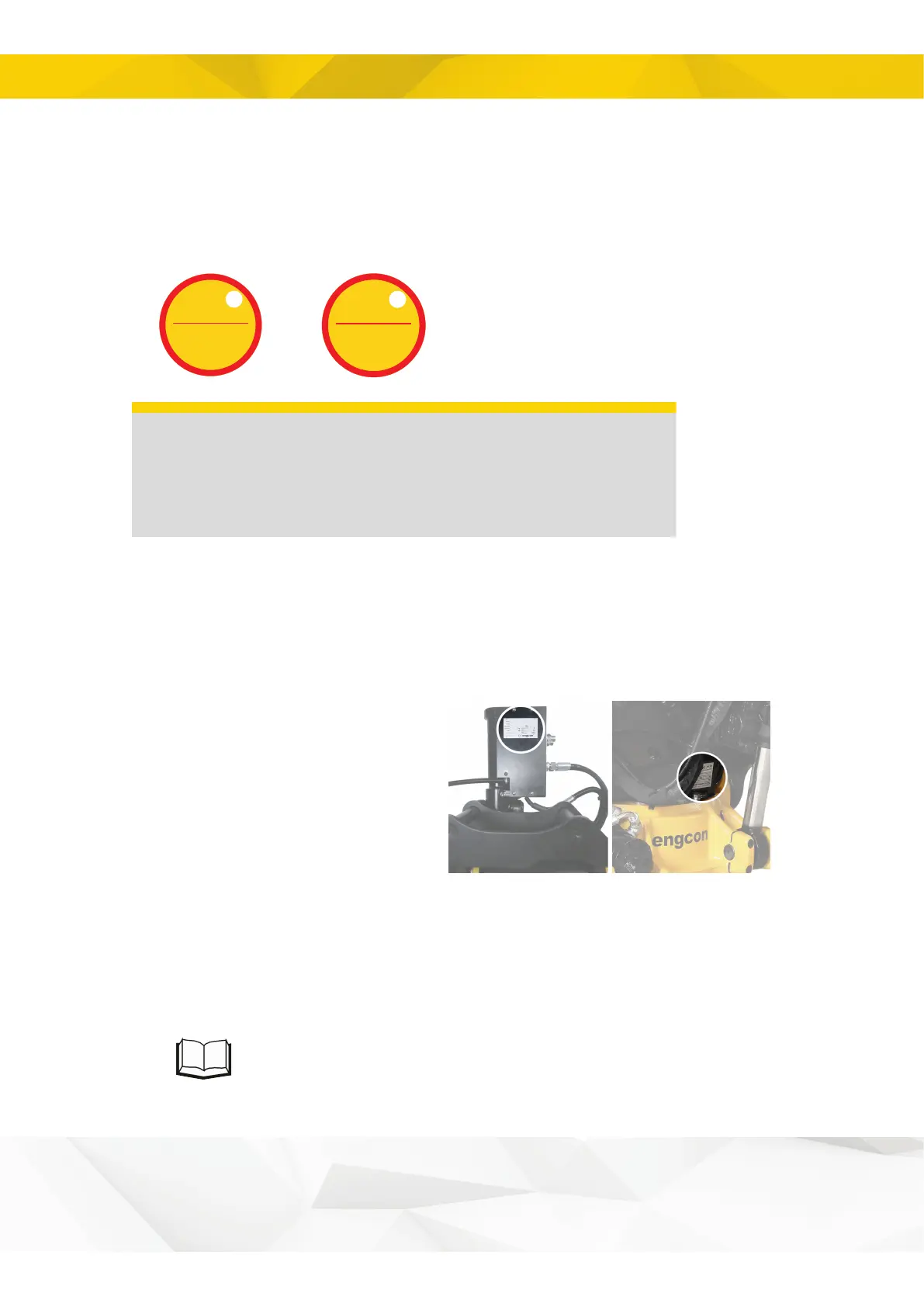

T and P are labeled with:
Max 2,5 MPa
(if possible, use
free return)
T
Max 22 MPa
P
IMPORTANT
Ensure miscibility with the base machine's hydraulic oil
prior to installation. If you are in any doubt, contact your
lubricant supplier. An incorrect mixture could damage hydraulic
components.
4.2. Identification
Check that your product's rating plate matches the information on the EC Declaration
of Conformity. If there is any deviation, contact the supplier before you begin initial
installation.
The rating plate is located on the tiltrotator tilt cylinder or black protective cover.
Rating plate content:
Part number
Type designation
Serial number
Year of manufacture
Weight
Lifting hook, max
Max hydraulic pressure
Figure 6.
4.3. Mechanical
The following assembly and installation instructions refer to direct attachment of the
tiltrotator.
If the tiltrotator will be installed on a machine coupler, use the user
manual for connecting tools.
