7.3. ePS/C2C
X1 1
2
X2
3

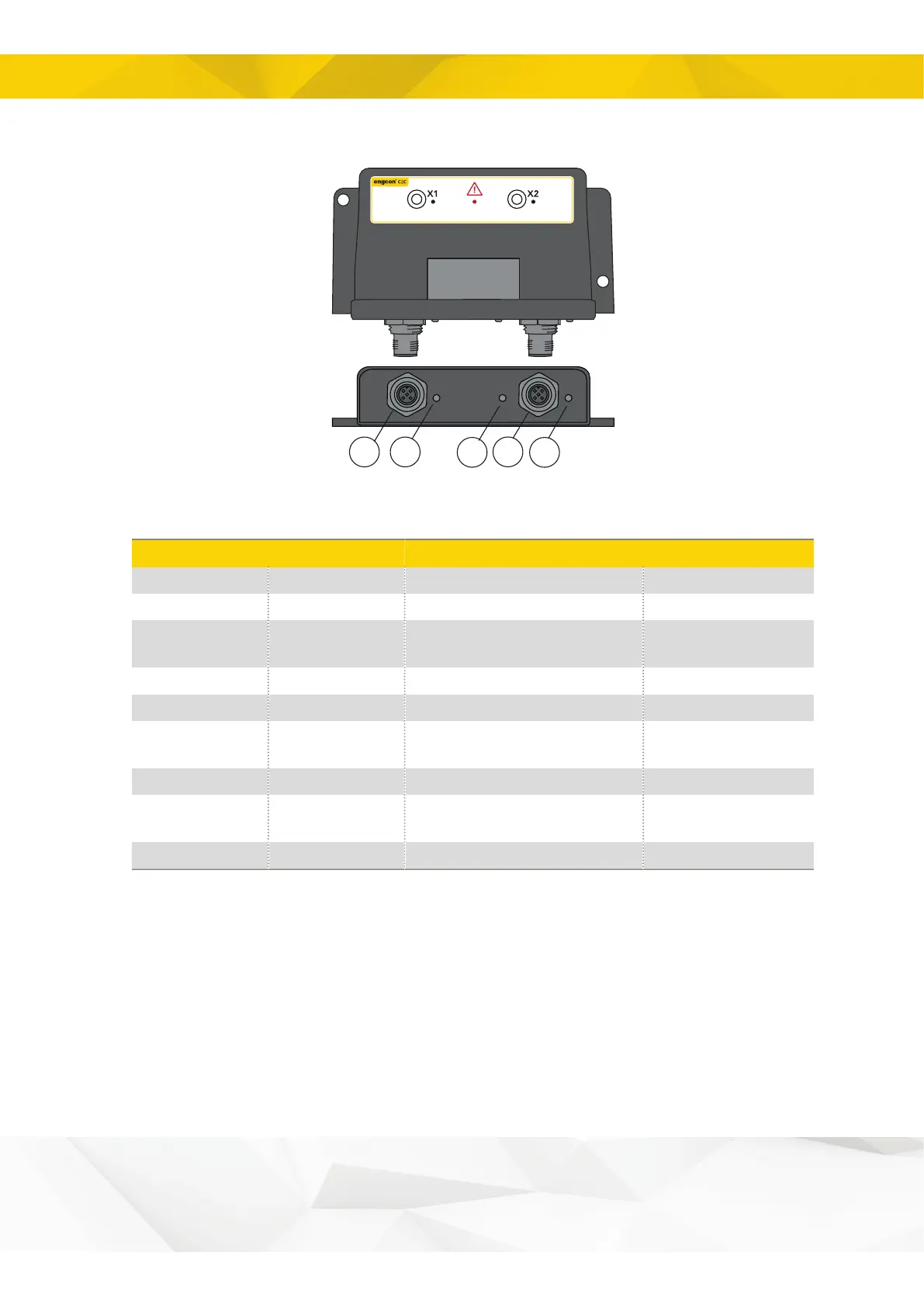

Figure 32.
7.3.1. Indications
Position
Sign
Indicates
Remarks
1
Off
No power supply
1
Constant light
No communication in X1
1
Flashing
CAN communication with the unit
connected to X1
3
Off
No power supply
3
Constant light
No communication in X2
3
Flashing
CAN communication with the unit
connected to X2
2
Off
No fault or no power supply
2
1 flash
No communication with rotation
sensor
*__*__*__
2
2 flashes
Short circuit, rotation sensor X2
**__**__**__
Table 20.
For overview, see section 3.5.1. Overview
