5 Operation

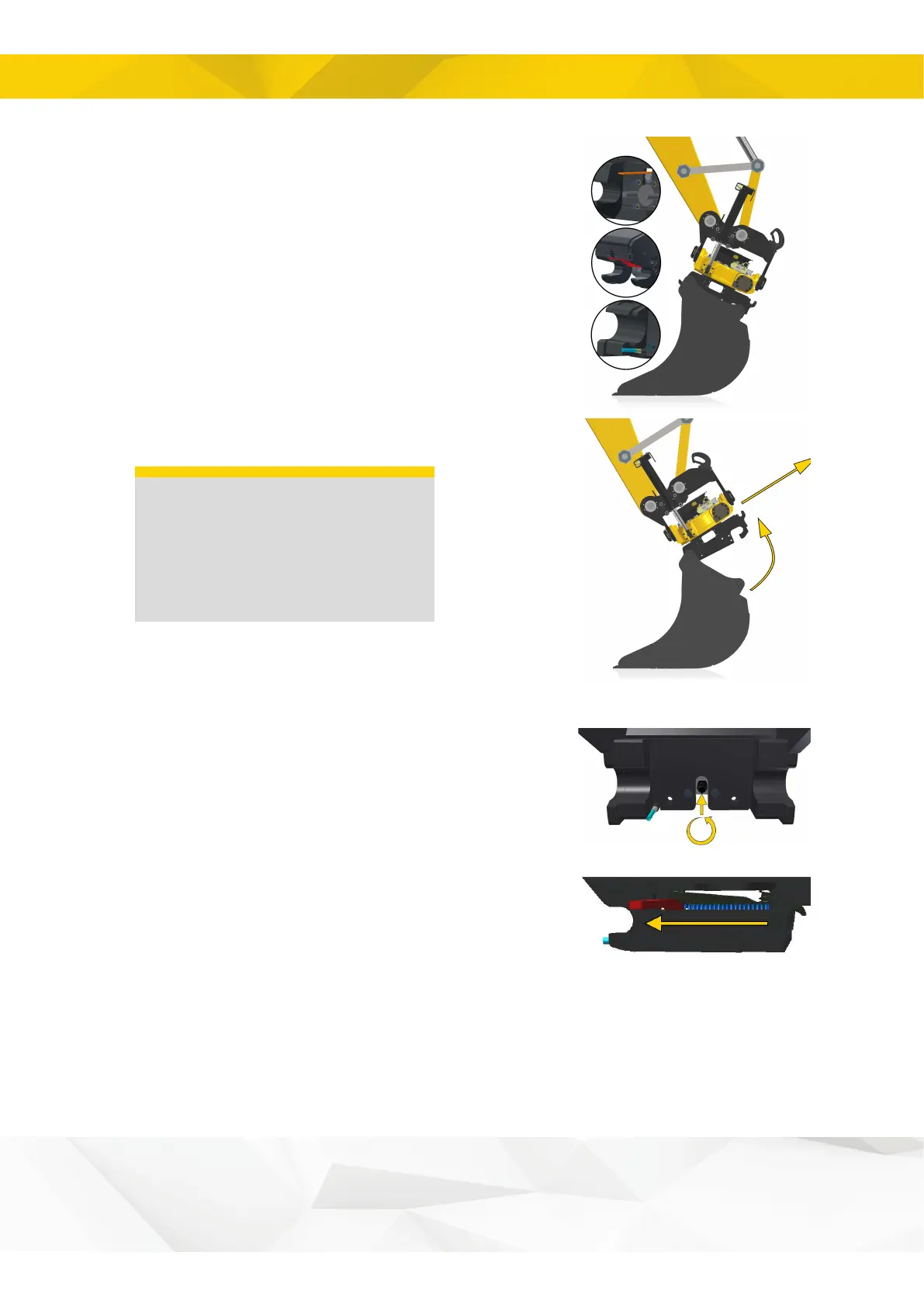

4. The locking cylinders are activated and open position
is reached when the indicator rod is visible.
Q-Safe: The sound and light warning signals are
activated.
HS/SW with sensor: The sound and light warning
signals are activated when the locking cylinder is in the
open position.
ECPUP: Check that the red hook is in the open position.
5. The locking bolts are now in the open position and the
tool is free. Carefully raise the tiltrotator from the tool.
IMPORTANT
The machine may only be
operated with the quick coupler
lock switch in the activated
position when connecting and
disconnecting tools.
5.9.3. Connecting the tool, mechanical
lock
1. Open the quick coupler lock with a suitable tool
On models with a screw, turn it counter-clockwise until
the locking bolts engage and the indicator rod is in its
outermost position.
On models with a lever, use an extension pipe and move
the lever to its end position. The indicator rod will then be
in its outermost position and the lock clamp will keep the
locking bolts open.
31
