Engcon EC02 - Tiltrotator Component Overview

10 Glossary

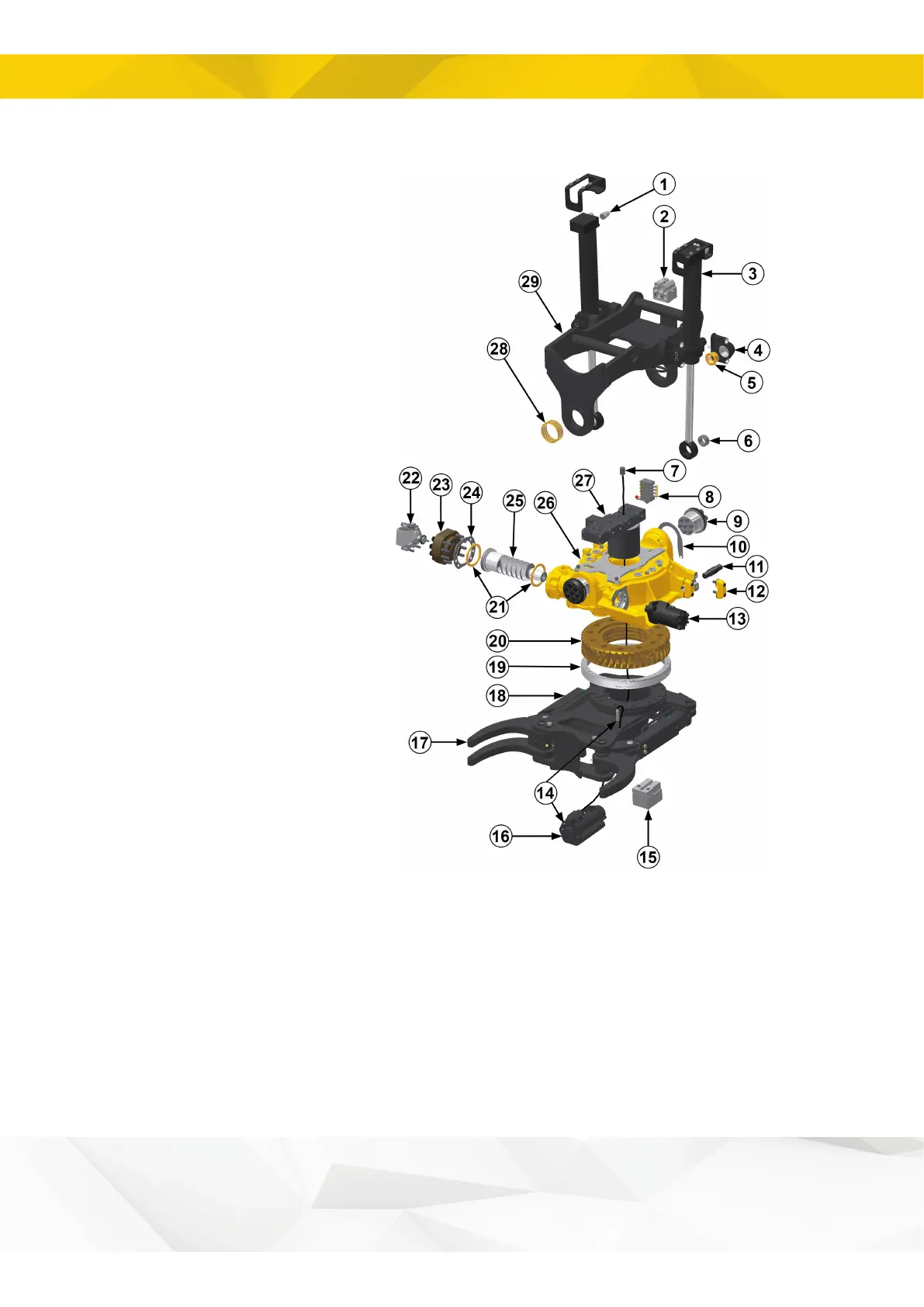

10.3. Tiltrotator overview
Pos.
Designation
1
Load-holding valve
2
EC-Oil block T (Option)
3
Tilt cylinder
4
Yoke bracket
5
Bushing, yoke bracket
6
Spherical bearings
7
QS/Q-safe Slip ring (Option)
8
Single-point lubrication
9
Tilt axle
10
Shim set, tilt axle
11
Cylinder axle
12
Clamping half
13
Hydraulic motor
14
QS/Q-safe Sensor (Option)
15
EC-Oil block H (Option)
16
Locking cylinder
17
Integrated grabber cassette
18
Quick coupler
19
Bearing ring
20
Worm wheel
21
Axial washer
22
Rotation sensor ePS (Option)
23
Screw cap
24
Shim set, screw cap
25
Worm screw
26
Body
27
Valve block and swivel
28
Bushing, tilt axle
29
Tilt upper section
