4 Installation

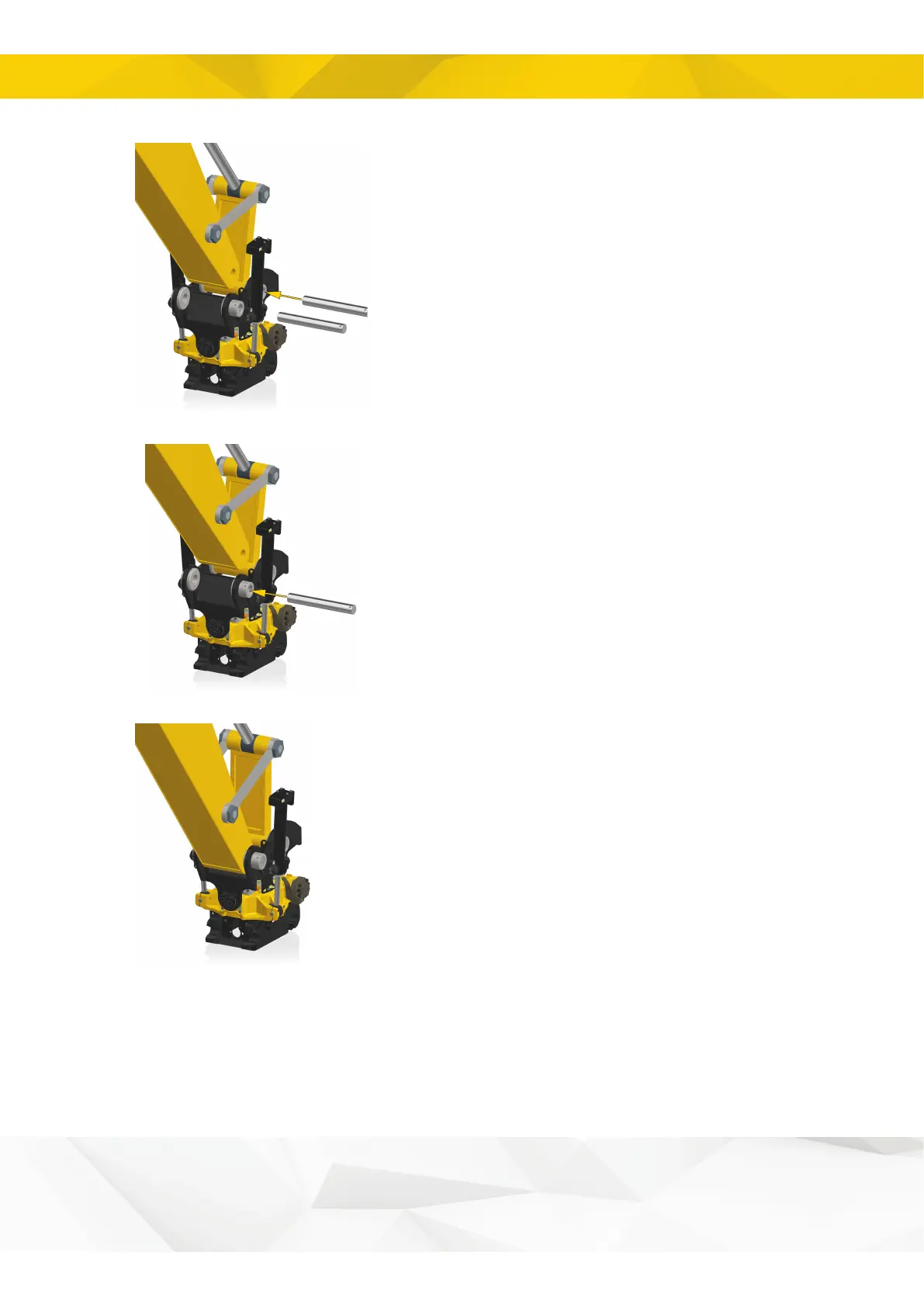

1. Fit any O-rings if such must be used.
2. Position the dog bone linkage to align with the
appropriate holes in the upper section of the tiltrotator.
3. Shim the width if necessary.
4. Insert the intended shaft journal.
5. Fit the shaft journal lock and make sure it locks
correctly.
6. Position the stick to align with the appropriate holes in
the upper section of the tiltrotator.
7. Lower the stick carefully; make sure that no shear
forces occur.
8. Shim the width if necessary.
9. Insert the intended shaft journal.
10. Fit the shaft journal lock and make sure it locks
correctly.
