Engel CC300 - Rear View

7. Product Description CC300 Operator Panel – User Guide
7.2. Rear View

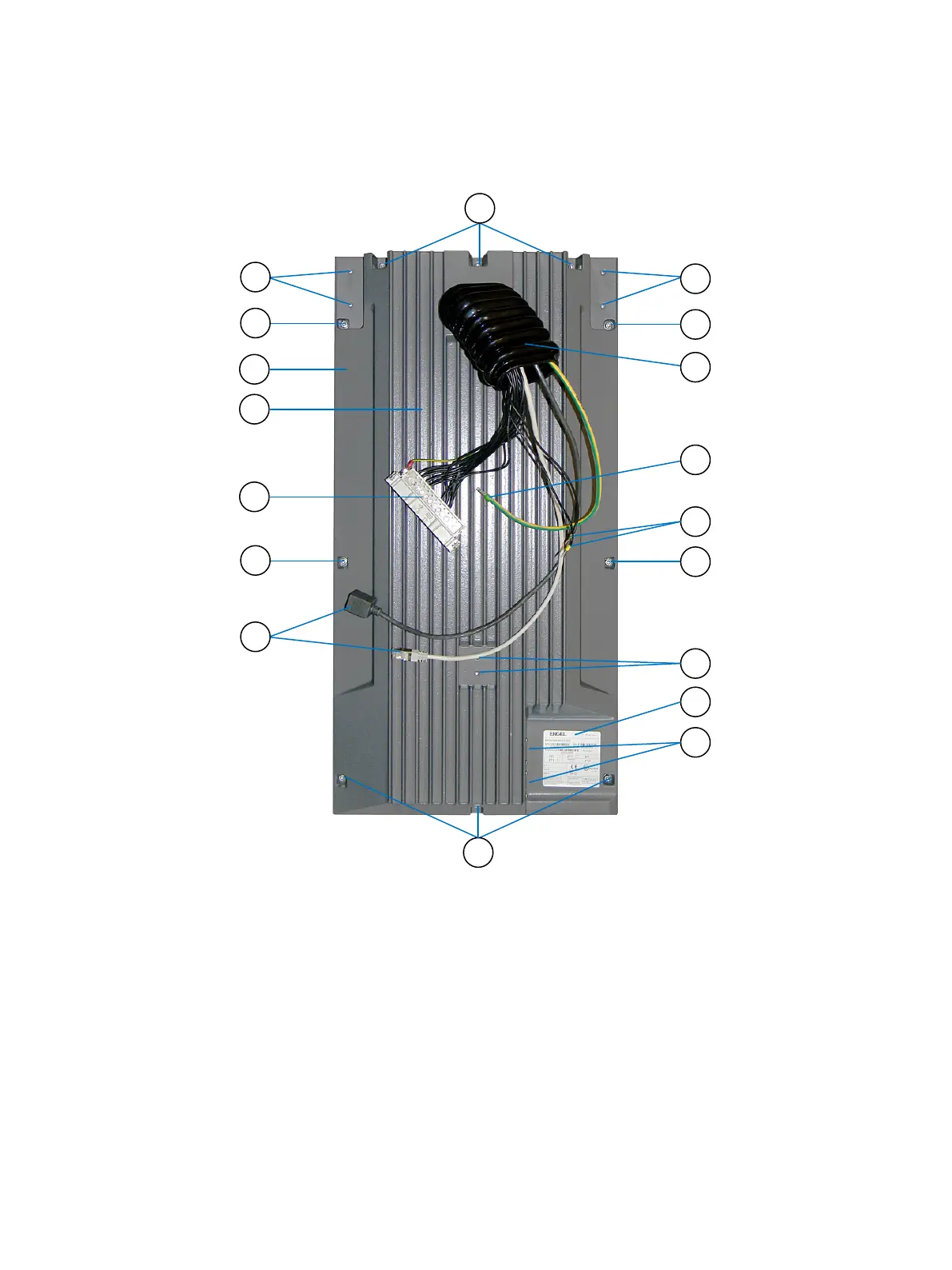

Fig. 17: Rear side of the CC300 operator panel
Legend for Fig. 17 :
1 Screws that secure the rear cover at the front
plate
2 Threaded holes for mounting the CC300
3 Aluminum rear cover of the CC300
4 Cooling fins of the aluminum rear cover
5 Harting connector (24-pole)
6 2x LAN cables (Ethernet 10/100/1000; 1x male,
1x female)
7 2x USB 2.0 ports
8 Nameplate
9 Threaded holes for mounting the linear actuator
10 Connection cables for the linear actuator
11 Grounding cable
12 Cable gland (flexible cable inlet)
2
2
1
12
3
1
1
1
1
1
7
9
4
5
6
11
10
8
Preliminary Version 0.2 25
