7. Product Description CC300 Operator Panel – User Guide
7.3.1. USB Ports

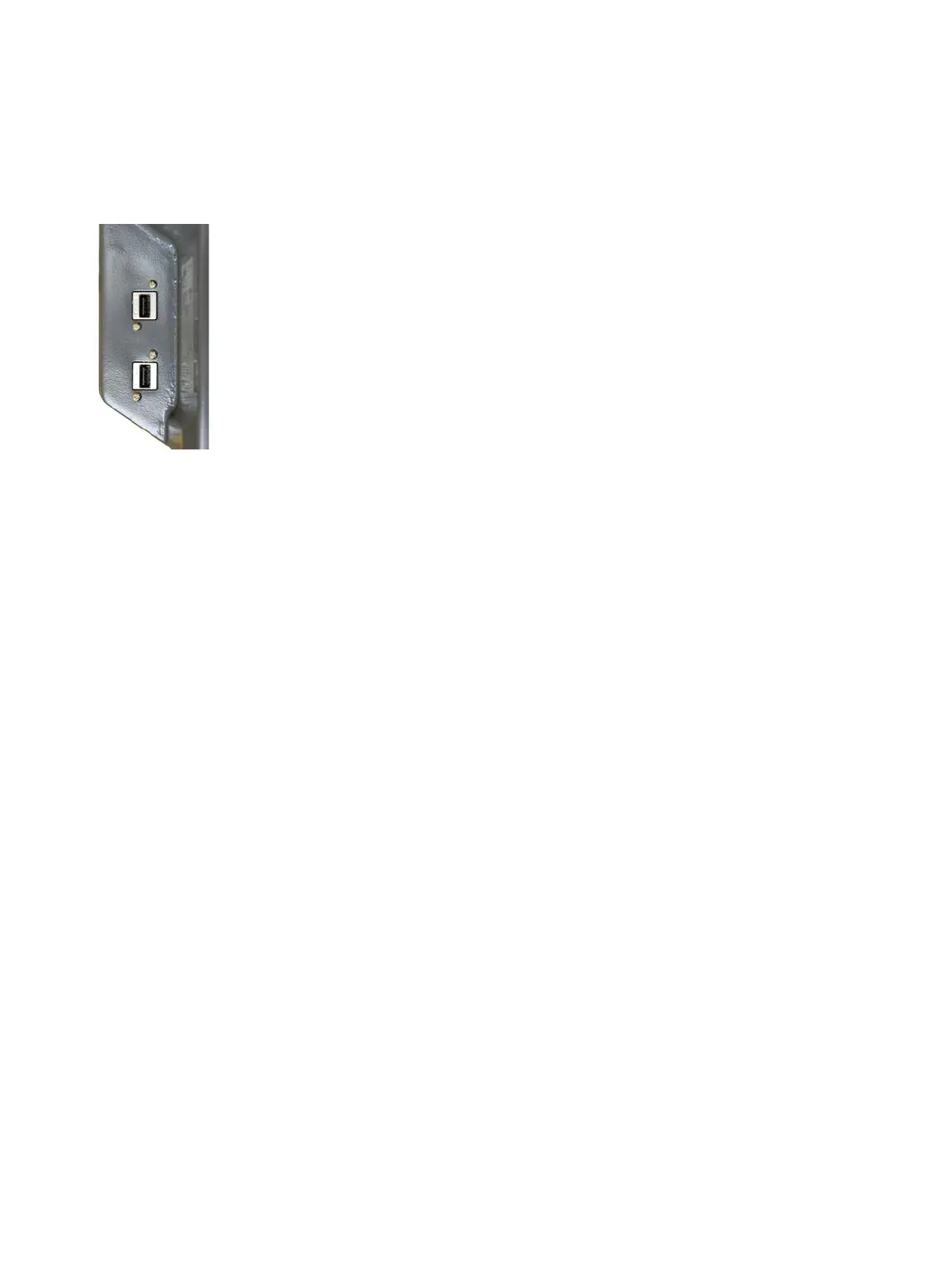

Fig. 23: USB ports
In a cavity at the left side of the aluminum cover, two USB 2.0 ports (see also Fig. 22, Pos. 7) are located.
The cavity is deep enough that plugged-in USB sticks will not restrain the tilting mechanism of the CC300
operator panel.
Preliminary Version 0.2 29
