7. Product Description CC300 Operator Panel ā User Guide

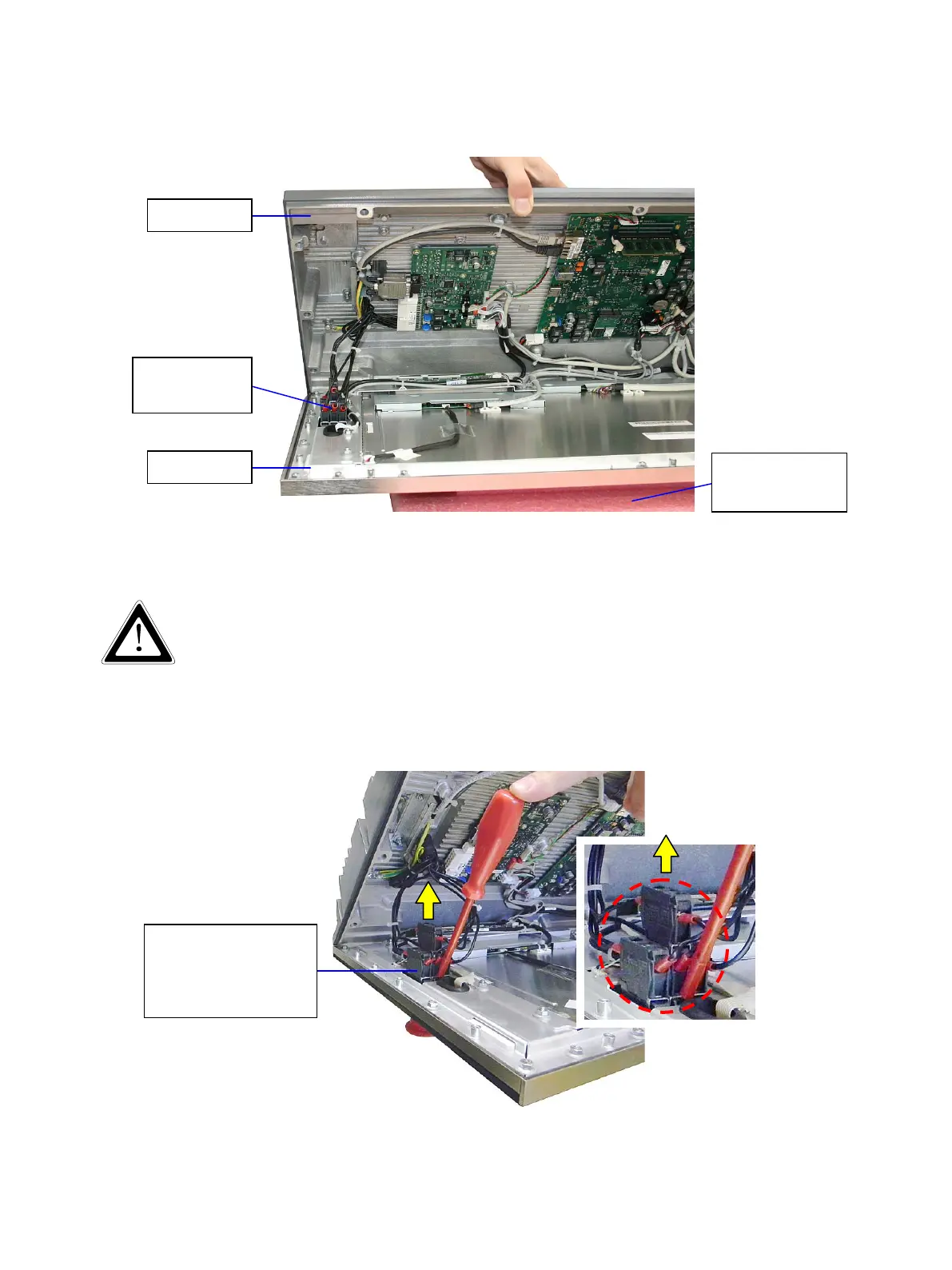

Fig. 26: Carefully open the CC300 a few inches
Attention: The device can only be opened fully after the auxiliary switch block (of the
emergency stop switch) has been removed!
(It is recommended that the rear cover is held by a second person while the auxiliary
switch block is removed!)
4. Unlock the auxiliary switch block with a screwdriver and pull it out of its mounting (see Fig. 27).
Fig. 27: Unlocking and removing the auxiliary switch block
switch block and
remove it
32 Preliminary Version 0.2
