Engel CC300 - DP Connector (Standard: Displayport 1.2)

10. Interfaces – Pin Assignments CC300 Operator Panel – User Guide

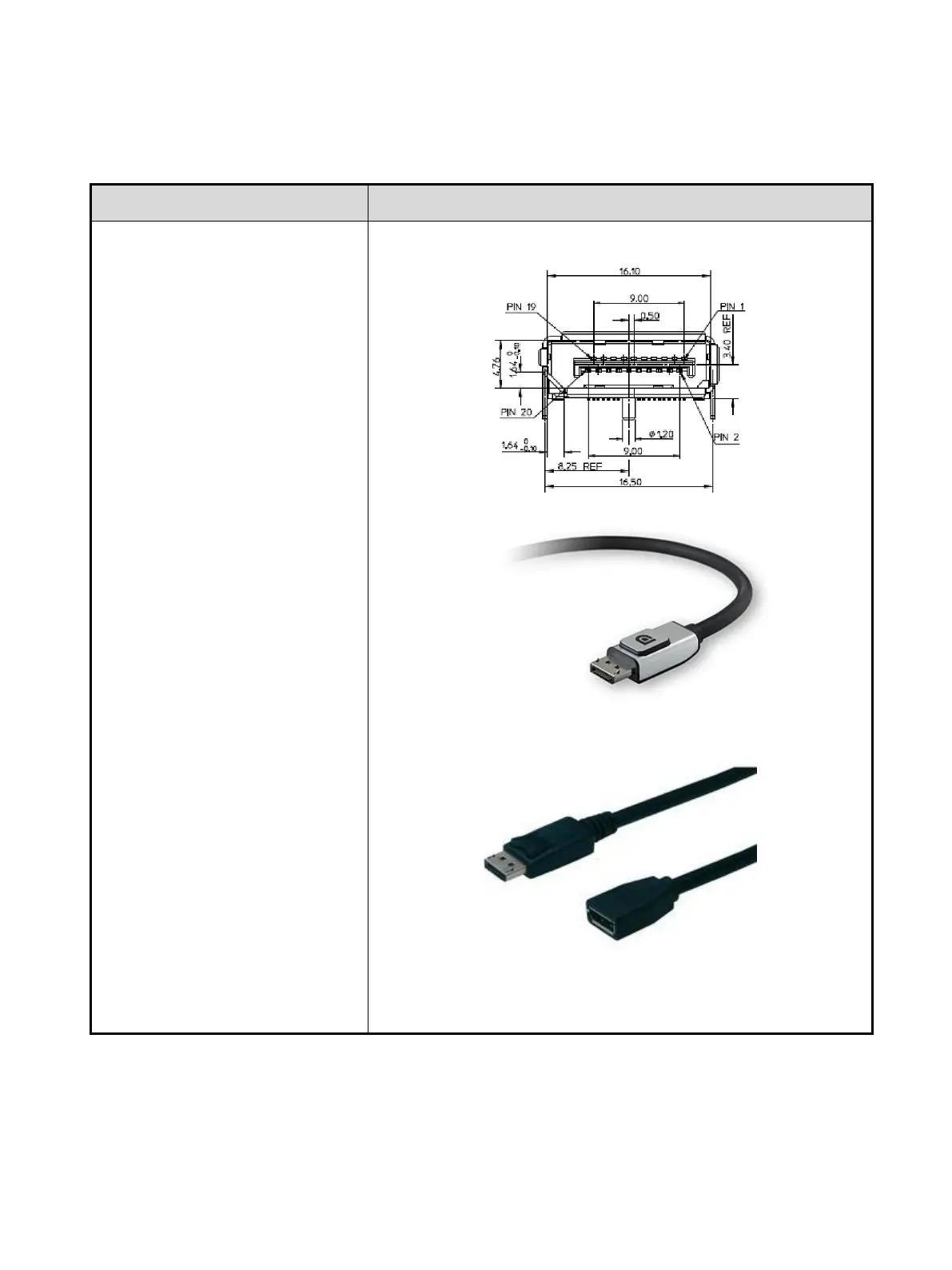

10.1.6. DP Connector (Standard: DisplayPort 1.2)
Pin Signal Name 20-pin DP Connector
1 ML LANE 0+
2 GND (ML LANE 0)
3 ML LANE 0-
4 ML LANE 1+
5 GND (ML LANE 1)
6 ML LANE 1-
7 ML LANE 2+
8 GND (ML LANE 2)
9 ML LANE 2-
10 ML LANE 3+
11 GND (ML LANE 3)
12 ML LANE 3-
13 AUX_SEL#
14 Pull-down to GND
15 AUX CH+
16 GND (AUX CH)
17 AUX CH-
18 Hotplug
19 GND (GND_DDC)
20 +3.3V (DDC EEPROM power)
750mA fused
(The DisplayPort is located on the mainboard and can be optionally led out of the cabinet via DP cable or
DP extension cable.)
48 Preliminary Version 0.2
