10. Interfaces – Pin Assignments CC300 Operator Panel – User Guide
10. Interfaces – Pin Assignments
Low-active signals are indicated by a minus sign.
10.1.1. Harting Connector

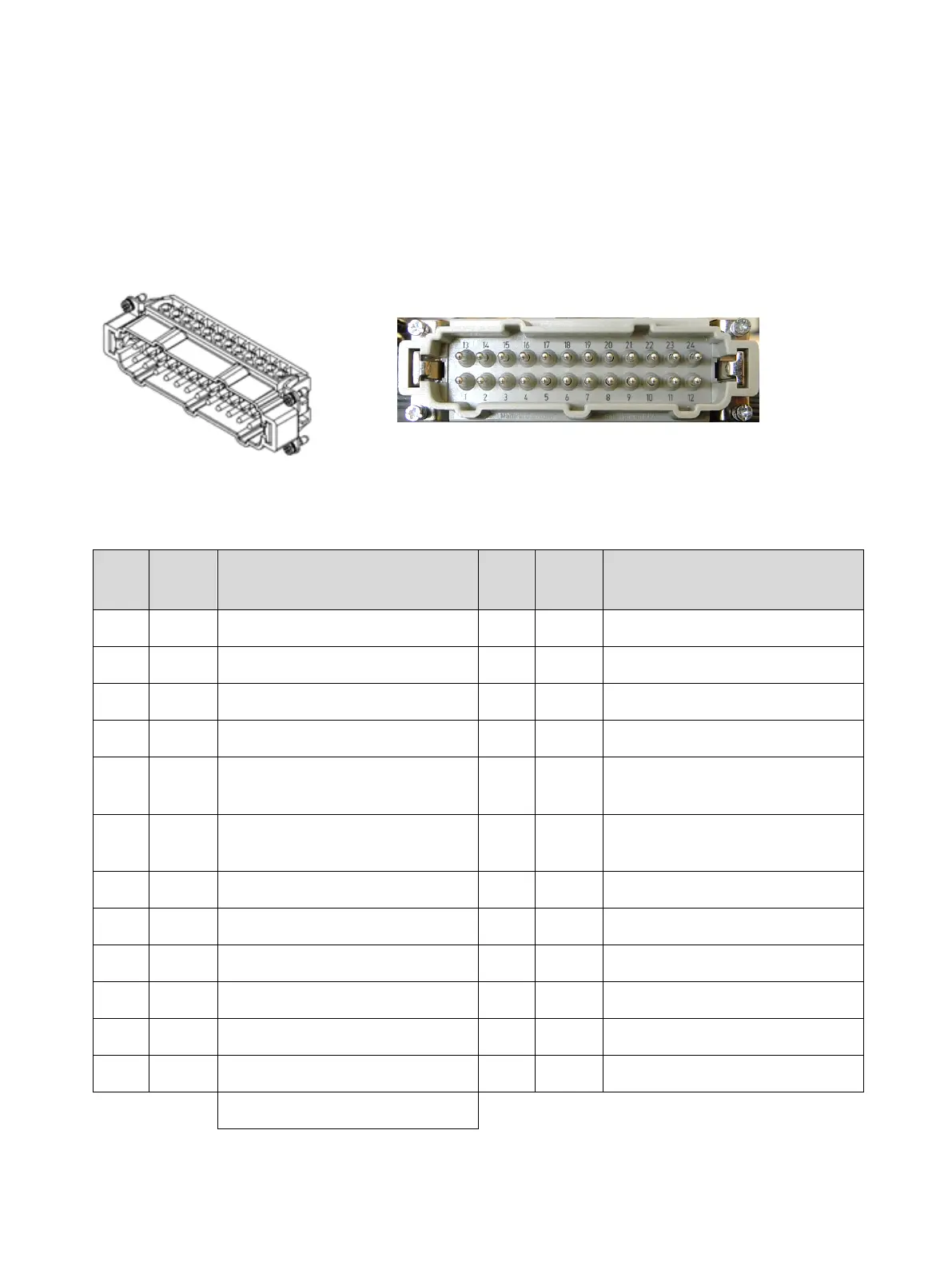

24-pole Harting connector (Type Harting HAN 24 E, wire cross section: AWG 18)
Pin
No.
Wire
No.
Signal Name Pin Wire
No.
Signal Name
Pin 1
8
Emergency Stop channel 1 - 1
Pin 13
12
Emergency Stop channel 1 - 2
Pin 2
9
Emergency Stop channel 2 - 1
Pin 14
13
Emergency Stop channel 2 - 2
Pin 3
10
Emergency Stop channel 3 - 1
Pin 15
14
Emergency Stop channel 3 - 2
Pin 4
11
Emergency Stop channel 4 - 1
Pin 16
15
Emergency Stop channel 4 - 2
Pin 5
Emergency Stop channel 5 - 1
(not implemented) Pin 17
Emergency Stop channel 5 - 2
(not implemented)
Pin 6
Emergency Stop channel 6 - 1
(not implemented) Pin 18
Emergency Stop channel 6 - 2
(not implemented)
Pin 7
6
24V panel power supply
Pin 19
5
0V panel power supply
Pin 8
4
24V power transformer (linear actuator)
Pin 20
3
0V power transformer (linear actuator)
Pin 9
7
Power transformer switch-off
Pin 21
16
Dig In 1
Pin 10
free
Pin 22
free
Pin 11
free
Pin 23
free
Pin 12
free
Pin 24
free
Connector grounding (lateral)
Preliminary Version 0.2 45
