Enttec S-PLAY - Hardware Overview; Physical Features and Dimensions

S-Play User Manual
Part No.: 51301
8 October 2020
(v23)
Document ID: 4686708 Page|6

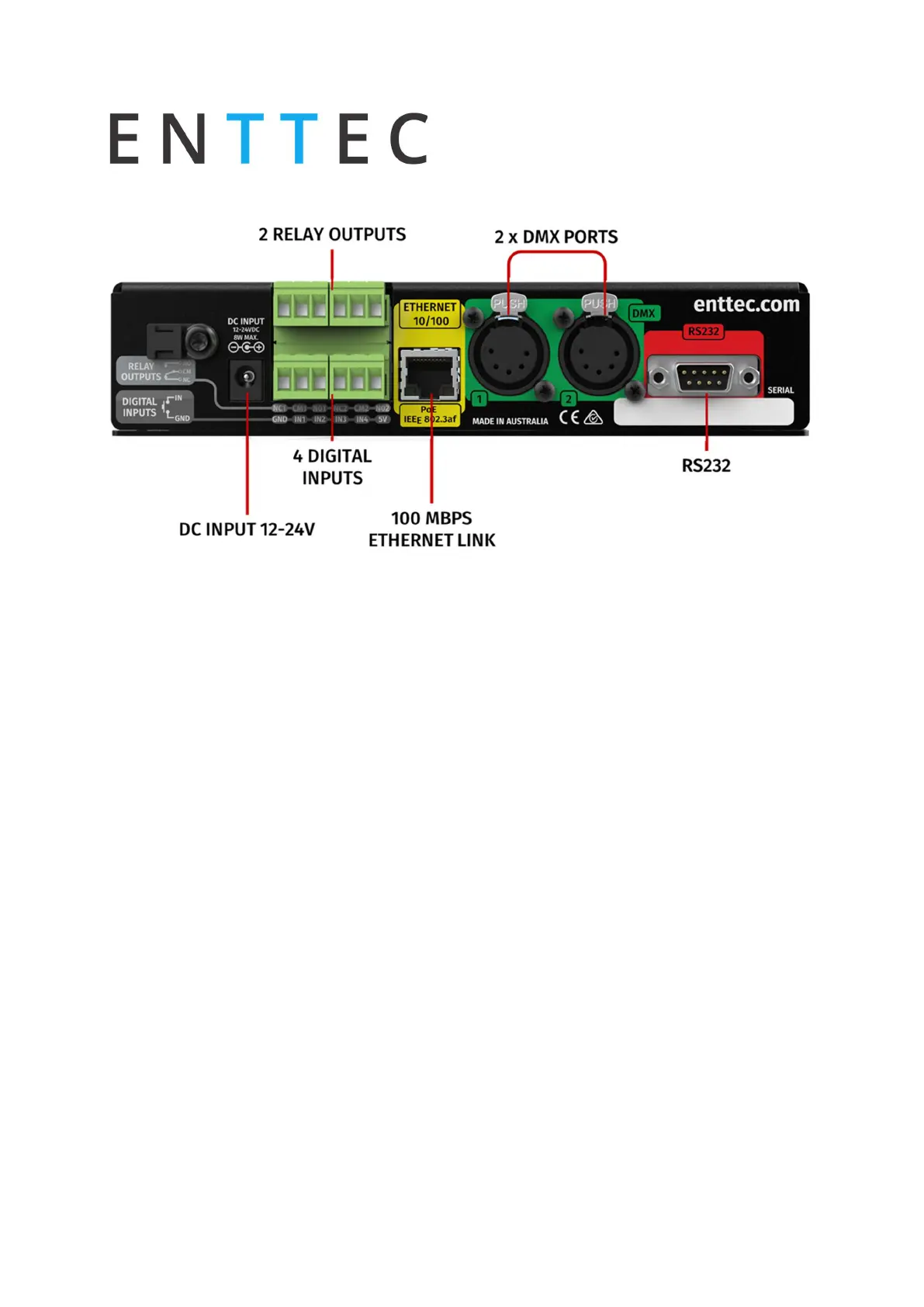

Physical Features

1U height – Half width

Two bi-directional 5 Pin female DMX Ports

Colour TFT LCD screen (160x128)

Navigation LCD menu buttons

1 x USB Type A port

12 to 24v DC Input (8w max power draw) – Power supplies over 5A should not be
connected to the S-Play.

MicroSD card storage (Class 10 40/10 Mb/s Read/write performance)

100 Mbps Ethernet link featuring 802.3AF PoE

4 Digital Inputs (GPIO)

2 Relay outputs (NC, NO, COM)

Solid-state design
