Enviro C60I - Fuel Conversion

18
Maintenance And Service
FueL conVeRsion:
Conversion Kit Installation:
1. Turn the unit o by pressing the ON/OFF Key on the remote and shut o gas supply at the shut-o valve
upstream of the unit. CAUTION: The gas supply must be shut o prior to disconnecting the
electrical power and before proceeding with the conversion. Allow the valve and unit to
cool down to room temperature.
2. Remove Safety Screen/Surround Panel and the glass door as shown in the
maIntenance anD serVIce -
glass Door remoVal section of this manual.
3. Carefully remove any media and logs.
4. Remove the burner as shown in the
maIntenance anD serVIce -
B
urner remoVal section of this manual.
5. Convert the pilot injector (see Figure 22):
a) Using a
7
/16” wrench, turn the pilot head a
1
/4 turn counter-clockwise
b) Push the slider with your nger or
at head screwdriver
- Natural Gas is marked NAT.
- Propane gas is marked LP with an
Kit Parts List for C60I Model:
1 - Orice (NG - #28 DMS or LP - #44 DMS) 1 - Installation instruction sheet
1 - Stepper regulator with hardware 2 - Conversion labels
Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are missing,
contact your dealer, distributor or courier company to have them replaced before starting this installation.
indicating hole between L and P.
c) Turn the pilot head a
1
/4 turn clockwise
back to its original position to lock in place.
6. Convert the burner orice:
a) Remove the main burner orice with a 3/8” deep socket
b) Put a bead of pipe-thread sealant into the orice mount,
install oriface from kit. DO NOT OVER-TIGHTEN.
7. Convert the SIT gas valve:
a) Use a T-20 driver to remove the two screws that hold the
stepper regulator to the gas valve and disconnect the wire
harness from the IFC.
b) Remove the rubber regulator diaphragm that is situated
between

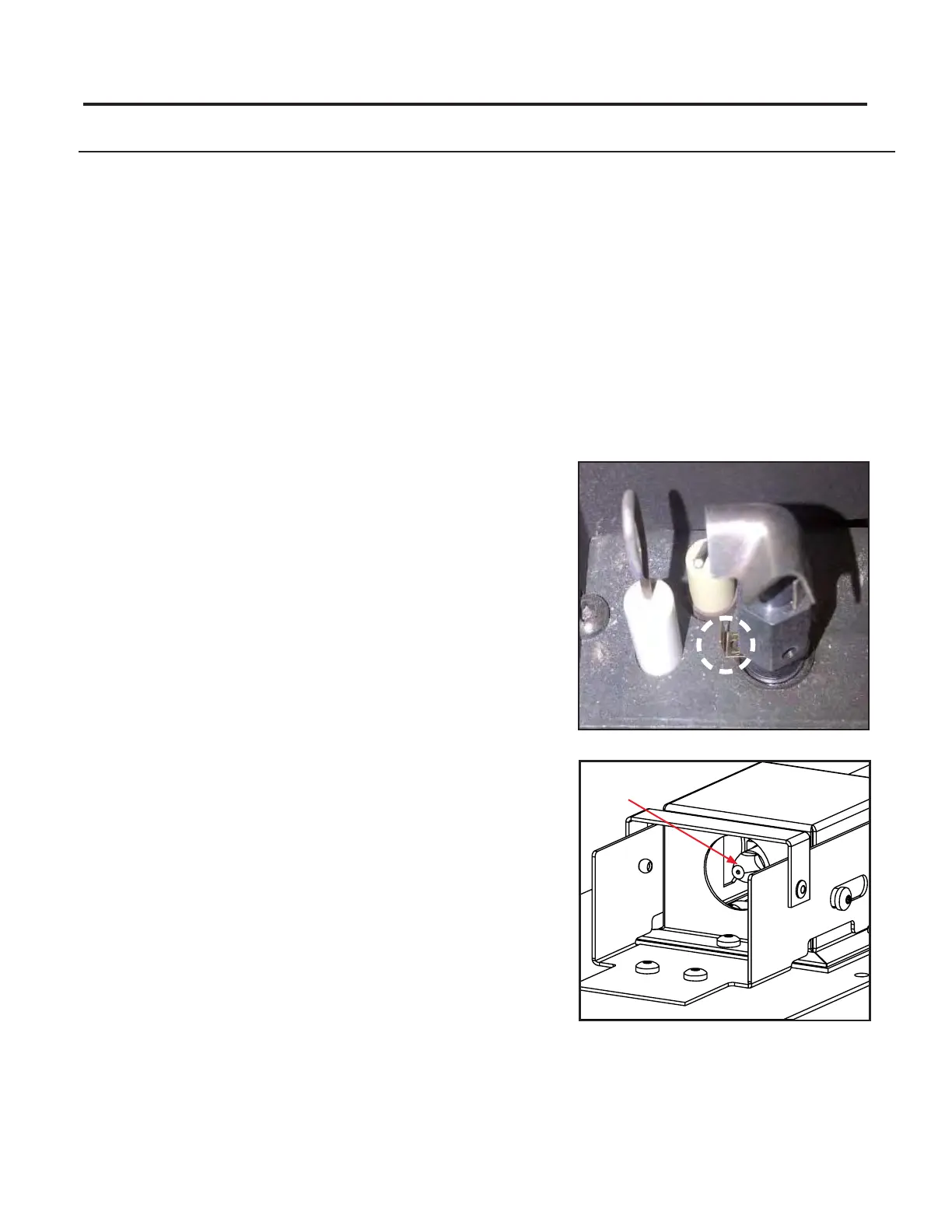

Figure 22. Pilot Slider set to LP
Orice
Figure 23: Orice location
