Initial Installation
QUALIFIED INSTALLERS ONLY
tV instaLLation consiDeRations:
If you are planning to mount a TV above your replace some considerations must be made to ensure it
is protected from the heat. A recess, mantel, or a combination of both can help keep the heat away from
the TV.
During testing temperatures did not exceed 150°F (65°C) in a 5” deep recess. There is no
guarantee that these temperatures will not harm the longevity of your TV. Make sure to consult your TV
manufacture’s specications to nd the maximum allowable operating temperature. Since every home
and installation is unique, temperatures should be veried at the time of install if possible. A TV should
not be installed if temperatures exceed the manufacturers maximum allowable temperature.

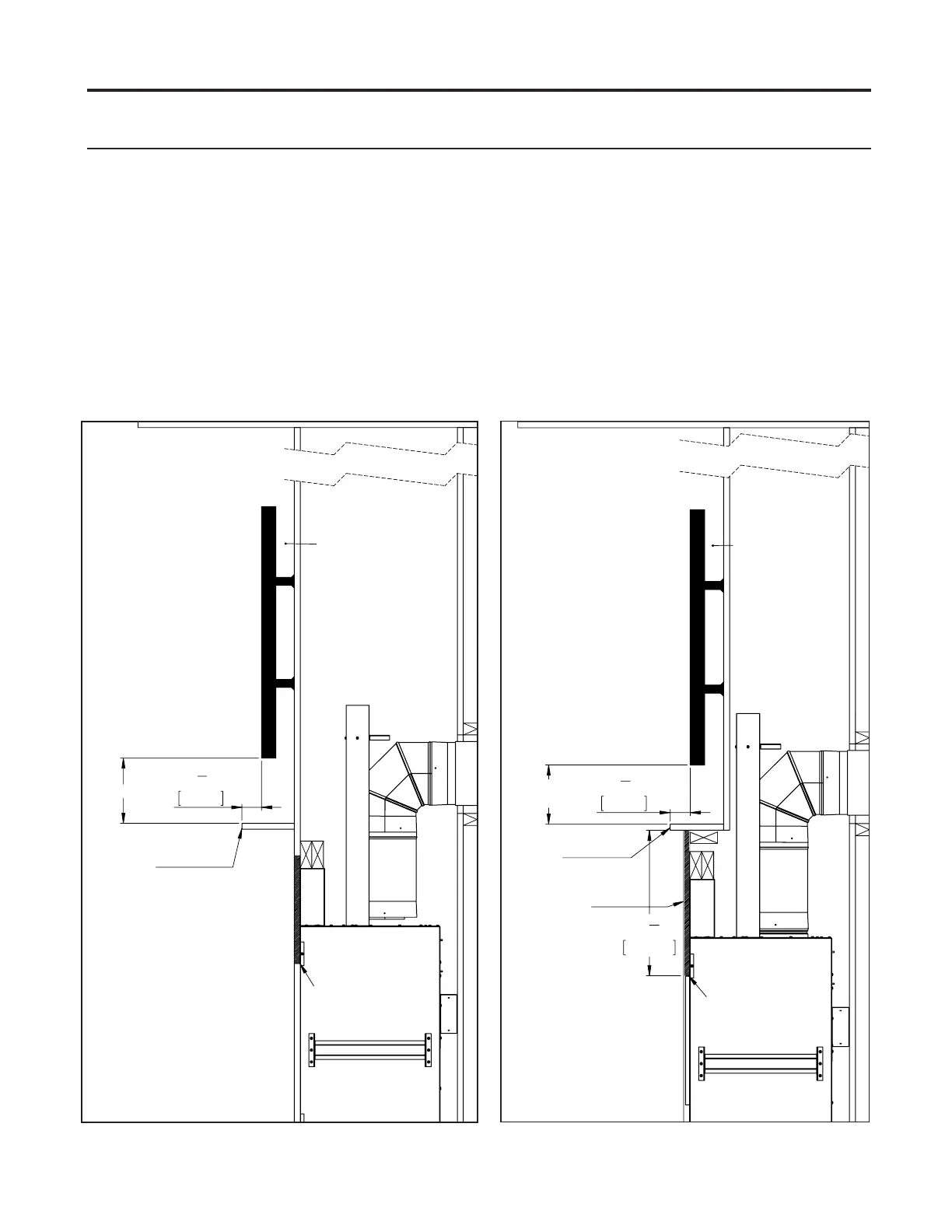

See Figure 37 and 38 for minimum TV installation clearances. If a recessed installation is used make
sure there is 2” of clearance around the sides and top of the TV to allow for airow. Remember these
are minimum dimensions increasing them can only help reduce the temperature the TV is subjected too.
Min: 2" Gap
[50mm]
2
1
2
"
64mm
18
1
4
"
464mm
Mantel Thickness
Min: 3/4"
Air Gap Behind TV
Min: 1 1/2" [38mm]
(Typically provided
by wall mount)
Under side
of Mantel
Finishing Edge
Non-Combustible
Should Go All The Way
to The Recess
Figure 37. Minimum TV Install Clearances
2
1
2
"
64mm
Min: 2" Gap
Air Gap Behind TV
Min: 1 1/2" [38mm]
(Typically Provided
by Wall Mount)
Mantel Thickness
Min: 3/4"
Maintain 2 1/2"
Television Screen
Distance - See
Mantel Instructions
for further Information
Finishing Edge
Figure 38. Recess Minimum TV Install Clearances
