Initial Installation
QUALIFIED INSTALLERS ONLY
FLexibLe Vent instaLL:
The C60I is certied to be installed with the 5ft BDM Pro-Form Flexible Direct Venting system. This kit
must be horizontally terminated. No other kit is certied for this unit.
Important
Flex venting clearance to combustibles is 1” standard, 3” above an elbow.
Minimum Vent Height is 62” from bottom of unit.
Do not bend ex venting over 90°.
A vinyl siding stand o must be used for terminations on a vinyl exterior wall.
This replace must not be connected to a chimeny u servicing another type of appliance.
62”
[1575mm]
1. Install thimble in framing.
2. Gently stretch ex vent if needed, then insert
through thimble to exterior.
3. Apply Liberal bead of pipe sealant before
attaching termination.
4. Secure termination to venting with supplied
screws. Secure termination to exterior wall.
5. Before attaching other end of venting to the
replace apply liberal bead of pipe sealant to
the collar.
6. Slide the Venting onto the collar and secure
with supplied screws.
BDM Pro-Form Flexible Direct Vent Kit
5ft - 94218505
Flex Vent
Flex Cap
Flex Thimble

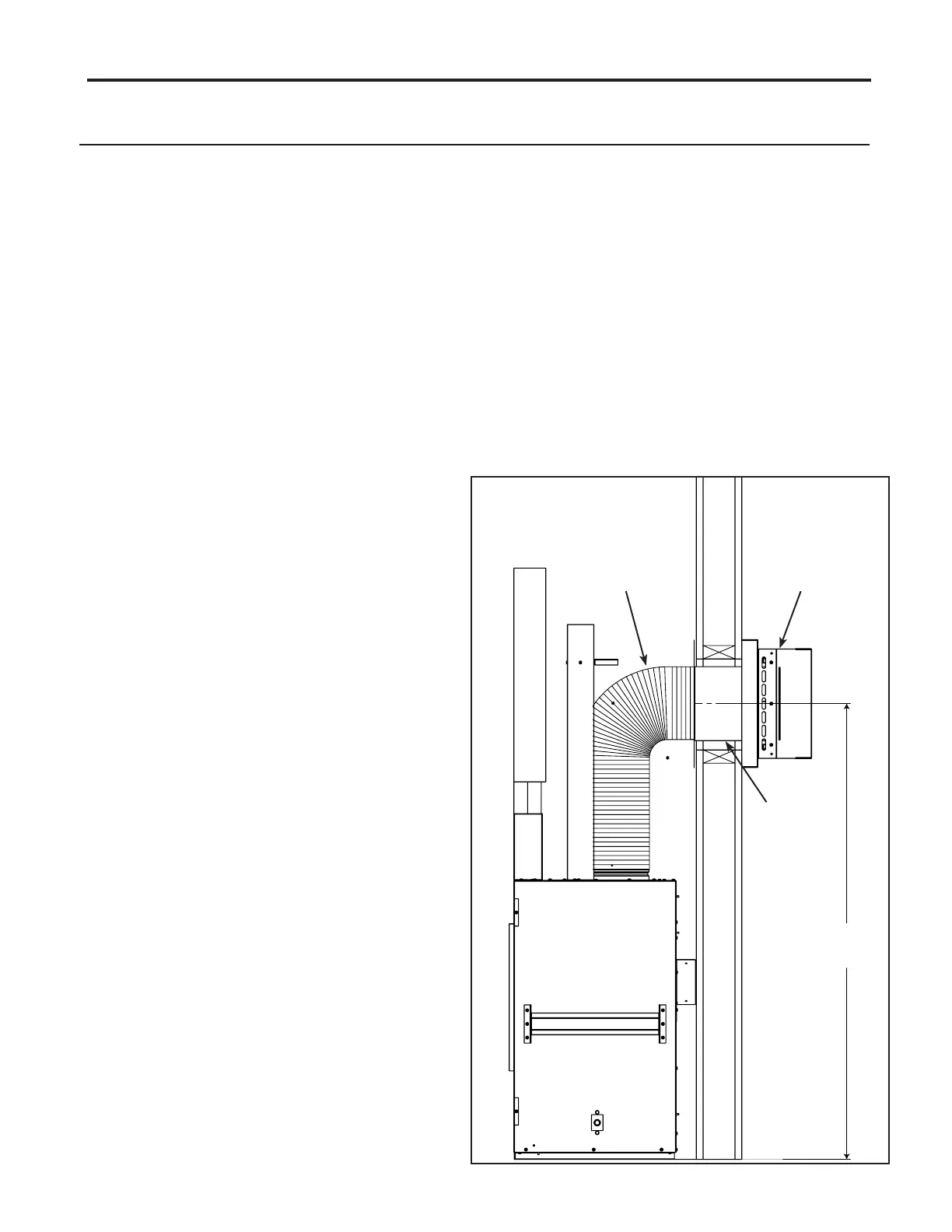

Figure 35. Flex Vent Minimum Install
