Secondary Installation
C60I Light Kit (50-3342)
The C60I has an optional light kit that is wired into the IFC.
The replace must be electrically connected and grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1 Canadian Electrical Code Part 1, Safety Standards
For Electrical Installations, or The National Electrical Code ANSI / NFPA 70 in the US..
CAUTION: When servicing controls, label all wires prior to disconnection. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing. If any of the original
wire supplied with the appliance must be replaced, it must be replaced with 18 AWG wire with a
temperature rating of 105°C. If the original wire supplied to the light bulbs is damaged you must
contact your dealer. This is special high rated oven wire and it must be replaced with the same.
buRneR tRay instaLLation:
There are two styles of burner tray. The standard burner tray is supplied with the unit and used for
all media base options with the exception of 50-3342 (Light Kit); the Light Kit includes a perforated
burner tray to allow light to come through. Both tray styles are handled the same and removed with
6 screws using a T-20 screwdriver.

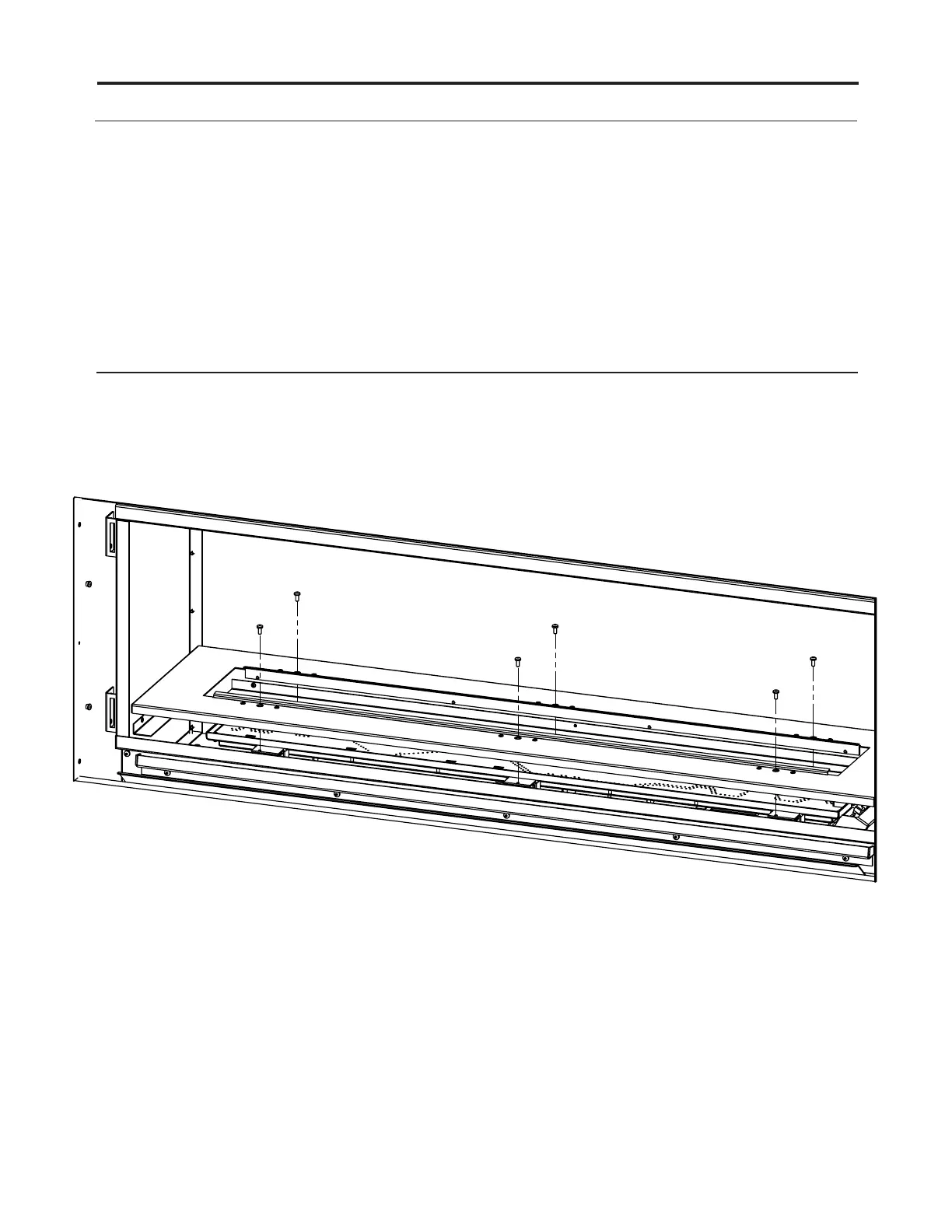

Figure 55: Standard Burner Tray Install/Removal
