Secondary Installation

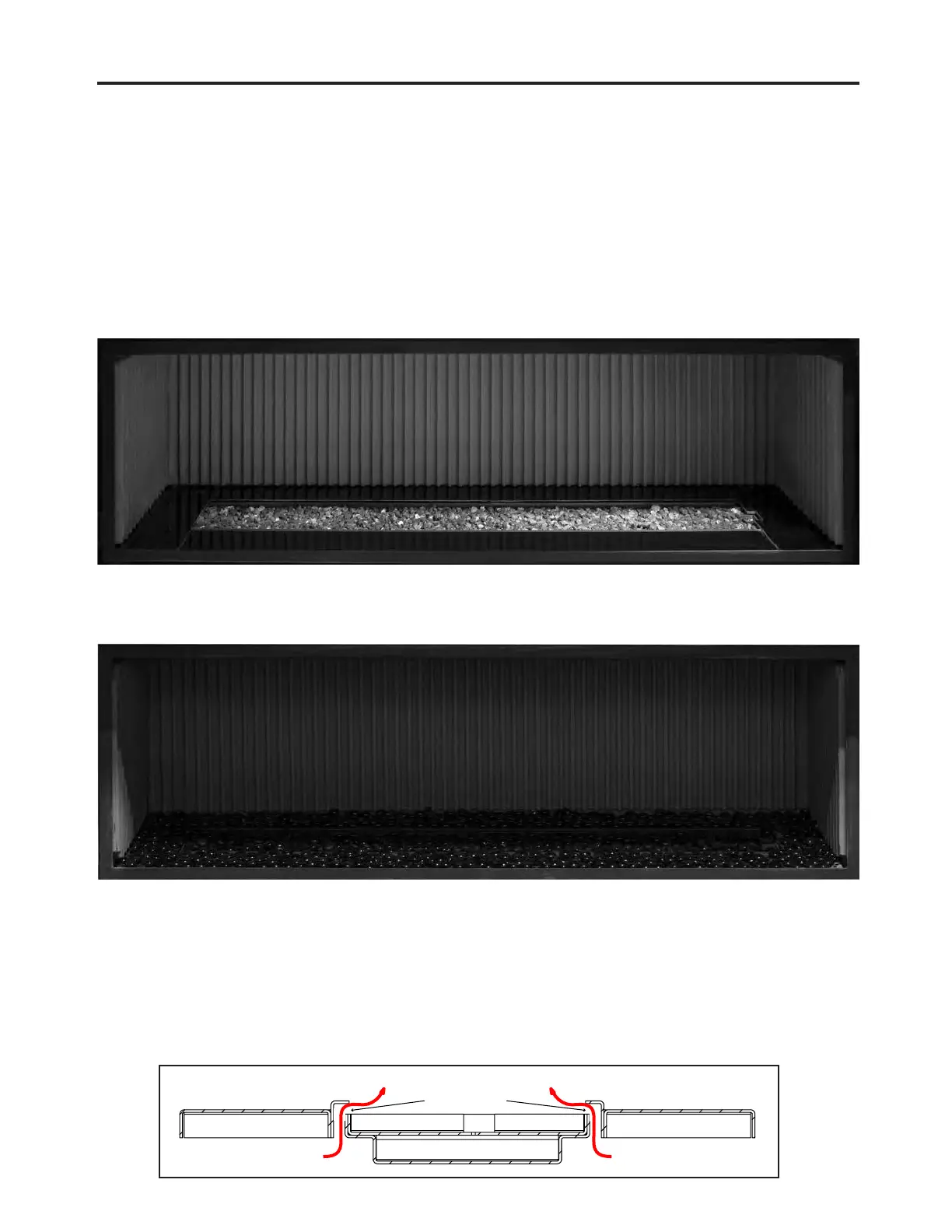

Figure 58: Glass Bezel with Vermiculite
Figure 59: Glass Media Bed
9. If you are using 50-3344 (Glass Media Bed) or 50-3342 (Light Kit) you may now cover the entire
media tray in a thin layer of glass pebbles; one layer is all you need.
10. You have now successfully installed your panels and media base. You may now arrange
your optional 50-3347 (Log & Rock Set); see instruction sheets for further detail.
11. Re-install the glass door and safety screen.
6. Ensure there is nothing on top of the media tray such as glass media or glass bezel strips. Angle the
rear liner into the rebox with nesse. The panel will t in, dont worry, place one corner in towards the
back and rotate inward. Slip it into the channel behind the media tray and install the rear liner retainer.
7. If you have media tray option 50-3343 (Glass Bezel) place the bezel strips around the tray before the
side liners are installed. If you are using 50-3344 (Glass Media Bed) or 50-3342 (Light Kit) install tray
media after the side liners.
8. Place the side liners into the side channels of the media tray. 50-3339 (Ledgestone) and 50-3340
(Enameled) will be placed in at the bottom and rotated up until seated. 50-3338 (Fluted) will be placed
in at the rear and rotated inward until seated. Once seated secure the top with the retainers using a T-20
Torx screwdriver. If using 50-3343 (Glass Bezel) pull the sides in so they butt up with the long strips.
IMPORTANT: IF THE AIR SLOT AROUND THE BURNER IS BLOCKED WITH MEDIA THIS
WILL CAUSE THE FIREPLACE NOT TO BURN PROPERLY.
AIR AIR
AIR SLOT
Figure 60: Burner Side Cross Section
