Enviro C60I - Corner Installation

26
Initial Installation
QUALIFIED INSTALLERS ONLY
102
4"
850
33 3/8"
3200
126"
2261
89 1/2
"
850
33 3/8"
1613
63 1/2"

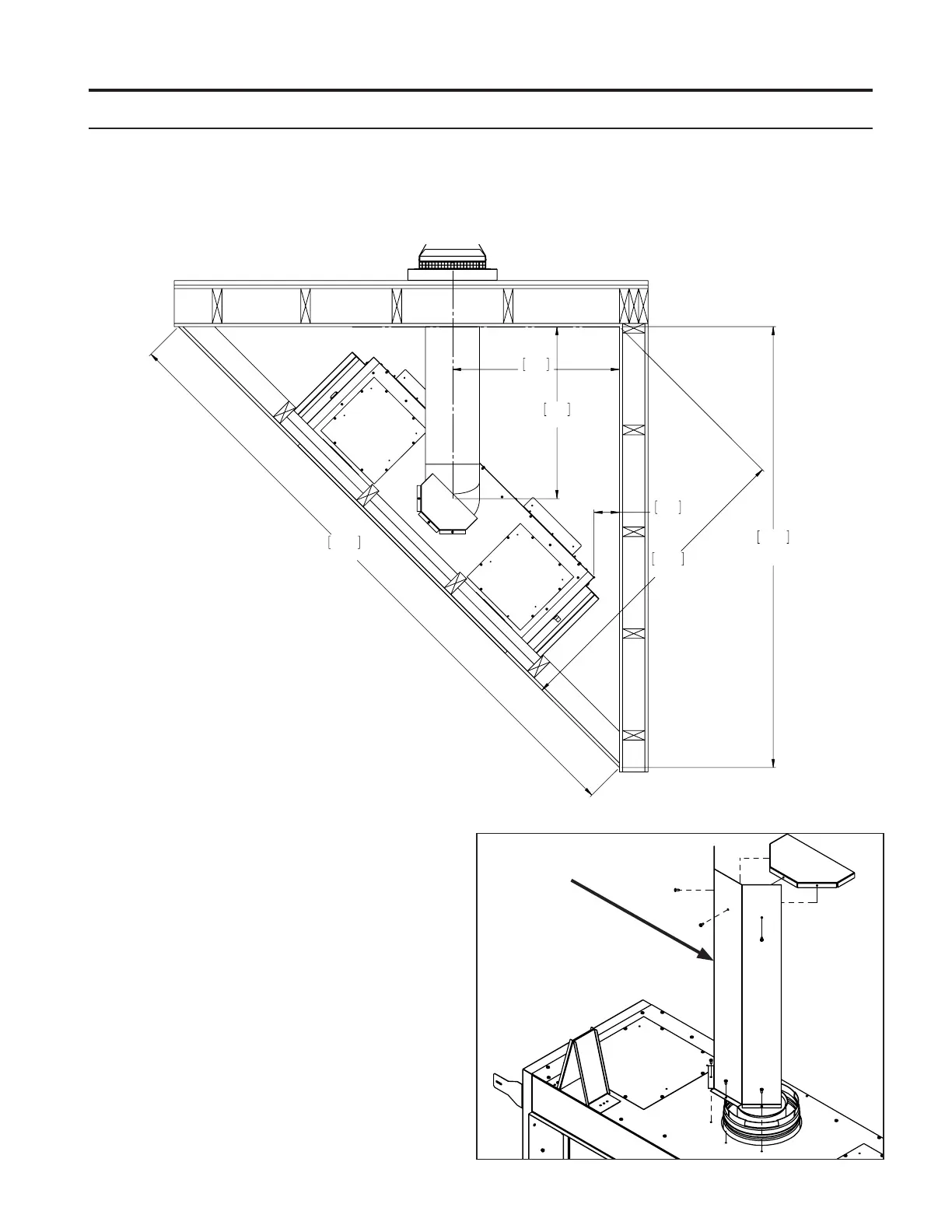

coRneR instaLLation:
The dimensions for installing a replace in the corner of a room are given in Figure 32. Refer to “InstallatIon
- allowaBle co-axIal Vent confIguratIons” for allowable pipe lengths.
Do not interfere with the structural integrity of the walls. Shown below are minimum clearances; increasing
these dimensions is allowable as long as vent length remains in the allowable range. See vent graph for
details.
Figure 32. Dimensions for a Corner Installation
Vertical Vent Shield
Horizontal
Vent Shield
Figure 33. Vent Shielding Install
IMPORTANT: All installations must include the
vertical vent shield. The horizontal vent shield
is only installed if the replace is horizontally
terminated with the minumum vertical rise of 24”.
If more than 24” of vertical rise is used in the
vent conguration no horizonal shield is needed.
See Figure 33 for shield install. Screws are pre-
installed in cabinet and horizontal vent shield. Use
a T-20 screwdriver or drill driver to remove screws
then install shields.
