Enviro C60I - Vent Termination Restrictions; Direct Vent

31

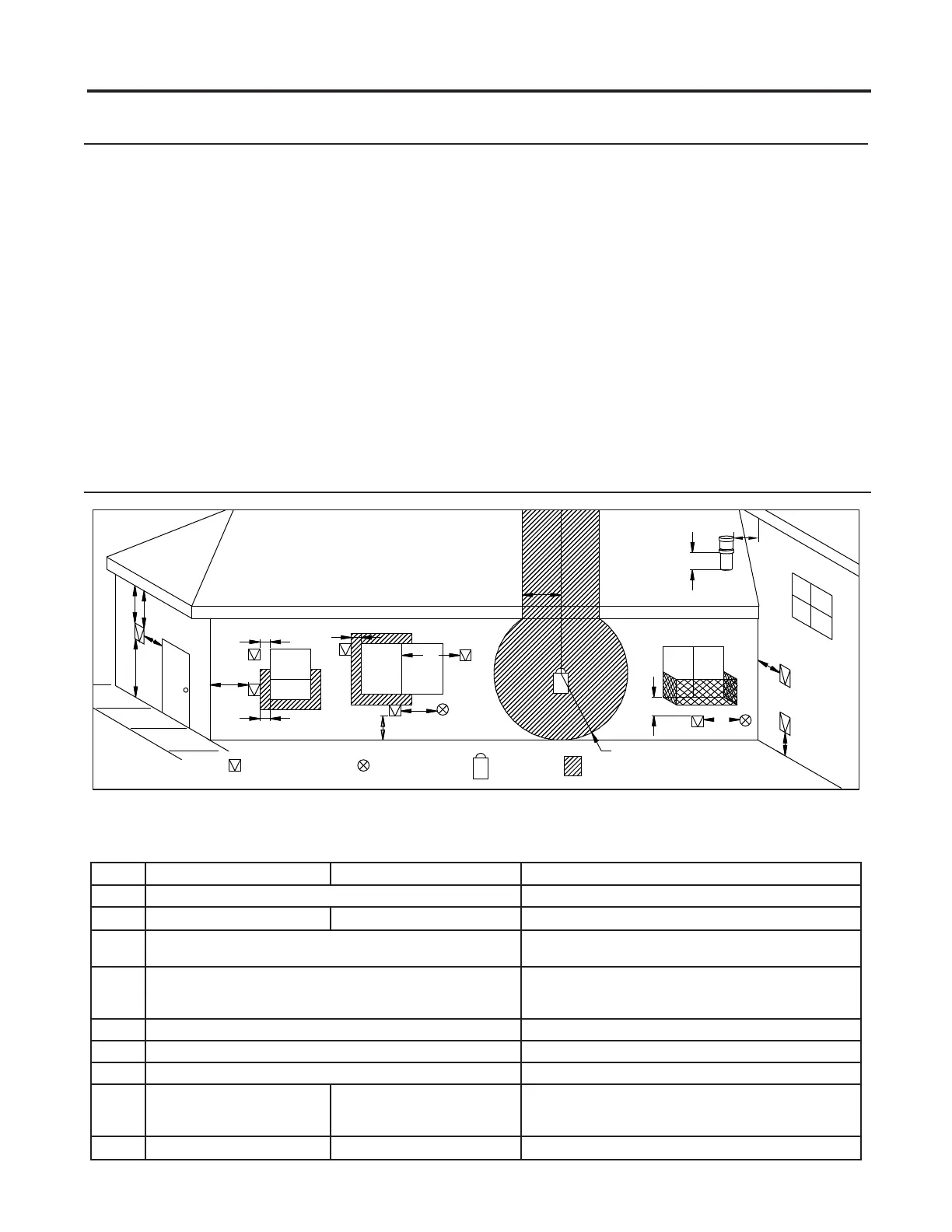

Figure 39. Vent Termination Restrictions, refer to Table 2
Initial Installation
QUALIFIED INSTALLERS ONLY
A
A
D
E
L
B
C
F
B
B
B
J
M
K
G
H
I
Openable
Fixed
Closed
Openable
Fixed
Closed
Termination Cap
Air Supply Inlet
Gas MeterG
G
Restriction Zone
(Termination not allowed)
N
O
Letter Canadian Installation
1
US Installation
2
Description
A 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.
B 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
C 12 in (30 cm)* Clearance from permanently closed window (to prevent
condensation).
D 24 in (60 cm)* Vertical clearance to ventilated sot located above the
terminal, within a horizontal distance of 2 ft (60 cm) from
center line of terminal.
E 18 in (45 cm)* Clearance to unventilated sot.
F 12 in (30 cm)* Clearance to outside corner.
G 12 in (30 cm)* Clearance to inside corner.
H 3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly
3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly*
Clearance to each side of center line extended above me-
ter/regulator assembly.
I 3 ft (91 cm) 3 ft (91 cm)* Radial clearance around service regulator vent outlet.
Table 3: Vent Termination Clearances
Vent teRmination RestRictions:
WARNING: This appliance has been designed to draw room air and discharge heated air
from the openings around the nishing edge. Blocking or modifying these openings in
any way can create hazardous situations. Only Approved Direct Vent may be used for
installation of the C60I.
The minimum vent installation for the C60I must include a 24” vertical section and 90° elbow
before being horizontally vented. Maximum vertical venting is 40’ (12.2 m). This model is
vented with co-axial 5” exhaust, 8” intake aluminum or stainless steel approved rigid vent leading into
a vertical or horizontal termination cap. The ue collar of this model will t inside of a standard 5”x 8”
vent and must be either correctly interlocked or fastened, with three screws directly to the vent collar.
Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been
properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must
be installed in the correct locations on the top of the C60I.
DiRect Vent:
