Epec 6107 - Page 15

Technical Manual &
Cabling Instructions
Page 15 / MAN000596
Connectors and Pin
Assignments
Epec Oy reserves all rights for improvements without prior notice
Epec Oy
Tiedekatu 6
FIN-60320 Seinäjoki
Postal address
PL/P.O.Box 194
FIN-60101 Seinäjoki,
Finland
Phone
+358-(0)20-7608 111
Fax
+358-(0)20-7608 110
Internet
www.epec.fi

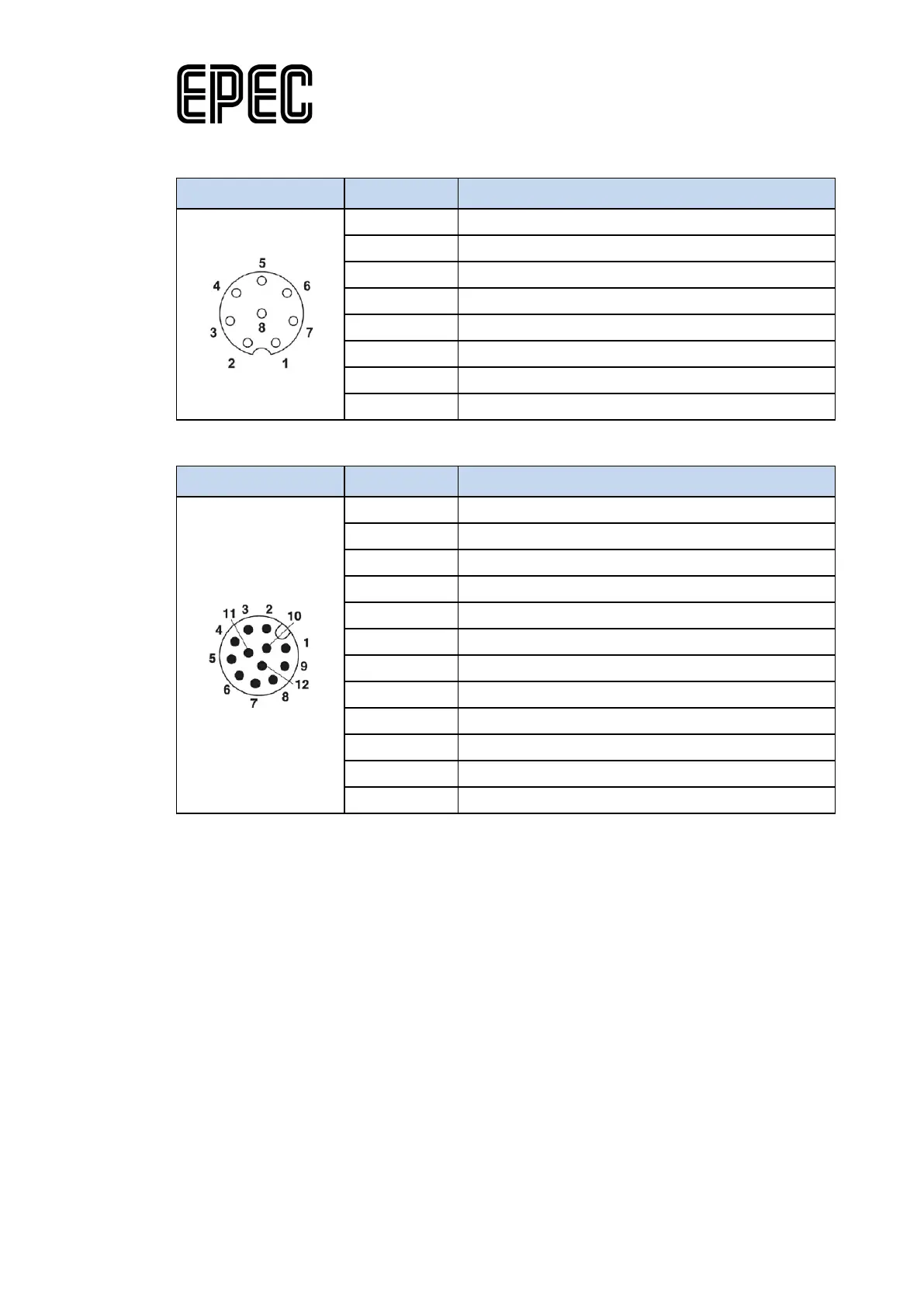

X3, M12 connector (8 pin FEM, ethernet)
Pin
Signal
1 RD2+
2 TD2+
3 TD2-
4 RD1-
5 TD1+
6 RD1+
7 RD2-
8 TD1-
X4, M12 connector (12 pin FEMALE, Display video signals), not supported in 1-3. release
Pin
Signal
1
EXTDISP_CLKP
2
EXTDISP_D0N
3
EXTDISP_D0P
4
EXTDISP_D1N
5
EXTDISP_D1P
6
GND
7
EXTDISP_D2N
8
EXTDISP_D2P
9
EXTDISP_CLKN
10
GND
11
GND
12
GND
