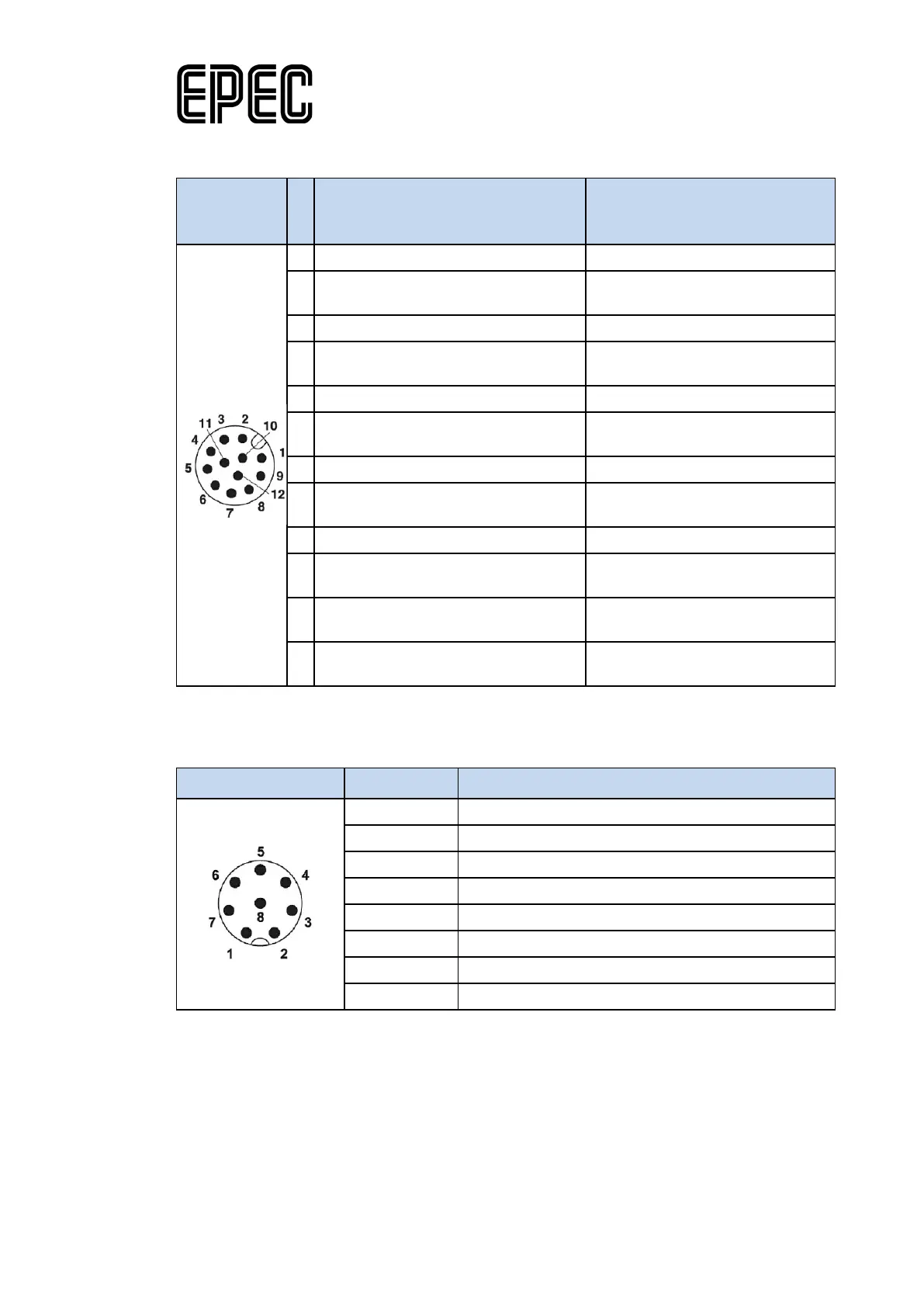

X5, M12 connector (12 pin MALE, 2xcamera)
Pin
Signal
(default
configuration for composite
video)
Signal
(optional hw configuration for s
-
video)
1 - CAMERA1_CHROMA_INPUT
2 -
CAMERA1_CHROMA_GND/SHIE
LD
3
CAMERA1_COMPOSITE_INPUT
CAMERA1_LUMA_INPUT
4 CAMERA1_COMPOSITE_GND/SHI
ELD
CAMERA1_LUMA_GND/SHIELD
5 - CAMERA2_CHROMA_INPUT
6
- CAMERA2_CHROMA_GND/SHIE
LD
7
CAMERA2_COMPOSITE_INPUT
CAMERA2_LUMA_INPUT
8
CAMERA2_COMPOSITE_GND/SHI
ELD
CAMERA2_LUMA_GND/SHIELD
9 +12 V (CAMERA1)* +12V (CAMERA1)*
1
0
+12 V (CAMERA2)* +12V (CAMERA2)*
1
1
GND (CAMERA1) GND (CAMERA1)
1
2
GND (CAMERA2) GND (CAMERA2)
* +12 V for cameras is not allowed when GSM/GPS is in use.
X6, M12 connector (8 pin MALE, Epec display power & communication signals), not
supported in 1-3. release
Pin
Signal
1 Serial data
2 Serial clock
3 GND
4 INT
5 GND
6 SPKR+
7 SPKR-
8 +12,2 V
