Epson EB-G7200W User Manual

The illustrations in this guide are for EB-G7900U (with the zoom lens
ELPLM08 attached).

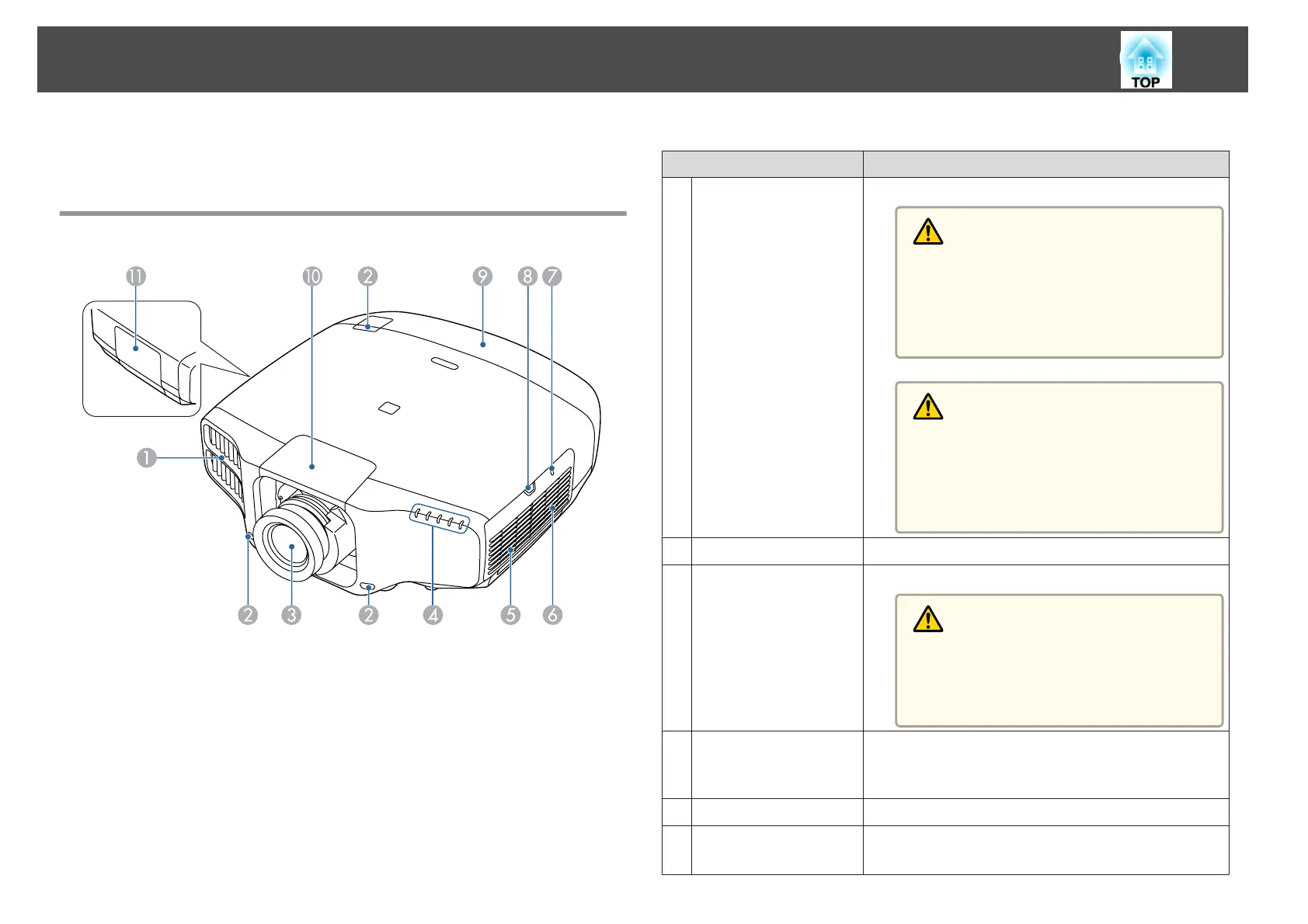

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Warning
Do not look into the vents. If the lamp explodes,
gases may escape and small fragments of glass may
be scattered which could cause an injury. Contact
a doctor if any fragments of broken glass are in‐
haled or get into the eyes or mouth.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
B
Remote receiver
Receives signals from the remote control.
C
Projection lens
Images are projected through here.
Caution
When shifting the lens, do not put your hands near
the lens unit. Your fingers may get caught between
the lens unit and the projector, and cause an in‐
jury.
D
Status indicators
The color of the indicators and whether they are flashing
or lit indicate the status of the projector.
s "Reading the Indicators" p.166
E
Speaker
Outputs audio.
F
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.191
Part Names and Functions
14

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
