Epson EB-G7200W User Manual

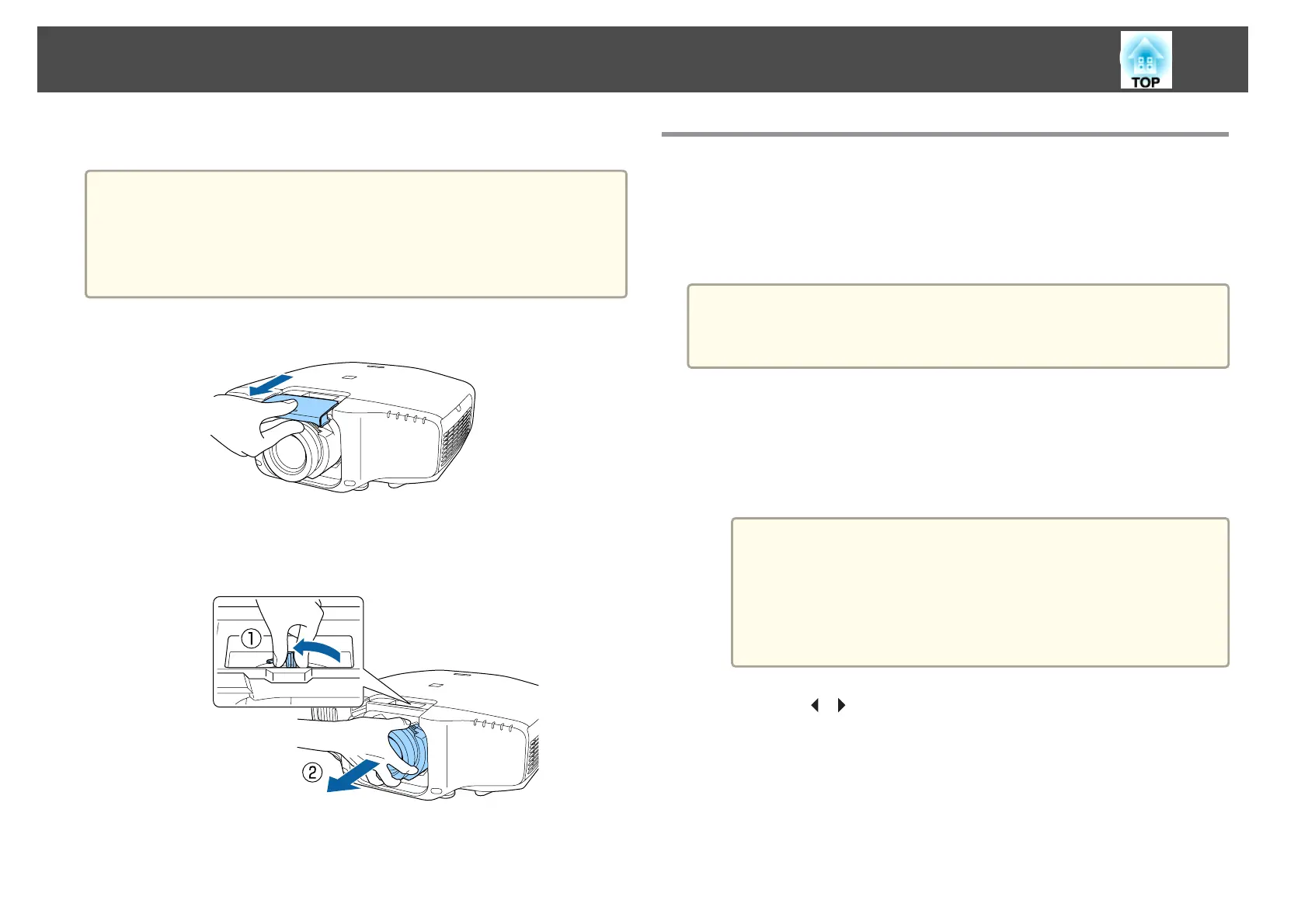

Removing
Attention
When replacing the lens unit, remove the power plug from the electrical
outlet first. If the lens shift has been done, move the lens position to the
home position before replacing the lens unit.
s "Adjusting the Position of the Projected Image (Lens Shift)" p.33
a
Pull the lens replacement cover straight out.
b
While holding the lens unit firmly, hold the lock lever and turn it
counterclockwise to unlock the lens unit.
Pull the lens unit straight out as it is released.
Installation Settings
Setting the direction
When installation is complete, set the Direction from the configuration
menu according to the vertical installation angle.
Attention
Make sure you set Direction correctly. If it is not set, the projector does not
cool down correctly, and the lamps may deteriorate.
a
Press the [Menu] button while projecting.
b
Select Direction from Extended.
c
Select Direction.
a
• For portrait installation, set Portrait Mode to On.
s Extended - Direction - Portrait Mode p.142
• For normal installation, set Portrait Mode to Off. When
Portrait Mode is On, you cannot set Direction.
• If the Portrait Mode setting is changed, the Power
Consumption and Brightness Level settings may change.
d
Use the [ ][ ] buttons to set the projector's installation angle.
Each time you press one of the buttons, the angle of tilt changes by
15 degrees. Set as close to the actual setup angle as possible.
Installing the Projector
28

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
