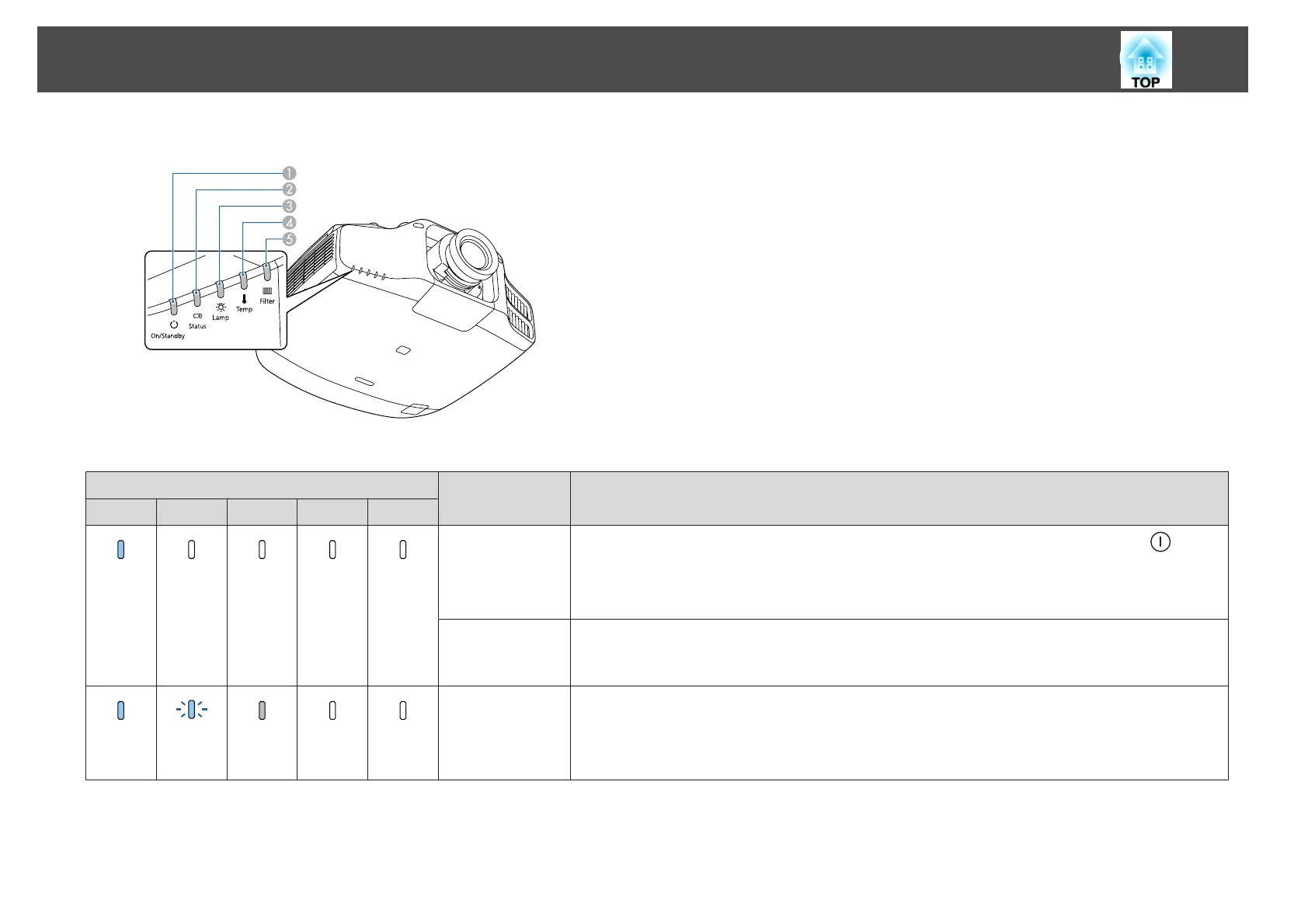

The projector is provided with the following five indicators that indicate the operating status of the projector.
A
Power indicator
Indicates the projector's status.
B
Status indicator
Indicates the projector's status.
C
Lamp indicator
Indicates the projection lamps status.
D
Temp indicator
Indicates the internal temperature status. This is normally turned off.
E
Filter indicator
Indicates the air filter status. This is normally turned off.
The following indicator status are used during regular operation.
Indicator Projector's Sta-
tus
Explanation
Power Status Lamp Temp Filter
Blue - On Off Off Off Off
Standby condition
Power is being supplied to the projector. In this status, you can start projecting by pressing the [
] button
on the remote control or control panel.
(Sometimes, when the power cord is unplugged, the power indicator remains lit for a short period, but this
is not a fault.)
Network monitor‐
ing status
The projector is being monitored and controlled over a network (when Standby Mode is set to
Communication On).
If the power cord is disconnected and then reconnected in this status, the power indicator flashes blue.
Blue - On
Blue -
Flashing
Status
varies
Off Off
Warm-up status This is the status immediately after turning on the projector. Warm-up takes approximately 30 seconds
after the lamp turns on.
The [t] button is disabled during warm-up.
Reading the Indicators
166

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
