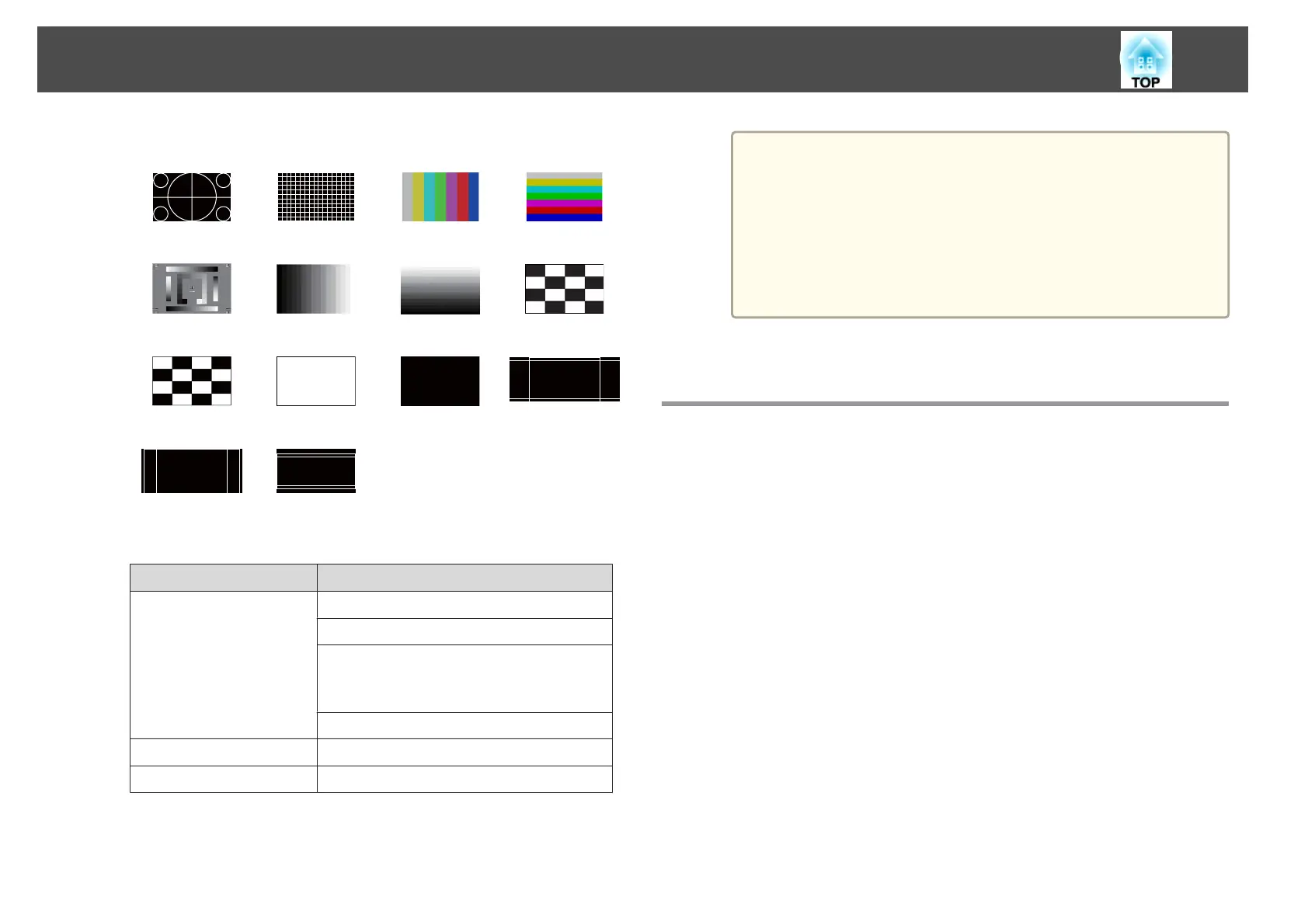

Standard Cross-hatching
W
Color Bars V Color Bars H
Grayscale Gray Bars V Gray Bars H Checkerboard
1
Checkerboard
2
White Black 16:10 Aspect
Frame
16:9 Aspect
Frame
4:3 Aspect
Frame
In addition to lens operations, the following image adjustments can
be made while the test pattern is being displayed.
Top Menu Name Sub Menu/Items
Color Mode s p.87
White Balance
Advanced
- Gamma
*1
s p.93
- RGBCMY s p.92
Reset
Settings
Geometric Correction s p.62
Extended
Multi-Projection
*2
s p.102
*1 Except for custom settings of gamma
*2 Except for Scale, Color Uniformity, and Black Level
a
• To set menu items that cannot be set while the test pattern is
being displayed or to fine-tune the projected image, project an
image from the connected device.
• During image adjustment, press the [[][]] [Page] buttons on
the remote control to change the test pattern.
• You can also select a test pattern from the Configuration
menu.
s Settings - Test Pattern p.140
c
Press the [Esc] button to close the test pattern.
Adjusting the Position of the Projected Image
(Lens Shift)
The lens can be shifted to adjust the position of the projected image, for
example, when the projector cannot be installed directly in front of the
