Epson EB-G7200W User Manual

Connecting an HDBaseT Transmitter

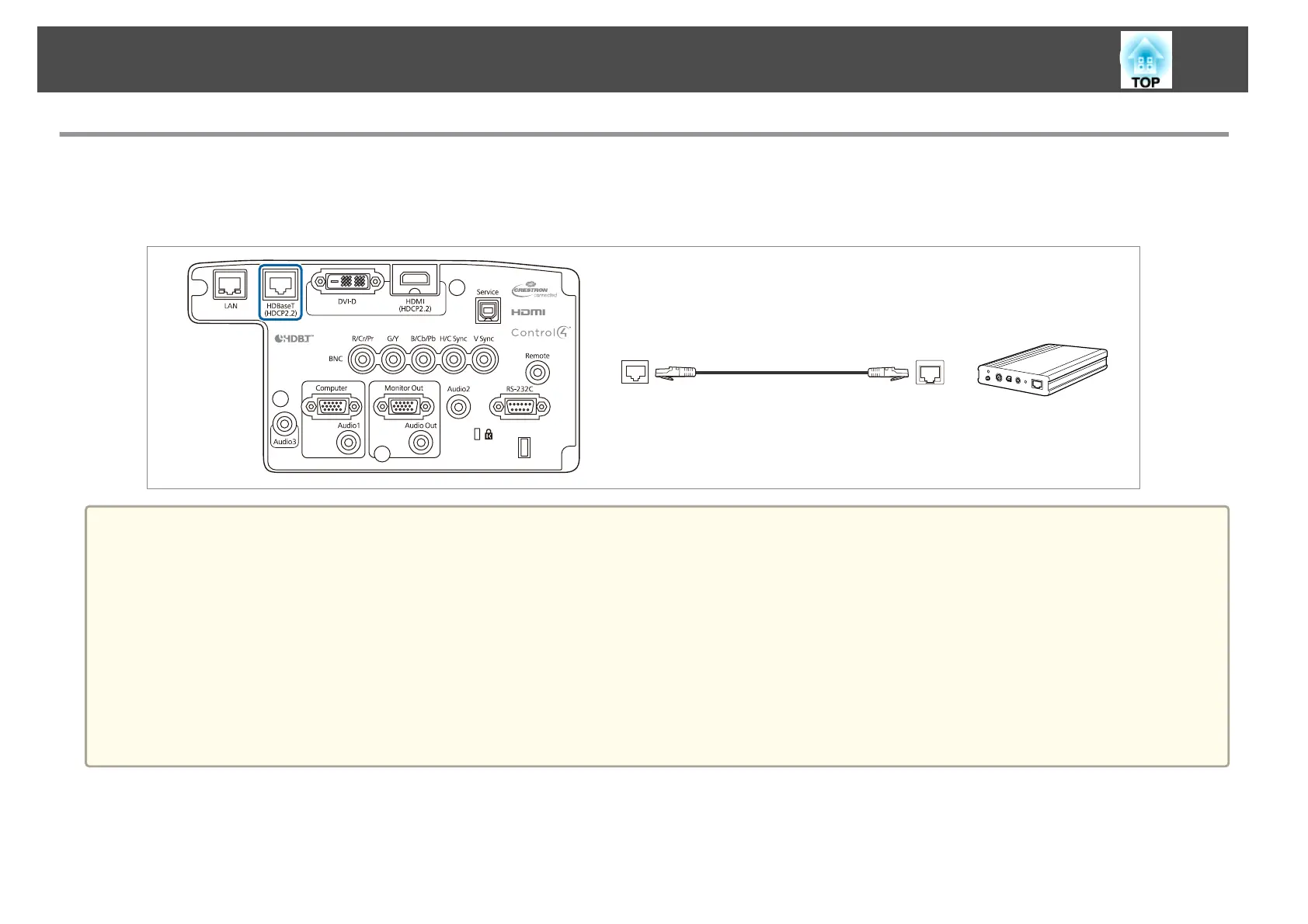

Connect the optional HDBaseT Transmitter with a commercially available 100BASE-TX LAN cable.
s "Optional Accessories" p.217
HDBaseT
a
• Make sure you read the User's Guide supplied with the HDBaseT Transmitter carefully before use.
• For the LAN cable, use an HDBaseT Alliance-recommended STP cable (straight) of category 5e or higher. However, operation is not guaranteed for all
input/output devices and environments.
• When connecting or disconnecting the LAN cable, make sure you turn off the power for the projector and the HDBaseT Transmitter.
• When performing Ethernet communication or serial communication, or when using the wired remote control via HDBaseT port, set Control Communications
to On from the Configuration menu.
s Extended - HDBaseT - Control Communications p.142
Note that when Control Communications is set to On, the projector's LAN port, RS-232C port, and Remote port are disabled.
• When using the Extron XTP transmitter or switcher, connect to the projector's HDBaseT port. Set Extron XTP to On (Standby Mode and Control
Communications are automatically set to On).
s Extended - HDBaseT - Extron XTP p.142
Connecting Equipment
51

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
