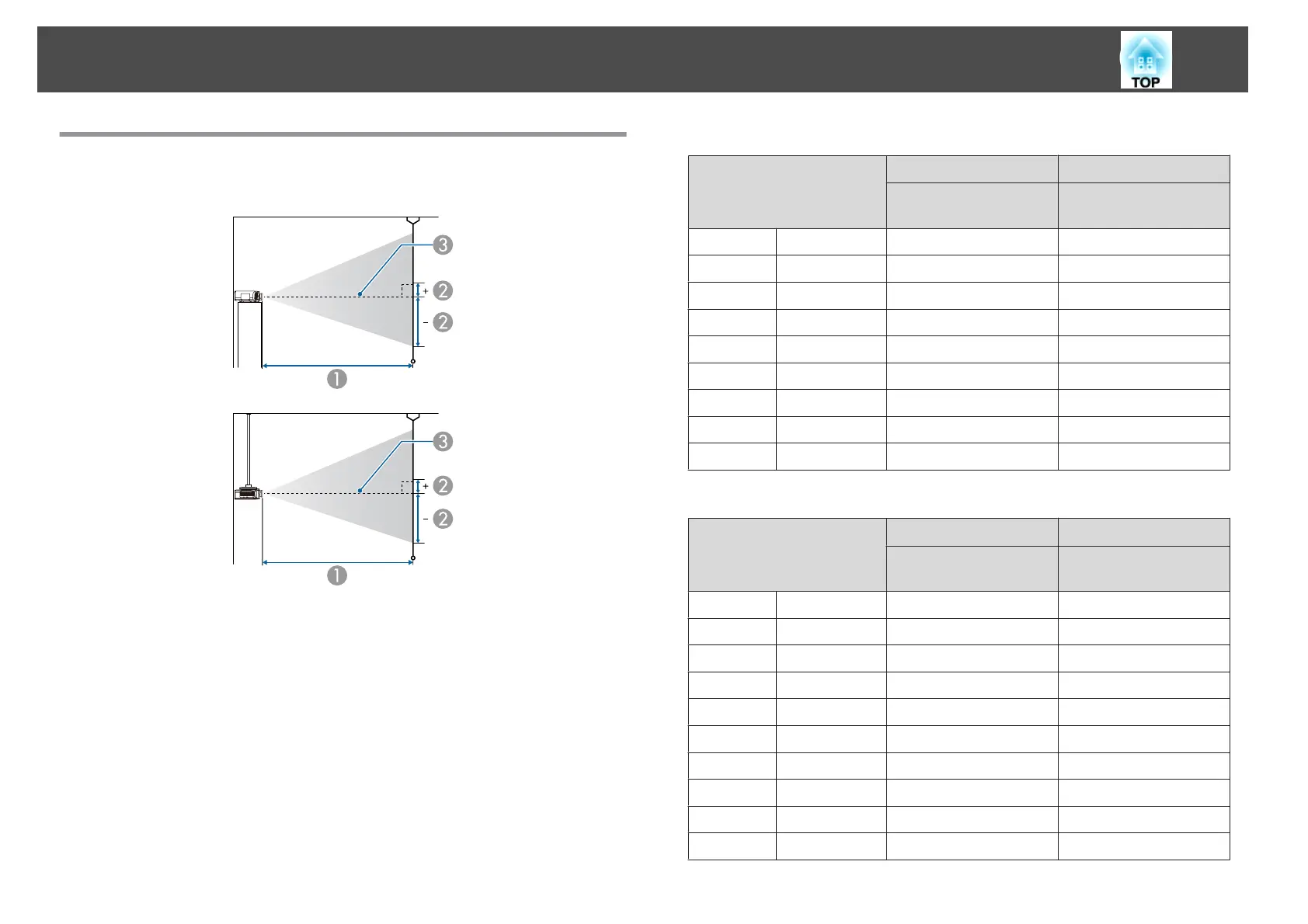

Epson EB-G7200W User Manual

Projection Distance (For EB-G7805/EB-G7800/EB-
G7100)
A
Projection distance
B
is the distance from the center of the lens to the base of the screen. This
changes depending on the setting for vertical lens shift.
C
Center of lens
ELPLM08
This section shows the projection distances for models equipped with
standard lenses.
Unit: cm
4:3 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Top to Bottom
50" 102x76 147 - 239 -82 - +6
60" 122x91 178 - 288 -98 - +7
80" 163x122 239 - 385 -131 - +9
100" 203x152 299 - 482 -164 - +12
120" 244x183 360 - 580 -197 - +14
150" 305x229 452 - 726 -246 - +17
200" 406x305 604 - 969 -328 - +23
250" 508x381 756 - 1213 -410 - +29
300" 610x457 908 - 1456 -492 - +35
Unit: cm
16:9 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Top to Bottom
46" 102x57 148 - 240 -73 - +15
50" 111x62 161 - 261 -79 - +17
60" 133x75 194 - 314 -95 - +20
80" 177x100 260 - 420 -126 - +27
100" 221x125 327 - 526 -158 - +33
120" 266x149 393 - 632 -189 - +40
150" 332x187 493 - 791 -237 - +50
200" 443x249 658 - 1057 -316 - +67
250" 553x311 824 - 1322 -395 - +83
275" 609x342 907 - 1454 -434 - +92
Screen Size and Projection Distance
228

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
