Epson EB-G7200W User Manual

d
Press the [Menu] button to finish making settings.

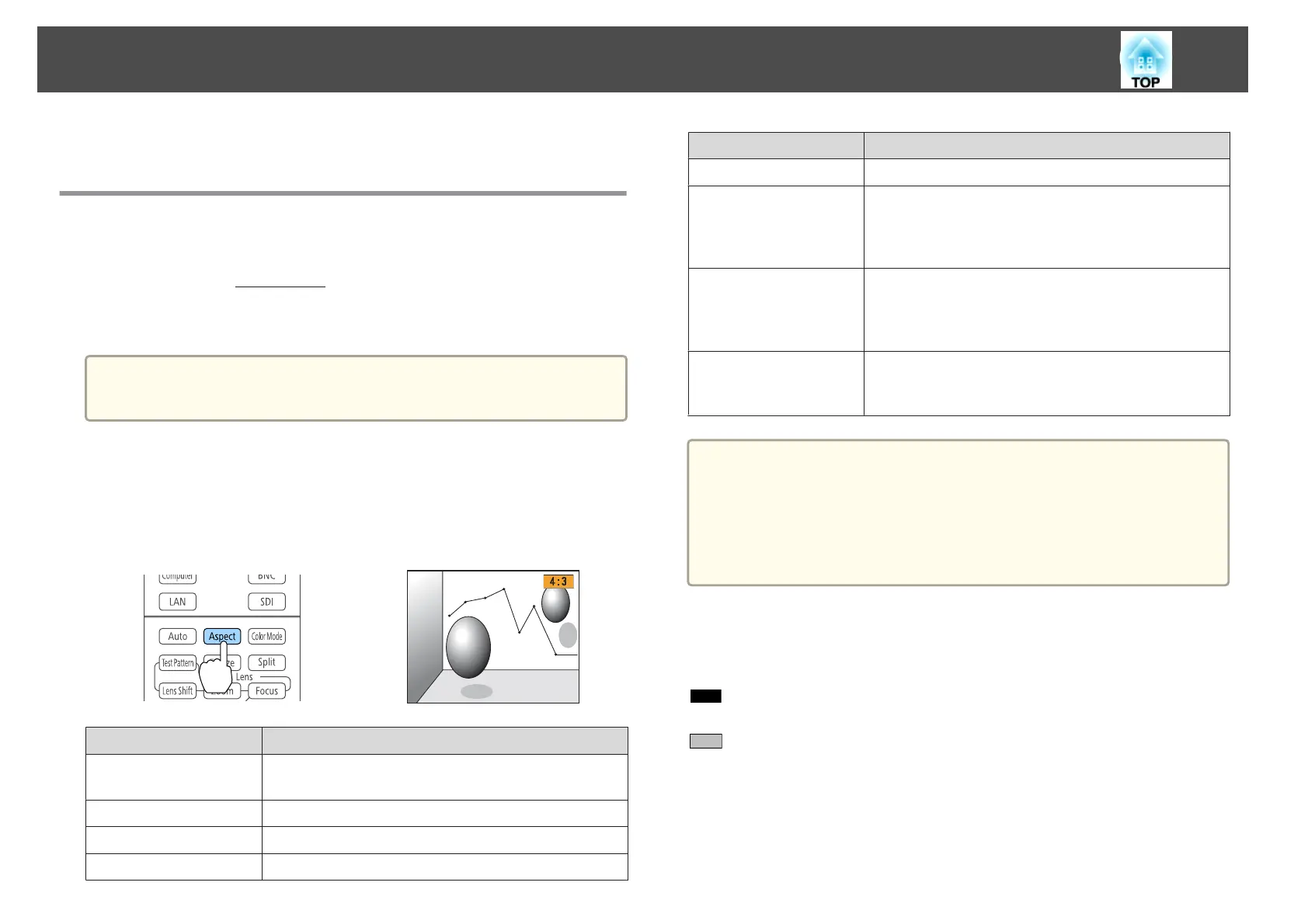

Changing the Aspect Ratio of the Projected
You can change the Aspect Ratio g of the projected image to suit the type,
the ratio of height and width, and the resolution of the input signals.
Available aspect modes vary depending on the Screen Type currently set.
a
Set the Screen Type before changing the aspect ratio.
s "Screen Settings" p.30
Changing methods
Each time you press the [Aspect] button on the remote control, the aspect
mode name is displayed on the screen and the aspect ratio changes.
Remote control
Aspect Mode Explanation
Auto
Projects in an appropriate aspect ratio based on
information from the signal being input.
Normal
Projects while retaining the aspect ratio of the input image.
4:3
Projects at an aspect ratio of 4:3.
16:9
Projects at an aspect ratio of 16:9.
Aspect Mode Explanation
Full
Projects at the full size of the projected screen.
H-Zoom
Projects by enlarging the input image to the full width of
the projected screen while retaining the aspect ratio. Areas
that exceed the edges of the projected screen are not
projected.
V-Zoom
Projects by enlarging the input image to the full height of
the projected screen while retaining the aspect ratio. Areas
that exceed the edges of the projected screen are not
projected.
Native
Projects to the center of the projected screen at the
resolution of the input image. Areas that exceed the edges
of the projected screen are not projected.
a
• You can also set the aspect ratio from the Configuration menu.
s Signal - Aspect p.139
• If parts of the computer image are missing, set the Resolution
setting to Wide or Normal from the Configuration menu, according
to the resolution of the computer.
s Signal - Resolution p.139
The aspect mode changes as shown in the tables below.
The following colors in screen images in the tables indicate areas that are
not displayed.
: The area where the image is not displayed depending on the screen
type setting.
: The area where the image is not displayed depending on the aspect
mode setting.
EB-G7905U/EB-G7900U/EB-G7500U/EB-G7400U/EB-G7200W/EB-G7000W
Screen type setting: 16:10
Adjusting Projected Images
89

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
