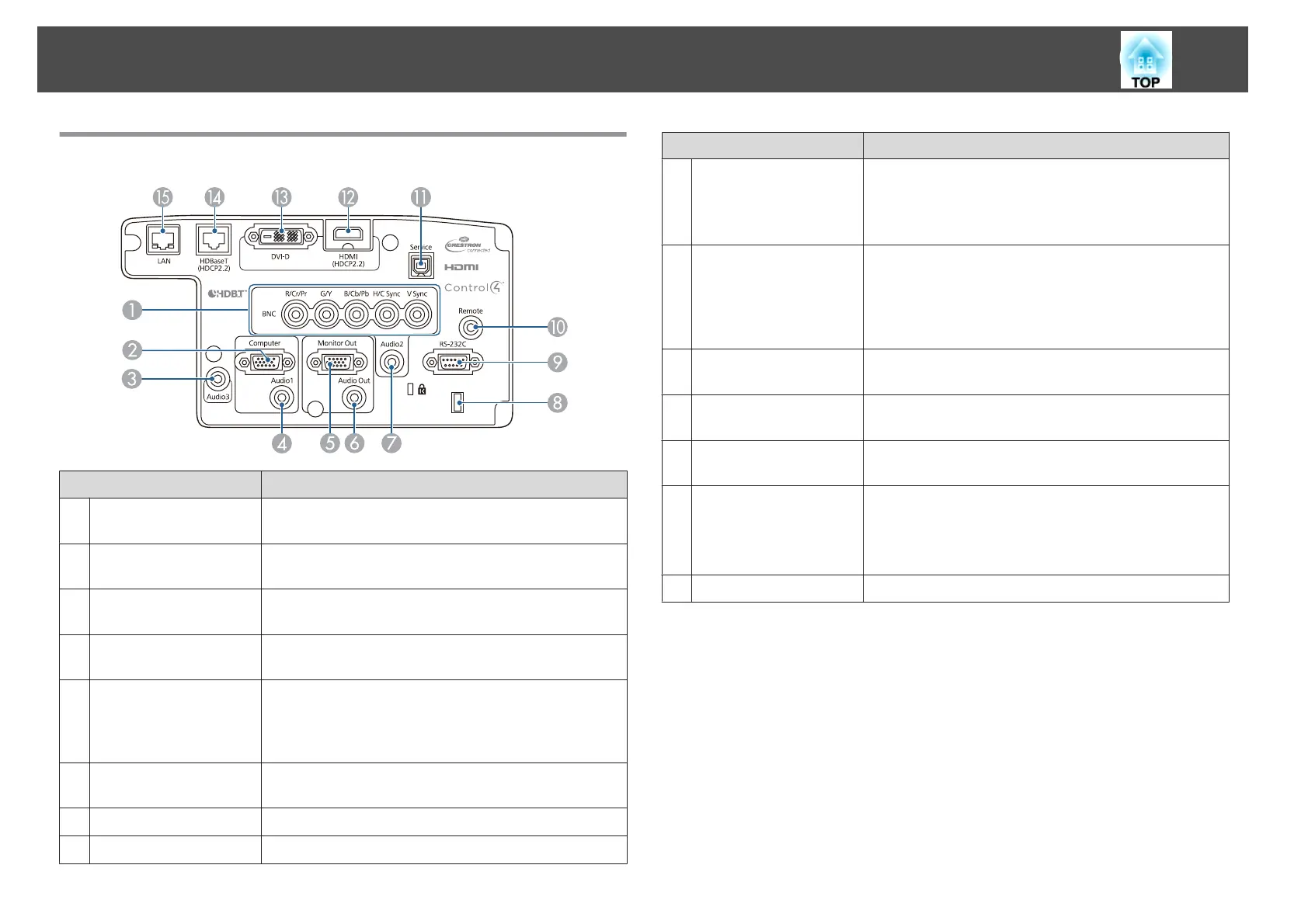

Interface
Name Function
A
BNC port
For analog RGB signals from a computer and component
video signals from other video sources.
B
Computer port
For analog RGB signals from a computer and component
video signals from other video sources.
C
Audio3 port
Inputs audio from equipment connected to the HDMI
port or the DVI-D port.
D
Audio1 port
Inputs audio from equipment connected to the Computer
port.
E
Monitor Out port
Outputs to an external monitor the analog signal from the
computer connected to the Computer port or the BNC
port. You cannot output signals input from other ports or
component video signals.
F
Audio Out port
Outputs audio from the currently projected image to an
external speaker.
G
Audio2 port
Inputs audio from equipment connected to the BNC port.
H
Cable holder
Run a commercially available cable tie to secure cables.
Name Function
I
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.210
J
Remote port
Connects the optional remote control cable set and inputs
signals from the remote control. When the remote control
cable is plugged into the Remote port, the remote receiver
on the projector is disabled.
s "Optional Accessories" p.217
K
Service port
This port is used by maintenance personnel to control the
projector. This should not normally be used.
L
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
M
DVI-D port
Inputs the computer DVI-D signals.
N
HDBaseT port
Connects a LAN cable to the optional HDBaseT
Transmitter.
s "Connecting an HDBaseT Transmitter" p.51
s "Optional Accessories" p.217
O
LAN port
Connects a LAN cable to connect to a network.
Part Names and Functions
16
