Epson EB-G7200W User Manual

α in the figure above is the maximum angle in which the projector can
move. See the table below for detailed values. (Approximate value when
projecting at maximum zoom. ELPLR04 does not support lens shift.)
Lens type Vertical lens shift:
Home position
Ș
Side view
Vertical lens shift: Top
Ș
Side view
ELPLM08 30˚ 12˚
ELPLX01 - -
ELPLU03 33˚ *
ELPLU04/ELPLU02 31˚ 6˚
ELPLR04 31˚ -
ELPLW05 31˚ 10˚
ELPLW06/ELPLW04 28˚ 13˚
ELPLM09/ELPLS04 26˚ 14˚
ELPLM10/ELPLM06 24˚ 16˚
ELPLM11/ELPLM07 23˚ 18˚
ELPLL08/ELPLL07 23˚ 19˚
*Cannot be corrected accurately. Move the lens position to the home position.

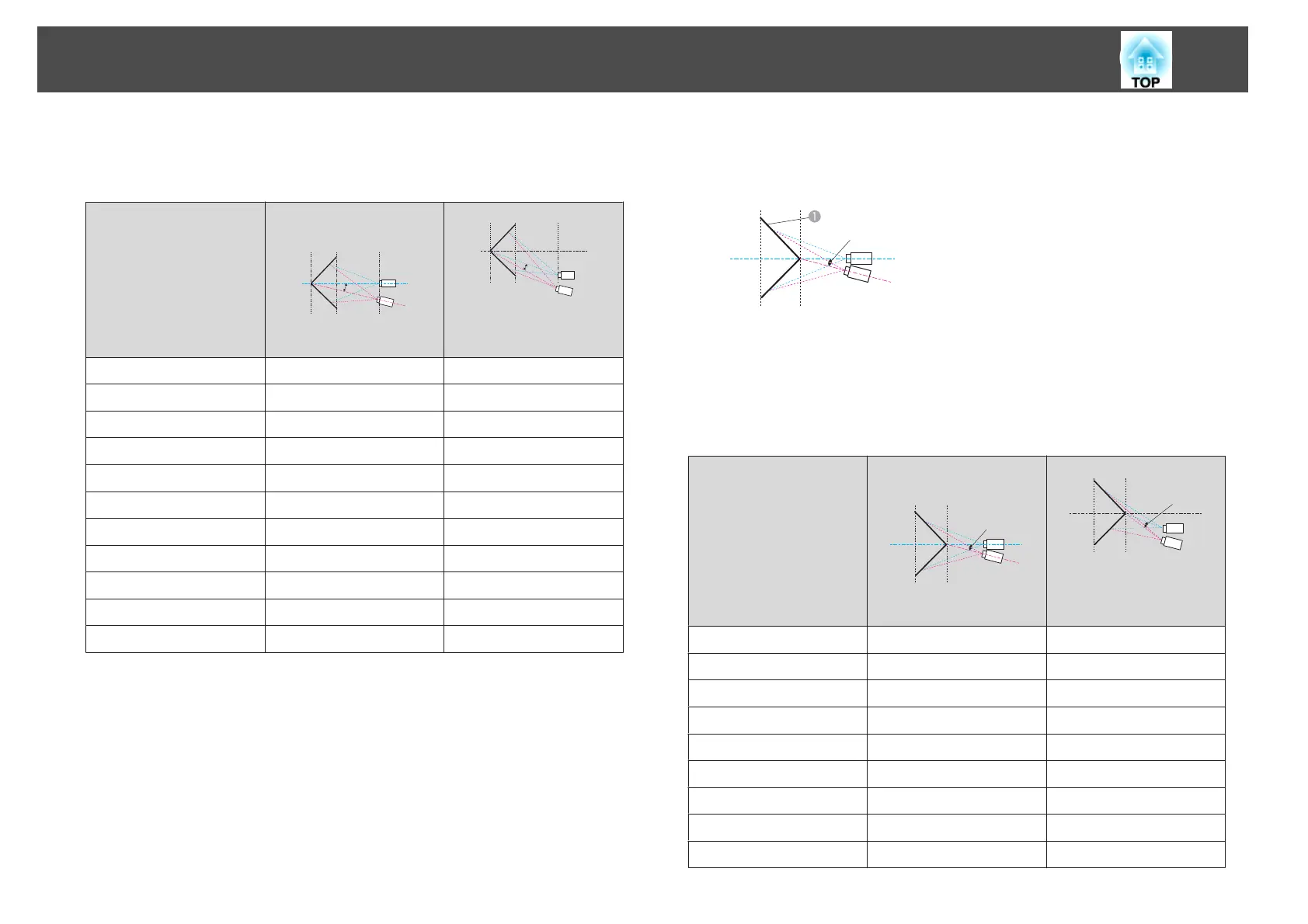

Convex vertical corner correction (correction to horizontal symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Side view
α in the figure above is the maximum angle in which the projector can
move. See the table below for detailed values. (Approximate value when
projecting at maximum zoom. ELPLR04 does not support lens shift.)
Lens type Vertical lens shift:
Home position
Ș
Side view
Vertical lens shift: Top
Ș
Side view
ELPLM08 19˚ 5˚
ELPLX01 - -
ELPLU03 9˚ *
ELPLU04/ELPLU02 14˚ *
ELPLR04 15˚ -
ELPLW05 16˚ *
ELPLW06/ELPLW04 20˚ 7˚
ELPLM09/ELPLS04 22˚ 12˚
ELPLM10/ELPLM06 22˚ 15˚
Adjusting Projected Images
78

Epson EB-G7200W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	50 - 300 \
Projection distance (tele)	2.5 - 15.1 m
Projection distance (wide)	1.5 - 9.4 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Lamp power	400 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Service life of light source (portrait mode)	2000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Analog signal format system	-
Supported graphics resolutions	1280 x 800 (WXGA)
Throw ratio	1.44 - 2.33:1
Focal length range	24 - 38.2 mm
Aperture range (F-F)	1.7 - 2.3
Vertical lens shift range	-67 - 67 %
Horizontal lens shift range	-30 - 30 %
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	39 dB
Country of origin	China
Noise level (economic mode)	31 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	572 W
Power consumption (PowerSave)	477 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	2425 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	472 mm
Width	525 mm
Height	189 mm
Weight	12700 g
Package depth	765 mm
Package width	680 mm
Package height	290 mm
Package weight	20740 g
